C32B DE1675
- Bore
- 5.7 in / 145 mm
- Stroke
- 6.4 in / 163 mm
- Displacement
- 1959 in³ / 32 l

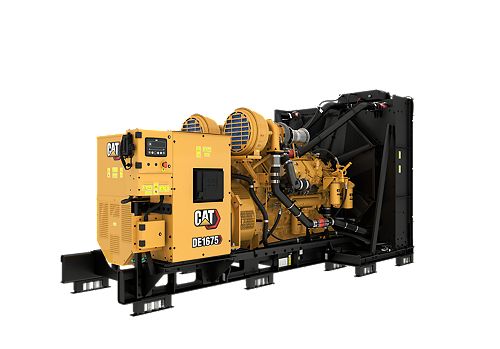

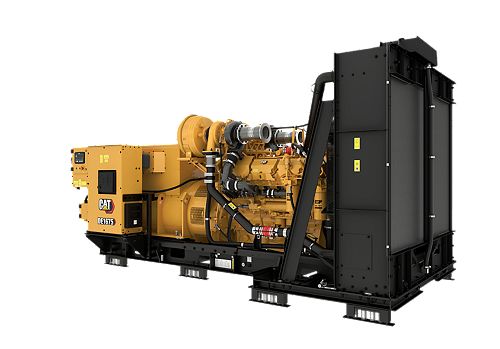

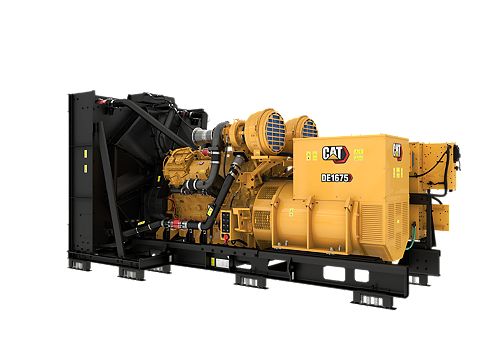

Producing reliable power at 1675 kVA at 50 Hz, the Caterpillar DE1675 diesel generator set is made to meet the needs of your standby and mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.
| Generator Set Specifications | |
|---|---|
| Standby Rating | 1675 kVA |
| Emissions/Fuel Strategy | Low BSFC |
| Voltage | 400 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Mission Critical |
| Maximum Rating | 1675 kVA |
| Minimum Rating | 1675 kVA |
| Engine Specifications | |
|---|---|
| Engine Model | C32B TA, V12, 4-Stroke Diesel |
| Bore | 5.7 in / 145 mm |
| Stroke | 6.4 in / 163 mm |
| Displacement | 1959 in³ / 32 l |
| Compression Ratio | 14:1 |
| Aspiration | TA |
| Fuel System | EUI |
| Governor Type | ADEM™ A5 |
| Generator Set Dimensions | |
|---|---|
| Length - Minimum | 185.43 in / 4709 mm |
| Length - Maximum | 185.43 in / 4709 mm |
| Width - Minimum | 89.72 in / 2279 mm |
| Width - Maximum | 89.72 in / 2279 mm |
| Height - Minimum | 100.43 in / 2551 mm |
| Height - Maximum | 105.71 in / 2685 mm |
| Dry Weight - Genset (minimum) | 18832 lb / 8542 kg |
| Dry Weight - Genset (maximum) | 20155 lb / 9142 kg |
