C32B
- Displacement
- 1959 in³ / 32.1 l
- Bore
- 5.7 in / 145 mm
- Stroke
- 6.38 in / 162 mm

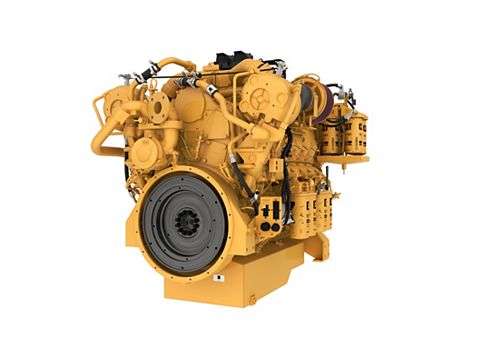

The Cat® C32B engine is a powerful and versatile solution for commercial and high performance applications, offering a rated power of 1053bkW or 1211bkW. It meets stringent emissions standards, including IMO II, IMO II/III, and U.S. EPA Tier 4. The Cat C32B engine has an optimized design to enhance power density, deliver more power without significantly increasing size or weight. This combination of high-power output and strict emissions compliance makes the Cat C32B engine an excellent choice.
| Power Rating | |
|---|---|
| Power Range | 1053 - 1211 |
| Generator Set Specifications | |
|---|---|
| Frequency | 50 / 60 |
| Engine Specifications | |
|---|---|
| Emissions | IMO II, IMO III, IMO II/III, U.S. EPA Tier 4 |
| Displacement | 1959 in³ / 32.1 l |
| Rated Engine Speed | 1500 / 1800 |
| Configuration | V 12, 4-Stroke Cycle Diesel |
| Governor | Electronic (ADEM VI) |
| Aspiration | Twin Turbocharged - Aftercooled |
| Flywheel Housing | SAE No. 0 |
| Rotation from Flywheel End | Counterclockwise |
| Bore | 5.7 in / 145 mm |
| Stroke | 6.38 in / 162 mm |
| Oil Change Interval | 750 hour |
| Cooling | Heat Exchanger or Keel Cooled |
| Dimensions & Weights | |
|---|---|
| Width - Engine | 61 in / 1550 mm |
