XQP60 EU Stage V
- Width
- 45 in / 1142 mm
- Height
- 69.9 in / 1775 mm
- Length
- 104.2 in / 2646 mm

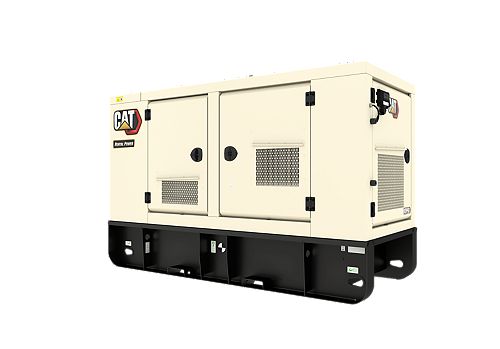

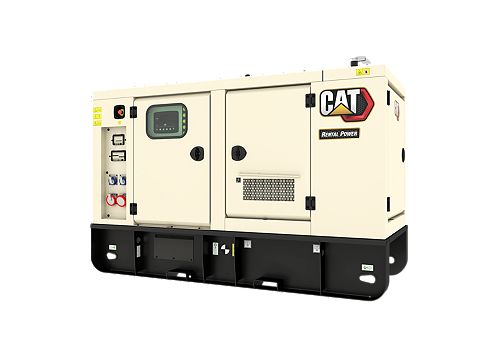

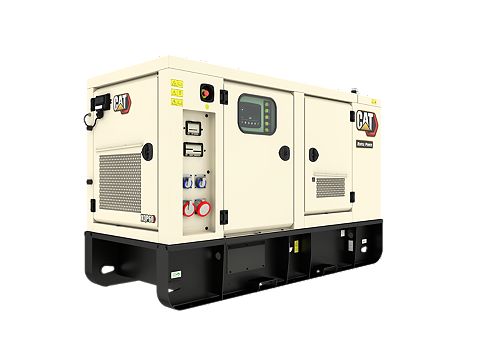

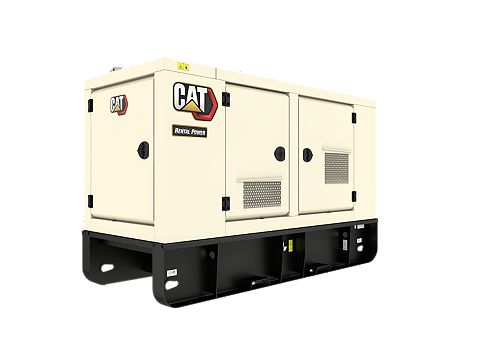

This XQP60 generator set meets the EU Stage V emission standard. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.
| Generator Set | |
|---|---|
| Rating Prime | 60 kVA |
| Frequency | 50/60 Hz |
| Voltage | 220 - 480 V |
| Engine | |
|---|---|
| Engine | Cat C3.6 |
| Fuel | Diesel |
| Dimensions | |
|---|---|
| Width | 45 in / 1142 mm |
| Height | 69.9 in / 1775 mm |
| Length | 104.2 in / 2646 mm |
| Weight - With Lube Oil and Coolant | 3918 lb / 1777 kg |
| Fuel Consumption EU Stage V | |
|---|---|
| 100% Load 50Hz | 3.77 gal/hr / 14.3 l/hr |
| 100% Load 60Hz | 3.46 gal/hr / 13.1 l/hr |
| 75% Load 50Hz | 2.76 gal/hr / 10.5 l/hr |
| 75% Load 60Hz | 2.74 gal/hr / 10.4 l/hr |
| 50% Load 50Hz | 1.94 gal/hr / 7.3 l/hr |
| 50% Load 60Hz | 1.98 gal/hr / 7.5 l/hr |
| Noise rating (with enclosure) EU Stage V | |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 93 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 97 dB(A) |
| Fuel Consumption EU Stage IIIA | |
|---|---|
| 100% Load 50Hz | 4.4 gal/hr / 16.5 l/hr |
| 75% Load 50Hz | 3.3 gal/hr / 12.4 l/hr |
| 75% Load 60Hz | 3.8 gal/hr / 14.3 l/hr |
| 50% Load 60Hz | 2.6 gal/hr / 9.8 l/hr |
| 50% Load 50Hz | 2.2 gal/hr / 8.3 l/hr |
| 100% Load 60Hz | 5 gal/hr / 18.8 l/hr |
| Noise rating (with enclosure) EU Stage IIIA | |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | ??.? dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | ??.? dB(A) |
