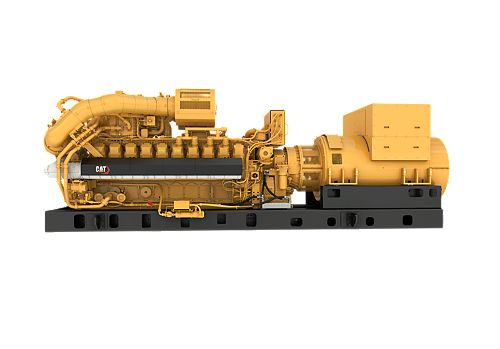

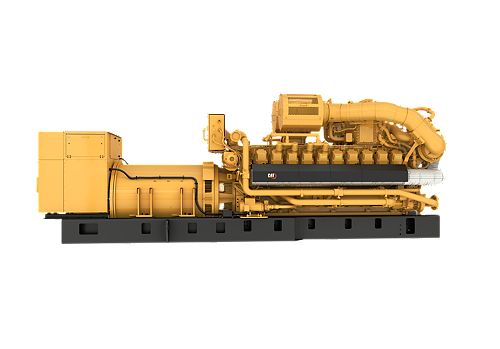

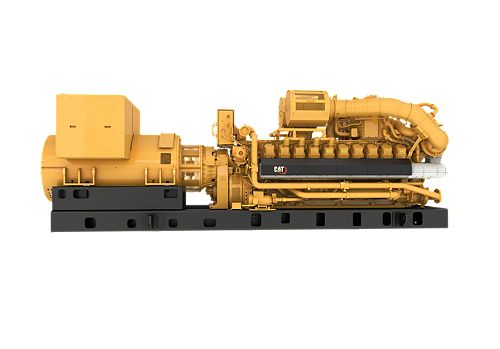

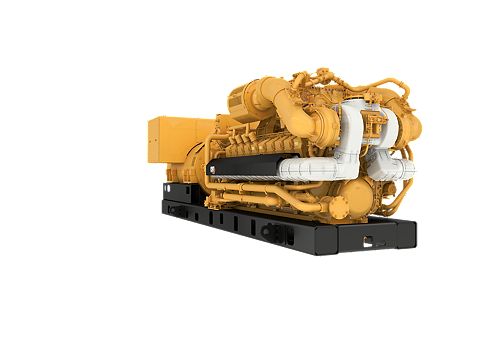

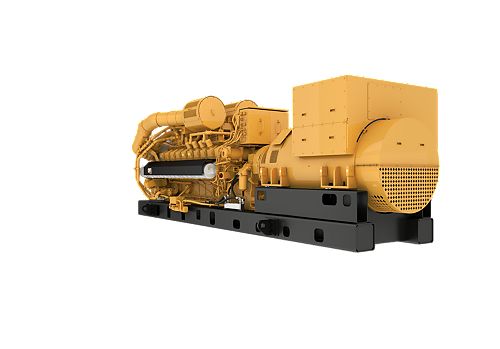

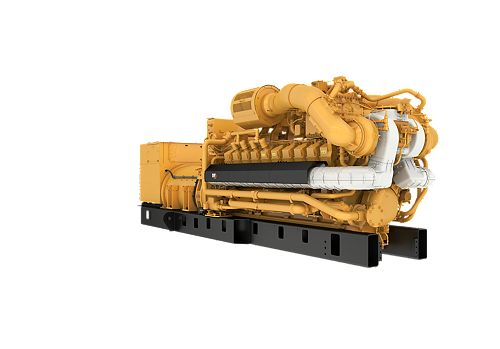

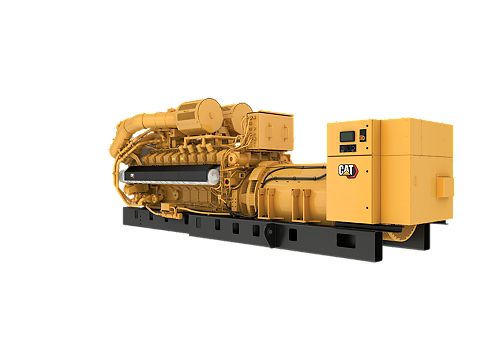

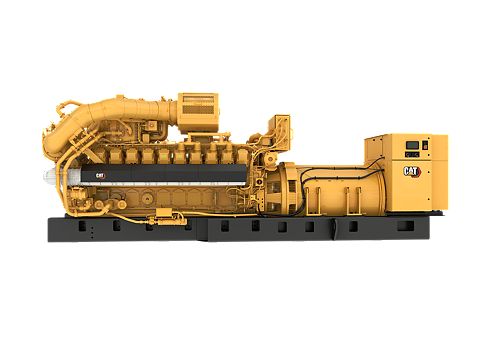

G3520 with FAST RESPONSE
- Displacement
- 5956 in³ / 97.6 l
- Bore
- 6.7 in / 170 mm
- Stroke
- 8.5 in / 215 mm
Caterpillar is leading the power generation marketplace with Fast Response generator sets engineered to deliver unmatched performance, reliability, and cost-effectiveness.
| Generator Set Specifications | |
|---|---|
| Gas Standby Rating | 3120 ekW @ 1.0pf |
| Fuel Type | Natural Gas, Hydrogen Blend (up to 5%) |
| Emissions/Fuel Strategy | U.S. EPA Stationary Non-Emergency Certified |
| RPM | 1800 rpm |
| Frequency | 50 / 60 Hz |
| Maximum Electrical Efficiency | 39.6% |
| Compression Ratio | 10.2 |
| Frequency | 50/60 Hz |
| Speed | 1800 RPM |
| Engine Specifications | |
|---|---|
| Engine Model | G3520 |
| Displacement | 5956 in³ / 97.6 l |
| Aspiration | TA |
| Bore | 6.7 in / 170 mm |
| Stroke | 8.5 in / 215 mm |
| Compression Ratio | 10.2:1 |
| Generator Set Dimensions | |
|---|---|
| Length | 260 in / 6597 mm |
| Width | 86 in / 2188 mm |
| Height | 99 in / 2509 mm |
| Weight | 48444 lb / 21974 kg |
