C18
- Maximum Power
- 800 hp / 597 kW
- Maximum Torque
- 2736 lb-ft @ 1300 rpm / 3710 Nm @ 1300 rpm
- Minimum Power
- 755 hp / 563 kW

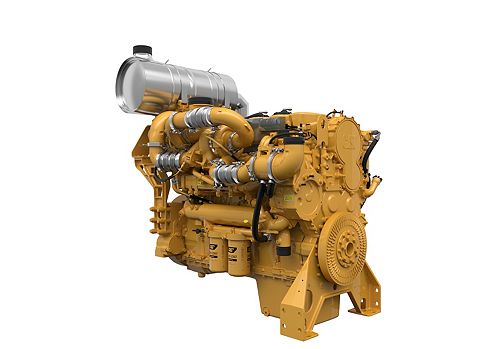

This Cat® C18 engine variant equipped with a serial twin turbocharged-aftercooled system is capable of achieving power between 563-597 kW (755-800 hp) @ 1800 rpm while meeting EU Stage V emission standards.
| Power Rating | |
|---|---|
| Maximum Power | 800 hp / 597 kW |
| Maximum Torque | 2736 lb-ft @ 1300 rpm / 3710 Nm @ 1300 rpm |
| Rated Speed | 1800 |
| Minimum Power | 755 hp / 563 kW |
| Emission Standards | |
|---|---|
| Emissions | EU Stage V |
| General | |
|---|---|
| Number of Cylinders | 6 vertical in-line |
| Displacement | 1104.5 in³ / 18.1 l |
| Aspiration | Series Twin Turbocharged Aftercooled (TTA) |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Combustion System | Direct Injection (MEUI) |
| Compression Ratio | 16.0:1 |
| Aftertreatment | DOC+DPF+SCR or DOC |
| Rotation from Flywheel End | Anti-clockwise |
| Cooling System | Liquid |
| Engine Dimensions* | |
|---|---|
| Length | 61 in / 1545 mm |
| Width | 45 in / 1141 mm |
| Height | 53 in / 1334 mm |
| Dry Weight | 3875 lb / 1758 kg |
| Wet Weight | 3945 lb / 1790 kg |
| Disclaimer | |
|---|---|
| Note 1 | *Final dimensions dependent on selected options |
