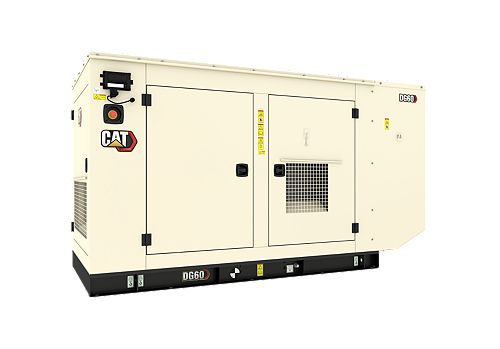

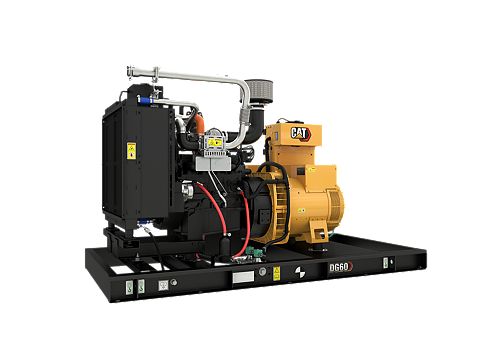

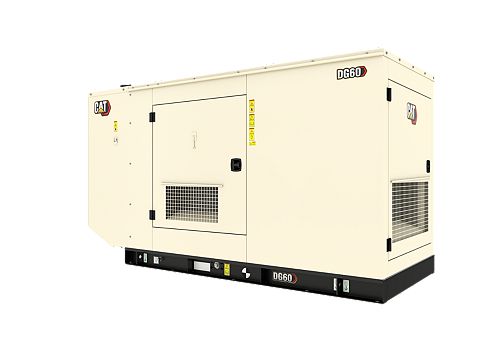

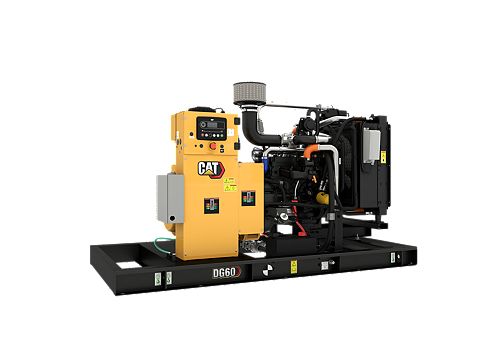

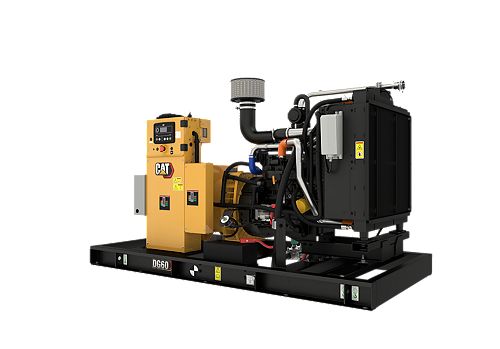

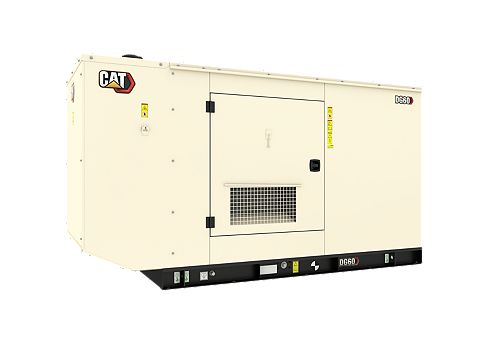

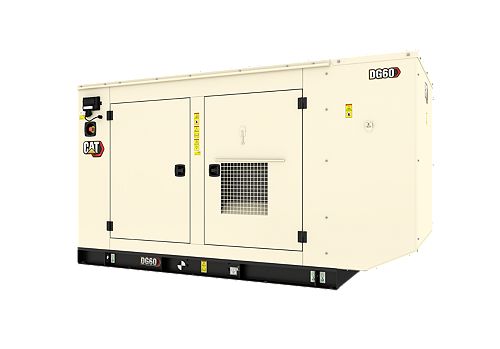

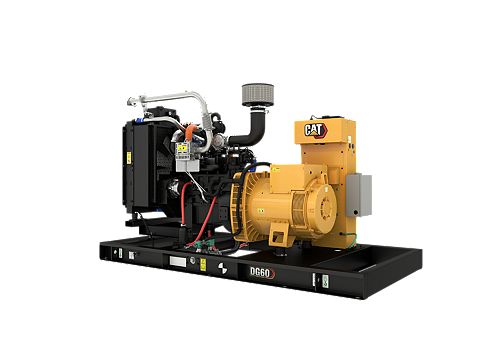

DG60 (Single Phase and 3 Phase)
- Bore
- 4.15 in / 101.6 mm
- Stroke
- 4.05 in / 95.3 mm
- Displacement
- 219.6 in³ / 6.2 l
The Cat® spark-ignited generator sets for stationary emergency applications provide a much cleaner and sustainable solutions for your power needs. The ability to run on various types of gaseous fuels and adapting automatic fuel change-over, make these products capable to power a wide range of applications.
| Generator Set Specifications | |
|---|---|
| Frequency | 60 Hz |
| Gas Standby Rating | 60 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Voltage | 208-600 |
| Speed | 1800 rpm |
| Engine Specifications | |
|---|---|
| Engine Model | 3.6L Inline TCAC |
| Bore | 4.15 in / 101.6 mm |
| Stroke | 4.05 in / 95.3 mm |
| Displacement | 219.6 in³ / 6.2 l |
| Compression Ratio | 9.7:1 |
| Fuel System | Electronic |
| Aspiration | TCAC |
| Generator Set Dimensions | |
|---|---|
| Length | 93 in / 2438 mm |
| Width | 47 in / 1295 mm |
| Height | 55 in / 1448 mm |
| Dry Weight - Genset | 2416 lb / 1364 kg |
