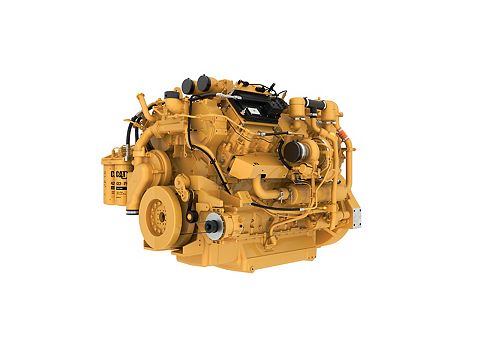

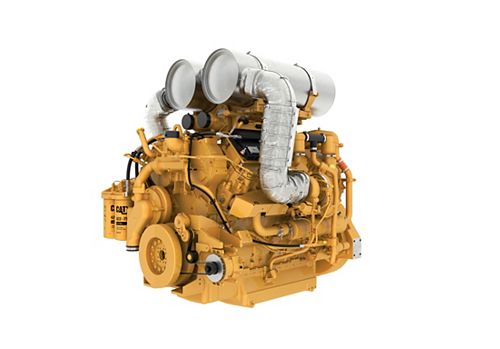

C32B
- Maximum Power
- 1200 hp / 895 kW
- Maximum Torque
- 4056 lb-ft @ 1200 rpm / 5499 Nm @ 1200 rpm
- Minimum Power
- 1000 hp / 746 kW
Building on the legacy of the C32, the C32B features strengthened
performance critical components like cylinder head, block,
crankshaft, pistons, rods, and main bearings. Its simple,
maintenance free diesel oxidation catalyst (DOC) aftertreatment
meets U.S. EPA Tier 4 Final, EU Stage V, and other equivalent
emissions standards
| Power Rating | |
|---|---|
| Maximum Power | 1200 hp / 895 kW |
| Maximum Torque | 4056 lb-ft @ 1200 rpm / 5499 Nm @ 1200 rpm |
| Rated Speed | 1800 rpm |
| Minimum Power | 1000 hp / 746 kW |
| Emission Standards | |
|---|---|
| Emissions | EU Stage V |
| General | |
|---|---|
| Engine Configuration | V-12 |
| Bore | 5.7 in / 145 mm |
| Stroke | 6.4 in / 162 mm |
| Displacement | 1958.9 in³ / 32.1 l |
| Compression Ratio | 15.0:1 |
| Aspiration | Twin Turbocharged Aftercooled (TTA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | DOC |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 73.8 in / 1874 mm |
| Width | 63 in / 1600 mm |
| Height | 53.9 in / 1370 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 6735 lb / 3055 kg |
| Aftertreatment Dimensions | |
|---|---|
| Length | 45.5 in / 1156 mm |
| Width | 17.3 in / 440 mm |
| Height | 16 in / 407 mm |
| Weight | 150 lb / 68 kg |
