C18 (>560 kW)
- Maximum Power
- 800 HP / 597 kW
- Minimum Power
- 755 HP / 563 kW
- Bore
- 5.7 in / 145 mm

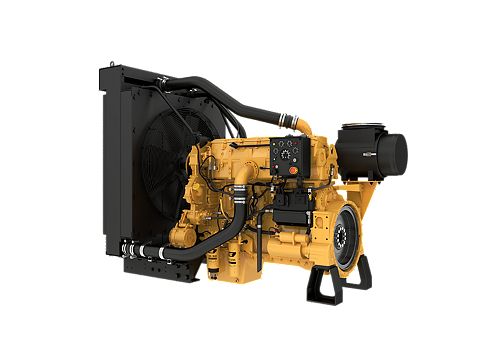

The Cat?? C18 Industrial Power Unit is offered in ratings ranging from 563-597 kW (755-800 hp) @ 1800 rpm. These ratings meet China Stage III, U.S. EPA Tier 2 equivalent and EU Stage IIIA equivalent or Non-certified emission standards. Conveniently pre-configured for a wide range of applications, the Cat?? Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.
| Power Rating | |
|---|---|
| Maximum Power | 800 HP / 597 kW |
| Rated Speed | 1800 |
| Minimum Power | 755 HP / 563 kW |
| Emission Standards | |
|---|---|
| Emissions | China Stage III, U.S. EPA Tier 2 Equivalent, EU Stage IIIA Equivalent or Non-Certified |
| General | |
|---|---|
| Engine Configuration | Inline 6, 4-Stroke-Cycle Diesel |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Displacement | 1104.5 in³ / 18.1 l |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Power Unit Dimensions | |
|---|---|
| Length | 54.6 in / 1388 mm |
| Width | 36.3 in / 921 mm |
| Height | 48.9 in / 1243 mm |
| Weight | 4844 lb / 2197 kg |
