DG150 (3 phase)
- Bore
- 4.3 in / 109.2 mm
- Stroke
- 4.75 in / 120.7 mm
- Displacement
- 555.3 in³ / 9.1 l

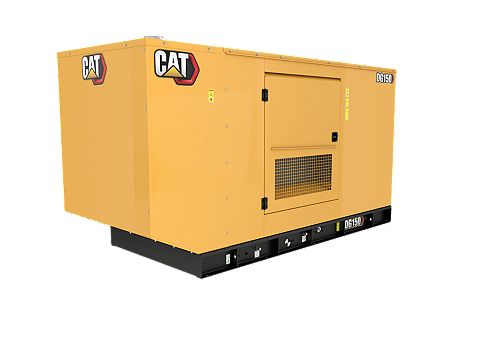

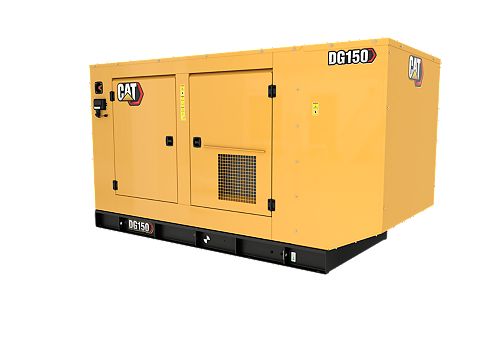

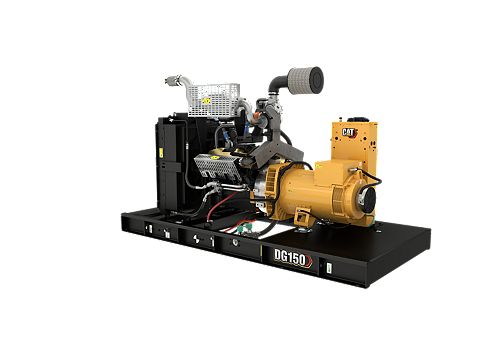

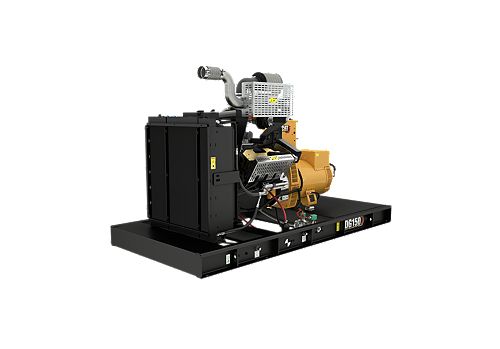

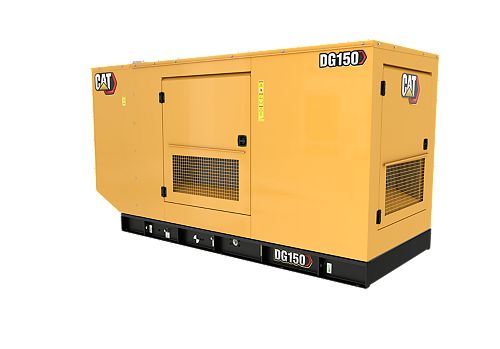

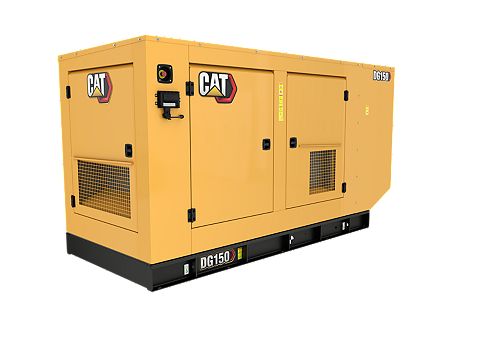

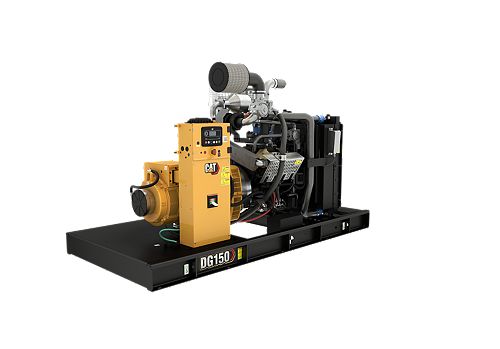

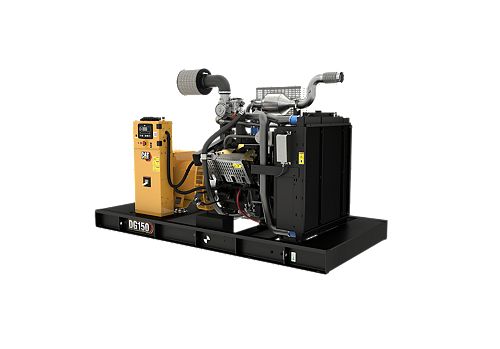

The Cat® spark-ignited generator sets for stationary emergency and non-emergency (demand response) applications provide a much cleaner and sustainable solution for your power needs. The ability to run on various types of gaseous fuels, adapting automatic fuel change-over and microgrid compatibility, make these products capable to power a wide range of applications.
| Generator Set Specifications | |
|---|---|
| Frequency | 60 Hz |
| Natural Gas Rating | 150 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency and Non-Emergency Application |
| Voltage | 208-600 |
| Speed | 1800 rpm |
| Gas Standby Rating | Standby, Demand Response and Prime |
| Engine Specifications | |
|---|---|
| Engine Model | V8, 9.1L TCAC |
| Bore | 4.3 in / 109.2 mm |
| Stroke | 4.75 in / 120.7 mm |
| Displacement | 555.3 in³ / 9.1 l |
| Compression Ratio | 9.5:1 |
| Aspiration | TCAC |
| Fuel System | Electronic |
| Generator Set Dimensions | |
|---|---|
| Length | 114 in / 2896 mm |
| Width | 55 in / 1397 mm |
| Height | 68 in / 1727 mm |
| Dry Weight - Genset | 4500 lb / 1464 kg |
