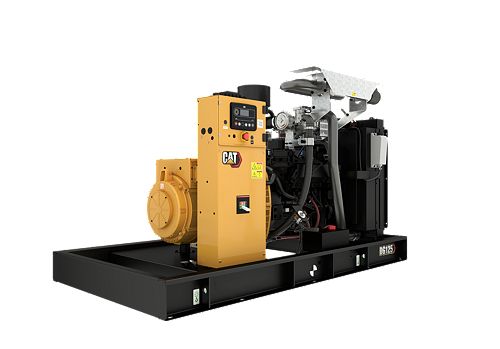

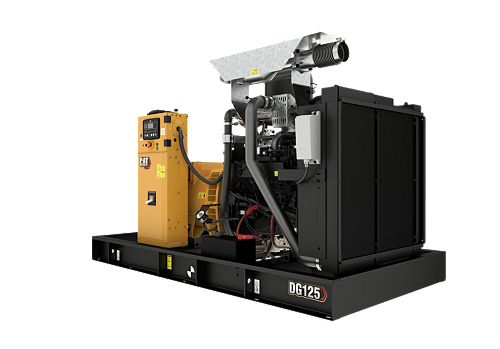

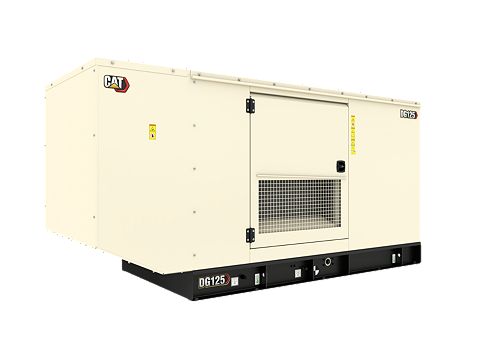

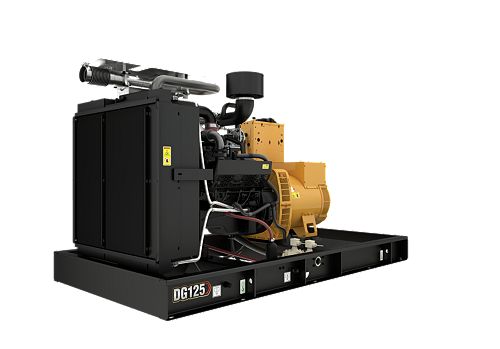

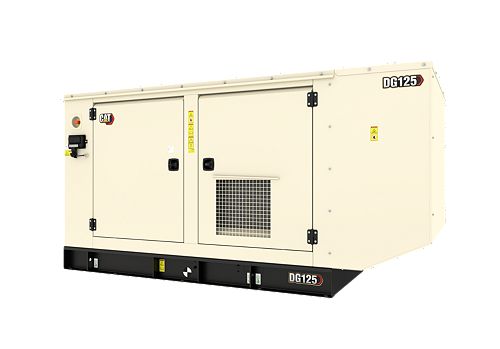

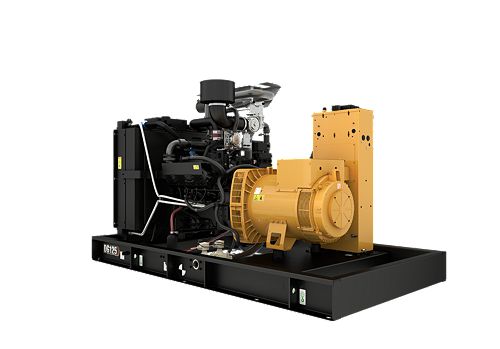

DG125 (Single-phase and 3 phase)
- Bore
- 4 in / 101.6 mm
- Stroke
- 3.75 in / 95.3 mm
- Displacement
- 378.3 in³ / 6.2 l
The Cat® spark-ignited generator sets for stationary emergency and non-emergency (demand response) applications provide a much cleaner and sustainable solution for your power needs. The ability to run on various types of gaseous fuels, adapting automatic fuel change-over and microgrid compatibility, make these products capable to power a wide range of applications.
| Generator Set Specifications | |
|---|---|
| Frequency | 60 Hz |
| Gas Standby Rating | 125 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency and Non-Emergency Application |
| Voltage | 208-600 |
| Speed | 1800 rpm |
| Natural Gas Rating | 125 ekW |
| Engine Specifications | |
|---|---|
| Engine Model | V8, 6.2L TCAC |
| Bore | 4 in / 101.6 mm |
| Stroke | 3.75 in / 95.3 mm |
| Displacement | 378.3 in³ / 6.2 l |
| Compression Ratio | 9.8:1 |
| Aspiration | TCAC |
| Fuel System | Electronic |
| Generator Set Dimensions | |
|---|---|
| Length | 96 in / 2438 mm |
| Width | 51 in / 1295 mm |
| Height | 57 in / 1448 mm |
| Dry Weight - Genset | 3226 lb / 1464 kg |
