XGC1900 60Hz 250 mg/Nm3

Width - Without Chassis: 96 in / 2438 mm
Height - Without Chassis: 114 in / 2896 mm
Length - Without Chassis: 480 in / 12192 mm

In addition to improved fuel efficiency, the next generation XGC1900 rental generator provides significant power density advantages. Caterpillar developed new exhaust stacks that reduce spacing requirements for sites requiring multiple units.

Loan Calculator Credit Application

Build & Quote

XGC1900 60 Hz Spec Sheet Cat Gensets Rating Guide

Specifications
Equipment

Generator Set
Rating	1900 ekW (2375 kVA) Continuous
Frequency	60 Hz
Voltage	480 V

Engine
Engine	Cat G3516H
Fuel	Natural Gas

Dimensions
Width - Without Chassis	96 in / 2438 mm
Height - Without Chassis	114 in / 2896 mm
Length - Without Chassis	480 in / 12192 mm
Weight - Without Chassis, With Lube Oil and Coolant	77780 lb / 35280 kg

Standard Equipment

Engine
- G3516H, V16, 4-stroke-cycle, gas engine. Operates on 24.10 to 93.95 MJ/Nm3 (615 to 2386 btu/ft3) dry pipeline natural gas. Turbocharged Separate Circuit Aftercooled
Generator
- Double bearing SR5 1866 Frame, brushless, form wound, 12-lead design, permanent magnet excited, thouree-phase, with Cat IVR, Class H insulation operating at Class F temperature. Stator and Bearing temperature monitoring and anti-condensation space heaters

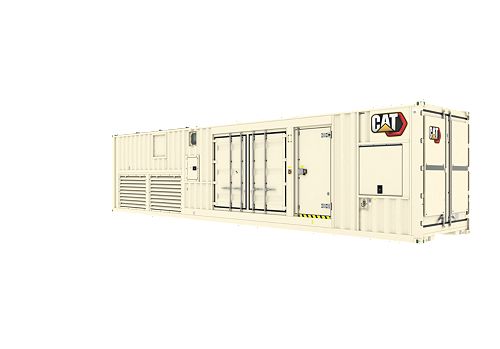

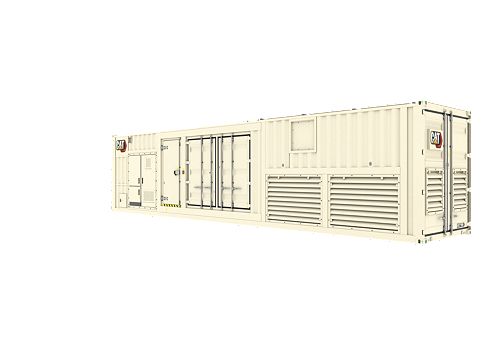

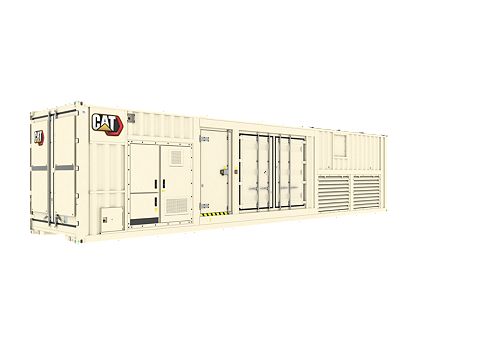

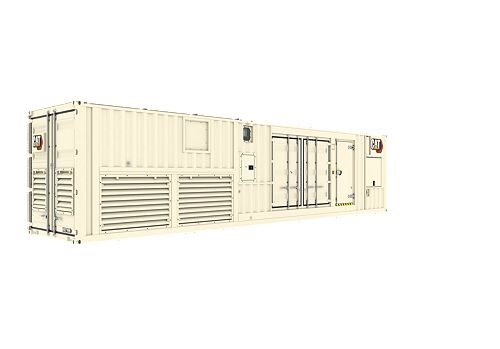

Containerized Module
- 40' ISO high cube container, 9-high stack CSC certified. Sound attenuated 79 dB(A) @ 7 m (23 ft) Sound attenuated air intake louvers and 2lockable personnel doors with panic release LH and RH engine service doors integrated intocontainer side walls 3” ANSI flange customer fuel connection
Cooling
- Standard cooling provides 40°C (104°F) ambient capability with 250mg/Nm3 NOx at 100% Continuous rating before derate, @ 500m
Generator Controls And Protection
- On Package EMCP 4.3 Control Panel System Offers engine and generator monitoring and protection, voltage regulation with Cat IVRimproves transient response performance. Controls provide auto paralleling AGC-4 controller, load sharing, VFD control, and primary generator protection for greate rversatility, package utilization and monitoring.
Modes of Operation
- Provides for single unit stand-alone operation,island mode paralleling and load sharing withother power modules, and single unit-to-utilitymode paralleling for base load control
Lube Oil Make-Up System
- Oil pan-mounted oil level regulator and 114 L (30 gal) oil tank Low level annunciation
