C2.2 | D25
- Bore
- 3.3 in / 84 mm
- Stroke
- 3.9 in / 100 mm
- Displacement
- 134 in³ / 2.2 l

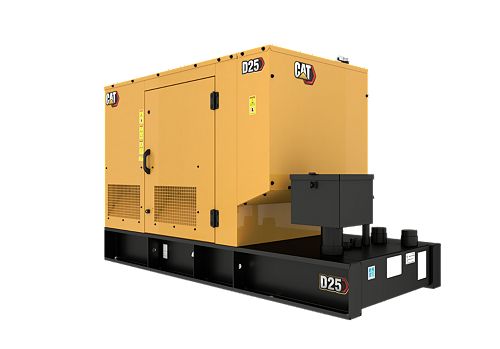

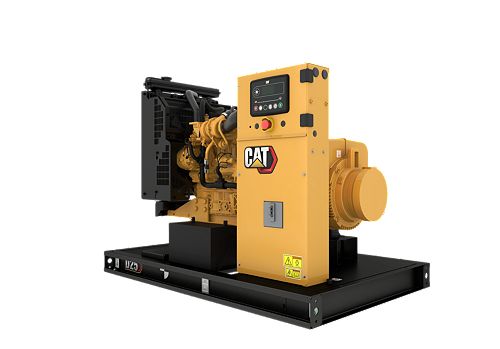

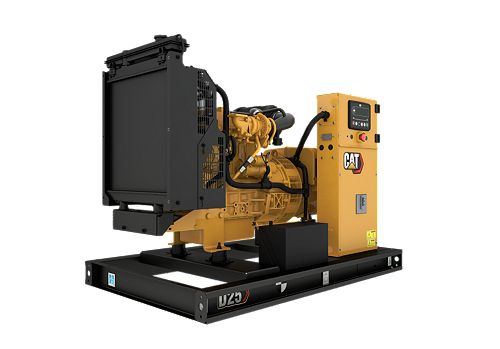

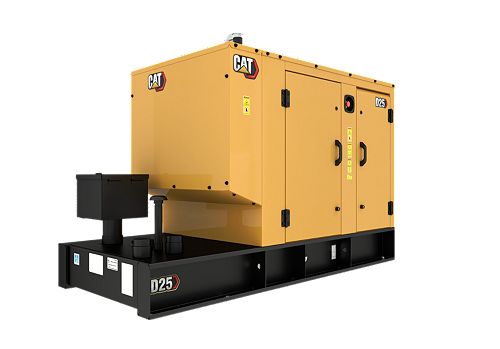

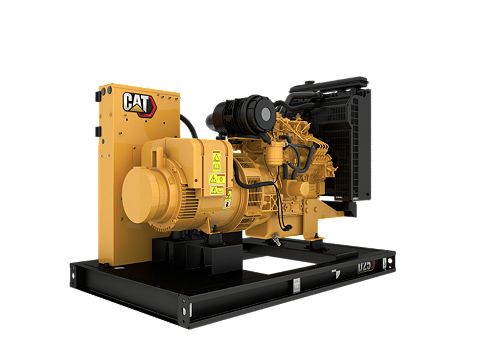

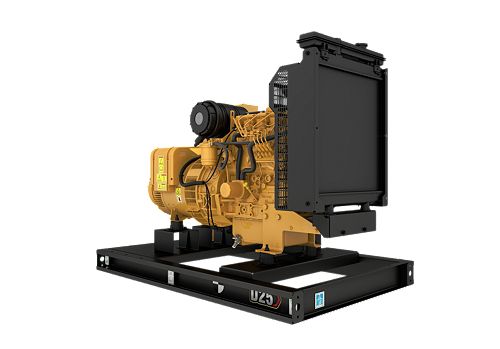

Producing reliable power of 25 ekW at 60 Hz, our D25 diesel generator sets are designed to meet ISO 8528-5 transient response requirements. All D25 generator sets are EPA TIER 4I emissions compliant.
| Generator Set Specifications | |
|---|---|
| Standby Rating | 25.0 ekW |
| Frequency | 60 Hz |
| Emissions/Fuel Strategy | US EPA TIER 4I (EPA 40 CFR Part 1039 Interim Tier 4) |
| Voltage | 480/277, 240/120, 208/120, 600/346, 240/120 VAC |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® C2.2, In-line 4, 4-cycle diesel |
| Bore | 3.3 in / 84 mm |
| Stroke | 3.9 in / 100 mm |
| Displacement | 134 in³ / 2.2 l |
| Compression Ratio | 23.3:1 |
| Aspiration | Turbocharged |
| Fuel System | Mechanical Cassette Type |
| Governor Type | Mechanical |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 88.6 in / 2250 mm |
| Width - Maximum | 41.3 in / 1050 mm |
| Height - Maximum | 57.9 in / 1470 mm |
| Dry Weight - Genset (maximum) | 2052 lb / 930 kg |
