3516E (60 Hz)

Bore
6.69 in / 170 mm
Stroke
8.47 in / 215 mm
Displacement
4765 in³ / 78.1 l

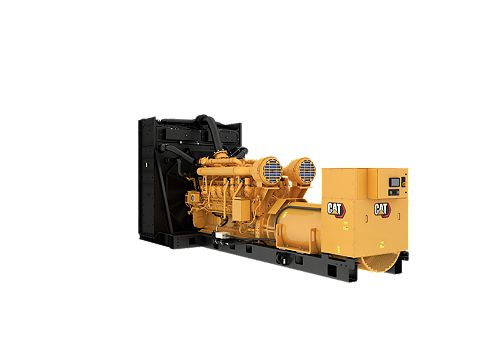

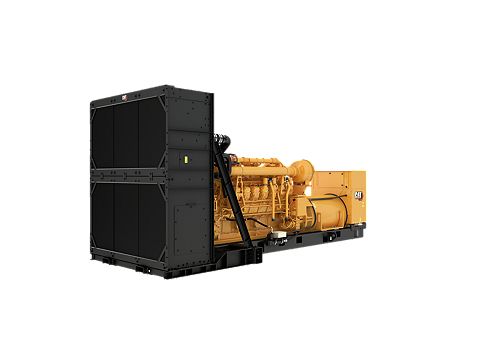

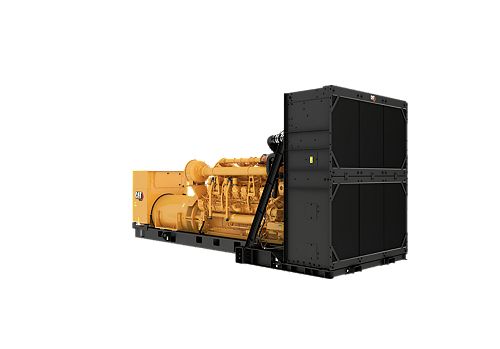

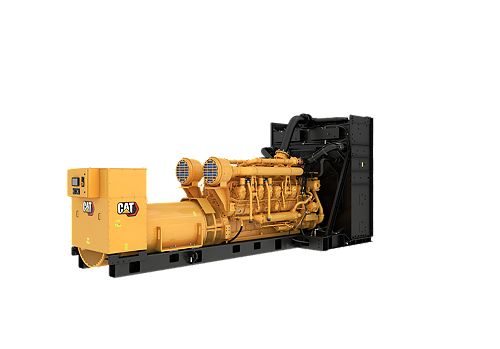

The 3516E diesel generator sets have been developed to meet your standby and prime applications and match your power standards. Producing reliable power from 2500 to 2750 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and to accept 100 % rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.

Loan Calculator Credit Application
Build & Quote
alt 1
Electric Power Ratings Guide 3516E, 60 Hz, 2750 ekW, U.S. EPA Stationary Emergency (Tier 2) Spec Sheet 3516E, 60 Hz, 2500 ekW, Prime-DCP, U.S. EPA Certified for Emergency Stationary Applications (Tier 2) Spec Sheet
Generator Set Specifications
Standby Rating 2750 ekW
Prime Power Rating 2500 ekW
Emissions/Fuel Strategy Tier 2, Low NOx
Voltage 416 to 13,800 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby, Mission Critical, Prime
Maximum Rating 2750 ekW
Minimum Rating 2500 ekW
Engine Specifications
Engine Model 3516E, V-16, 4-Stroke, Water-Cooled Diesel
Bore 6.69 in / 170 mm
Stroke 8.47 in / 215 mm
Displacement 4765 in³ / 78.1 l
Compression Ratio 14.7:1
Aspiration ATAAC
Fuel System EUI
Governor Type Adem™ A5
Generator Set Dimensions
Length - Maximum 303.3 in / 7703 mm
Width - Maximum 104 in / 2640 mm
Height - Maximum 131.6 in / 3342 mm
Dry Weight - Genset (maximum) 40750 lb / 18480 kg

Standard Equipment

  • Air Inlet System
    • Single element canister type with service indicator
    • Air cleaner
  • Cooling
    • Package mounted radiator
  • Exhaust
    • Exhaust flange outlet
  • Fuel
    • Primary fuel filter with integral water separator
    • Fuel priming pump
  • Generator
    • IP23 Protection
    • Matched to the performance and output characteristics of Cat engines
  • Power Termination
    • Busbar
  • Starting/Charging
    • Heavy duty starting system
    • Charging alternator
  • Control Panel
    • Communications:
    • 6 Programmable digital inputs
    • Programmable protective relaying functions:
    • Low oil pressure
    • Environmental sealed front face
    • Volts (L-L & L-N)
    • Emergency stop pushbutton
    • Serial annunciator module data link
    • Reverse power (kW) (32)
    • Engine cycle crank
    • Lamp test
    • Over/under frequency (81 o/u)
    • kW-hr (total)
    • Speed adjust
    • True RMS AC metering, 3-phase, +/-2% accuracy
    • Engine cool-down timer
    • Overcurrent (50/51)
    • Reverse reactive power (kVAr) (32RV)
    • kW (per phase, average & percent)
    • kVAr-hr (total)
    • Generator phase sequence
    • Oil pressure (psi, kPa or bar)
    • Low coolant temperature
    • Amps (per phase & average)
    • Generator mounted - rear facing
    • Over/under voltage (27/59)
    • Low coolant level
    • Accessory module data link
    • kVAr (per phase, average & percent)
    • Cat ECS controller includes:
    • Failure to start (overcrank)
    • 2 Programmable relay outputs (Form C)
    • Cat ECS 100
    • Overspeed
    • 2 Programmable digital outputs
    • DC volts
    • Frequency (Hz)
    • High coolant temperature
    • Warning/shutdown with common LED indication of shutdowns for:
    • Operating hours
    • 4 Programmable relay outputs (Form A)
    • Coolant temperature
    • Power factor (per phase & average)
    • Digital indication for:
    • Panel lights
    • Text alarm/event descriptions
    • Controls:
    • 24 Volt DC operation
    • Alarm acknowledge
    • Customer data link (Modbus RTU)
    • kVA (per phase, average & percent)
  • Cooling System
    • Caterpillar extended life coolant
    • Coolant drain line with valve
    • Coolant level sensors
    • JWAC
    • Radiator fan and fan drive
    • Fan and belt guards
  • Exhaust System
    • Dry exhaust manifold
    • Flanged faced outlet(s)
  • Fuel System
    • Secondary fuel filters
    • Flexible fuel lines - shipped loose
    • Fuel cooler; not included with packages without radiator
    • Fuel priming pump
  • Generators and Attachments
    • Form wound
    • 3 Phase brushless, Salient pole
    • Class H insulation, Class F temperature rise at 40C ambient (105C prime/130C standby)
    • Winding temperature detectors
    • Permanent magnet excitation (PMG)
    • Anti-condensation space heater
    • Right side extension terminal box, busbar connections, top mounted, bottom cable entry
    • 6 Lead
    • NEMA standard hole pattern
  • Governing System
    • ADEM III
  • Literature
    • Parts book
    • Operation & Maintenance Manual
  • Lube System
    • Integral lube Oil cooler
    • Fumes disposal
    • Oil drain lines and valve
    • Oil filter, filler and dipstick
    • Lubricating oil
    • Gear type lube oil pump
  • Mounting System
    • Rubber anti-vibration mounts - shipped loose
    • Rails - engine/generator/radiator mounting
  • Starting / Charging System
    • Battery disconnect switch
    • 45 Amp Charging alternator
    • Battery and battery rack w/cables
    • 24 Volt electric starting motor
  • General
    • Flywheel and flywheel housing-SAE No. 00
    • SAE standard rotation
    • Paint - Caterpillar yellow with high gloss black rails & radiator
    • Right hand servicing

Optional Equipment

  • Air Inlet System
    • Air inlet protection
    • Remote air inlet adapters
    • Dual element air cleaners
    • Heavy duty air cleaners
  • Circuit breakers
    • Busbar connections
    • P Frame breaker connections
    • R Frame breaker connections
    • Optional busbar power connections
    • Circuit breaker harnesses
    • Masterpact breaker connections
    • Cable entry options
    • 2000, 2500, 3200, 4000 Amp, 4 Pole, IEC rated Circuit breakers
    • 2000, 2500, 3200, 4000, 5000 Amp, 3 Pole, IEC rated Circuit breakers
    • 1600, 2000, 2500, 3000, 4000, 5000 Amp, 3 Pole, UL-100% rated Circuit breakers
  • Power Termination
    • Circuit breakers, IEC compliant
  • Control Panel
    • Customer interface options
    • Mounting group - External box clips
    • EMCP 4.4
    • PC monitoring (Remote and local)
    • Ground
    • Load share module options
    • Annunciator modules
    • Auxiliary box
    • Language options
    • Remote speed adjust
    • Vandal proof panel door
    • Voltage raise/lower switch
    • Generator temperature monitoring
  • Cooling System
    • Expansion tanks
    • Optional Serpentine radiators
    • Water level switch gauges
    • Optional ATAAC radiators
  • Exhaust System
    • Flexible fittings
    • Elbows
    • Flanges and exhaust fittings
    • Flanges
    • Y Adapters
    • Mufflers
  • Fuel System
    • Duplex fuel filters
    • Primary fuel filters
  • Generators and attachments
    • Differential current transformers - 8.7 and 15 kV class
    • Alternator air cleaners
  • Instrumentation
    • Pyrometer and thermocouples
  • Lube System
    • Manual prelube pump
    • Lube oil in standard sump
    • Oil level regulator
    • Electric prelube pumps
  • Mounting System
    • Spring type vibration isolators
    • IBC Seismic vibration isolators NORAD
    • Puck style low efficiency lsolators
  • Power Connections
    • Neutral ground connections
    • 2700 & 3000 Frame
    • Grounding groups
  • Special Tests / Reports
    • IBC Certifications
    • Generator set test report
    • Torsional vibration analysis
    • PGS Test report @ 1.0 power factor
    • PGS Test report @ 0.8 power factor
    • Standard engine test charge
    • Fuel consumption test
    • Generator set consumption test
  • Starting / Charging System
    • Starter cover
    • Electric starting motors
    • Air pressure regulator
    • 24 Volt battery set - Dry
    • Jacket water heaters
    • Engine barring group
    • 10, 20, 35 and 50 Amp Battery chargers
    • Air starting motors
  • General
    • Special paint colors
    • US aid emblem
