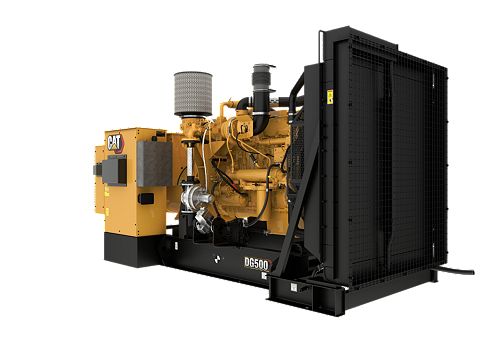

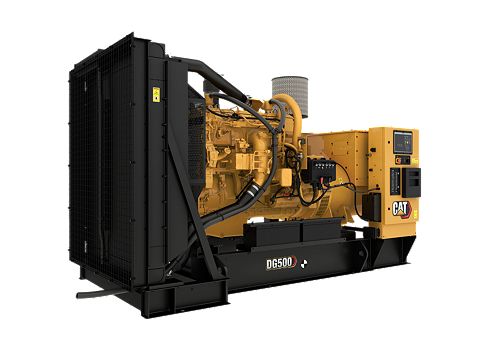

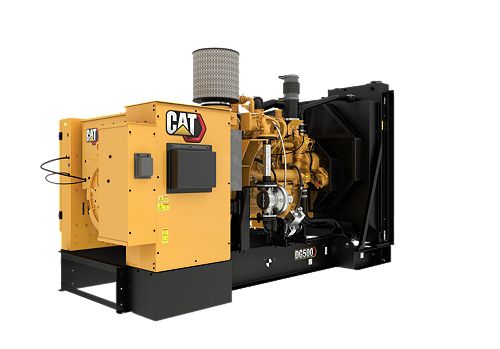

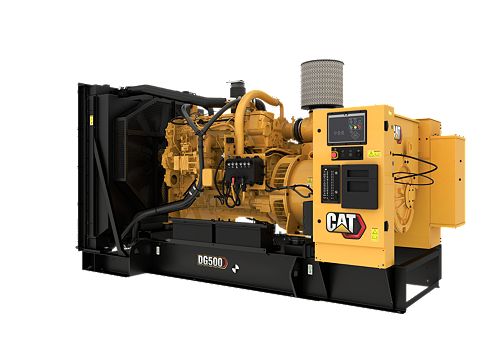

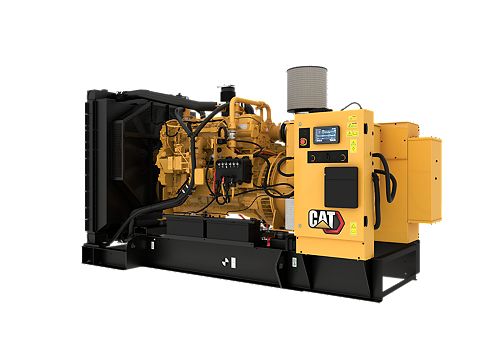

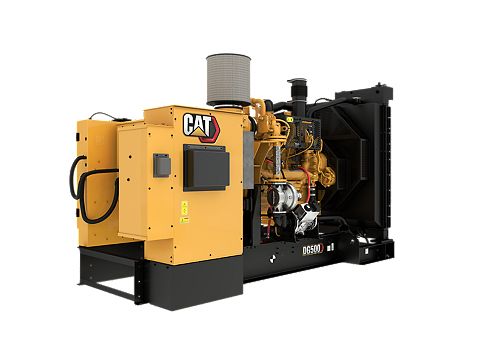

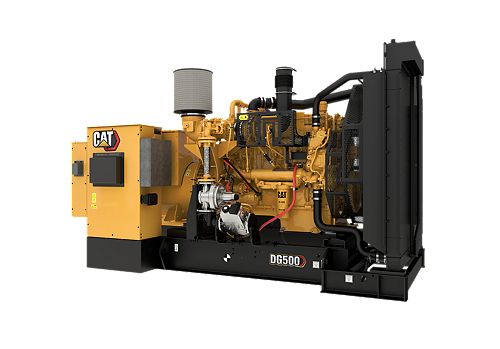

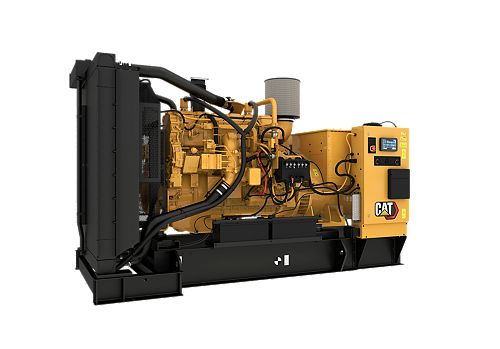

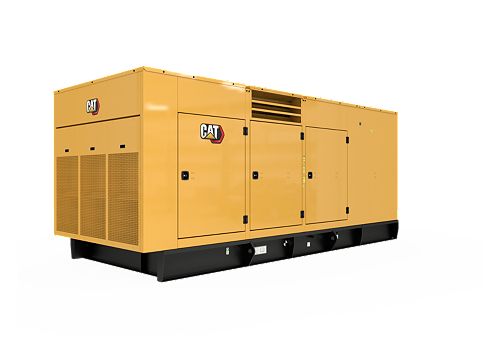

DG500 (3-Phase)
- Displacement
- 1106.3 in³ / 18.1 l
- Bore
- 5.7 in / 145 mm
- Stroke
- 7.2 in / 183 mm
The Cat® spark-ignited lean burn generator for stationary standby, demand response and limited time power (LTP) applications offer reliable power with best in class fuel efficiency, lower footprint and cleaner exhausts. The abilitity to operate even at very low fuel inlet pressures makes it best suited for a range of applications
| Generator Set Specifications | |
|---|---|
| Frequency | 60 Hz |
| Natural Gas Rating | 500 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency and Non-Emergency Application |
| RPM | 1800 |
| Fuel Type | Natural Gas |
| Voltage | 208 - 600 VAC |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® CG18 In-line 6, 4-cycle Natural Gas |
| Fuel System | Gas mixer, Venturi |
| Aspiration | Turbocharged - Air-to-Air Aftercooled |
| Governor Type | Electronic |
| Displacement | 1106.3 in³ / 18.1 l |
| Compression Ratio | 10.5:1 |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Generator Set Dimensions | |
|---|---|
| Length | 154 in / 3581 mm |
| Width | 73 in / 1854 mm |
| Height | 82 in / 2083 mm |
| Weight | 10721 lb / 4863 kg |
