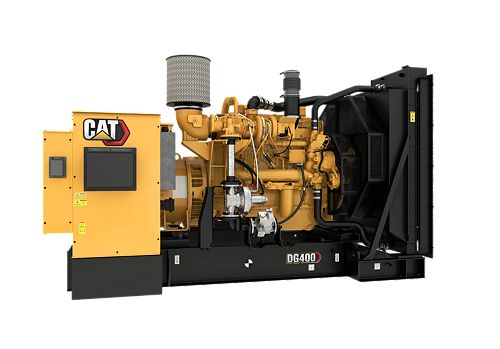

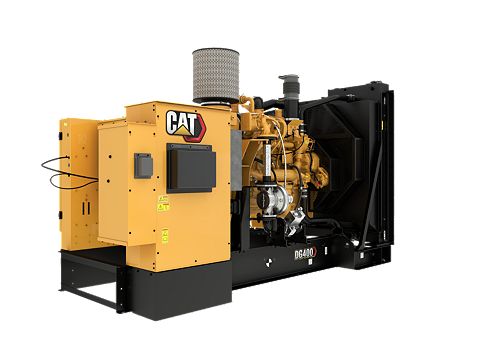

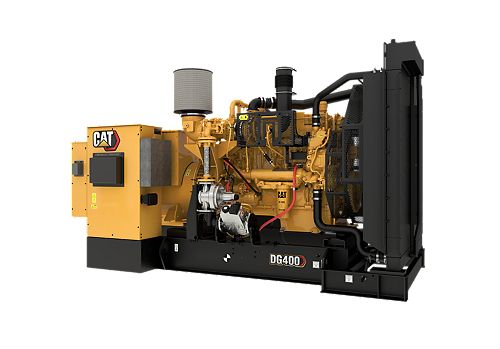

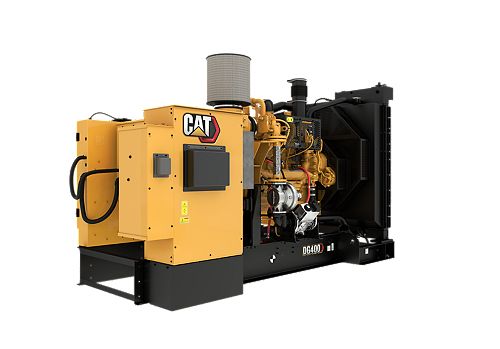

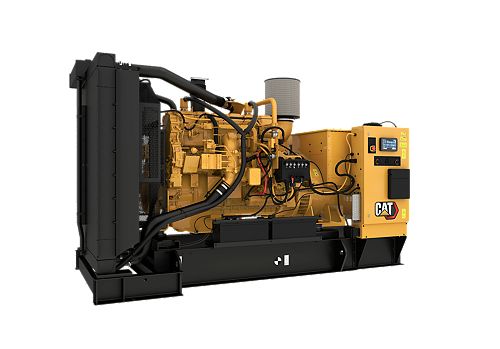

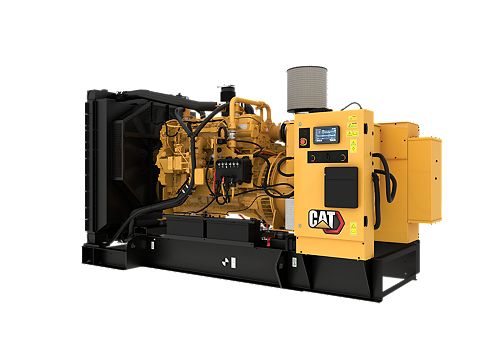

DG400 (3-Phase)

Displacement
1106.3 in³ / 18.1 l
Bore
5.7 in / 145 mm
Stroke
7.2 in / 183 mm

The Cat® spark-ignited lean burn generator for stationary standby, demand response and limited time power (LTP) applications offer reliable power with best in class fuel efficiency, lower footprint and cleaner exhausts. The abilitity to operate even at very low fuel inlet pressures makes it best suited for a range of applications

Generator Set Specifications
Frequency 60 Hz
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency Application and Non-Emergency Applications
RPM 1800
Voltage 208 - 600 VAC
Natural Gas Rating 400 ekW
Fuel Type Natural Gas
Engine Specifications
Engine Model Cat® CG18 In-line 6, 4-cycle Natural Gas
Fuel System Gas mixer, Venturi
Aspiration Turbocharged - Air-to-Air Aftercooled
Governor Type Electronic
Displacement 1106.3 in³ / 18.1 l
Compression Ratio 10.5:1
Bore 5.7 in / 145 mm
Stroke 7.2 in / 183 mm
Generator Set Dimensions
Length 154 in / 3581 mm
Width 73 in / 1854 mm
Height 82 in / 2083 mm
Weight 10721 lb / 4863 kg

Standard Equipment

  • Exhaust
    • Dry exhaust manifolds, insulated and shielded
  • Fuel System
    • Gas train with Zero Pressure regulator
    • ECU controlled shutdown solenoid
    • Airfuel Ratio Control, Venturi type Air-Gas mixer, throttle controlled valve
  • Controls
    • EMCP 4.2B
    • Integrated Voltage Regulator (IVR)
  • Telematics
    • PL444 Product link 4G LTE Telematics
  • Generator
    • Anti-condensation space heater
    • SR5
  • Governing
    • Electronic Governing
  • Starting/Charging
    • 24V starting motors
  • General
    • Paint - Caterpillar Yellow except rails are gloss black
    • Operation and maintenance manuals
    • Parts book

Optional Equipment

  • Air Inler
    • Air inlet adapters
  • Cooling
    • Inlet/Outlet connections
  • Exhaust
    • Flexible fitting
    • Elbow, Flange
    • Muffler and spark-arresting muffler with companion flanges
    • Exhaust expander
  • Telematics
    • PLG 601 & 641 Product link Telematics
  • Generator
    • Permanent Mangnet Excitation
    • Low voltage extension box
    • Generator air filter
    • European bus bar
    • Cable access box
  • Enclocures

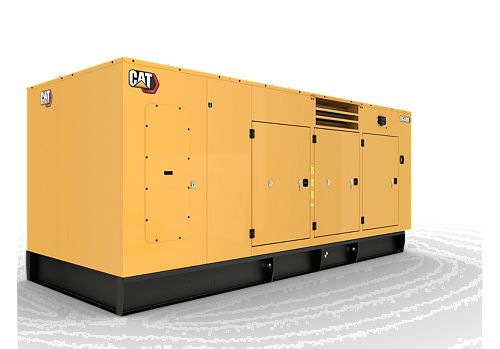

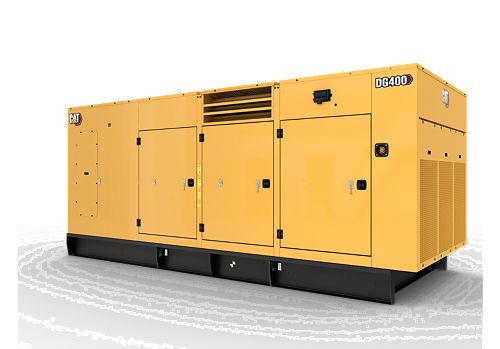

    • Sound Attenuated and Weather Protective
  • Starting/Charging
    • Jacket water heater
    • Space Heaters
    • Charging alternator
    • Battery with cable and rack (shipped loose)
    • Battery charger
    • Oversized battery
  • General
    • Engine barring group
    • EEC D.O.I and other certifications
    • Crankcase explosion relief valve
