D1250 GC
- Bore
- 5.71 in / 145 mm
- Stroke
- 6.38 in / 162 mm
- Displacement
- 1958.86 in³ / 32.1 l

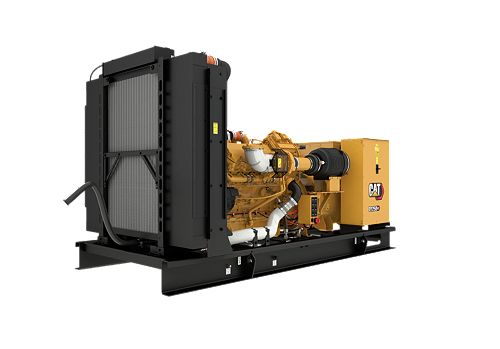

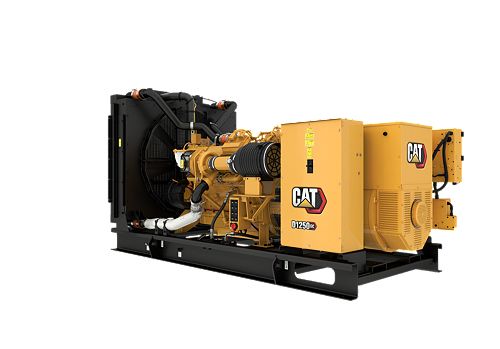

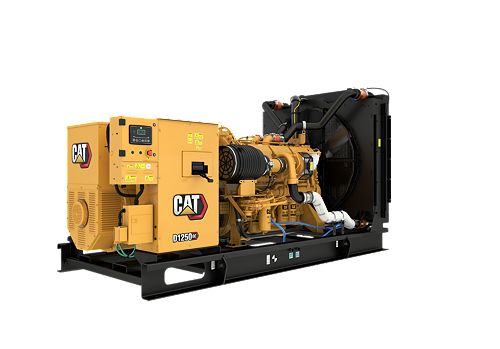

Producing reliable power at 1250 ekW, 60 Hz, our D1250 GC diesel generator set is made to meet your needs in standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 1250 ekW |
| Minimum Rating | 1250 ekW |
| Emissions/Fuel Strategy | U.S. EPA Tier 2 |
| Voltage | 380 - 480 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 5.71 in / 145 mm |
| Stroke | 6.38 in / 162 mm |
| Displacement | 1958.86 in³ / 32.1 l |
| Compression Ratio | 15.0:1 |
| Aspiration | TA |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
| Generator Set Dimensions | |
|---|---|
| Length - Minimum | 164.3 in / 4175 mm |
| Length - Maximum | 164.3 in / 4175 mm |
| Width - Minimum | 82.3 in / 2090.5 mm |
| Width - Maximum | 82.3 in / 2090.5 mm |
| Height - Minimum | 89.3 in / 2268 mm |
| Height - Maximum | 89.3 in / 2268 mm |
| Dry Weight - Genset (minimum) | 15776 lb / 7156 kg |
| Dry Weight - Genset (maximum) | 15776 lb / 7156 kg |
