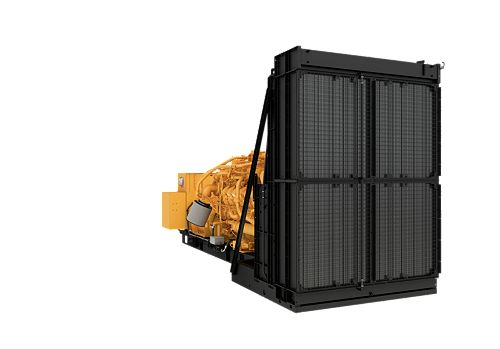

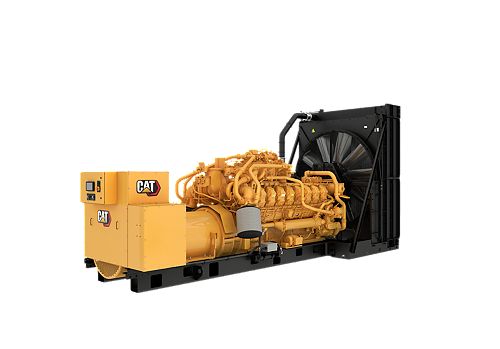

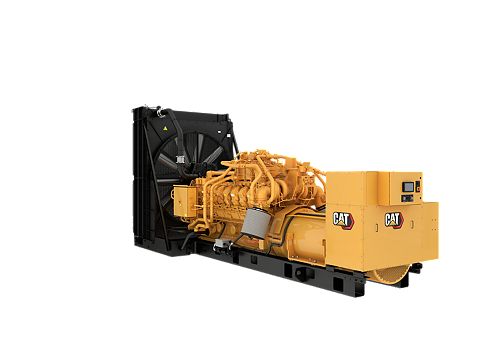

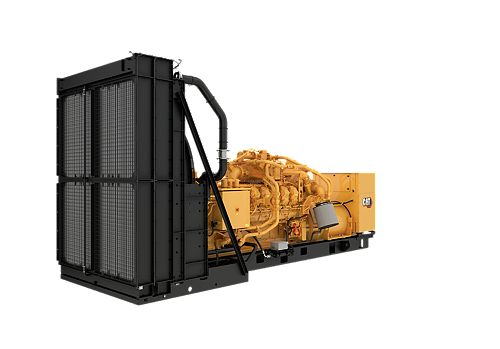

G3516 with FAST RESPONSE

Displacement: 4765 in³ / 78 l
Bore: 6.7 in / 170 mm
Stroke: 8.5 in / 215 mm

Caterpillar is leading the power generation marketplace with Fast Response generator sets engineered to deliver unmatched performance, reliability, and cost-effectiveness.

Loan Calculator Credit Application

Build & Quote

Electric Power Rating Guide G3516 NOx Selectable Spec Sheet G3516 EPA Certified Spec Sheet Gas Generator Set 50 and 60 Hz Ratings Guide

Specifications
Equipment
Related Products

Generator Set Specifications
Gas Standby Rating	1500 ekW @ 0.8pf
Fuel Type	Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy	U.S. EPA Stationary Non-Emergency Certified
RPM	1800 rpm
Frequency	60 Hz
Compression Ratio	11.5

Engine Specifications
Engine Model	G3516
Displacement	4765 in³ / 78 l
Aspiration	TA
Bore	6.7 in / 170 mm
Stroke	8.5 in / 215 mm

Generator Set Dimensions
Length	275.6 in / 7000 mm
Width	92.3 in / 2345 mm
Height	128.5 in / 3265 mm
Weight	40384 lb / 18315 kg

Standard Equipment

Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panel
- Cat ECS 100
Cooling
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
Exhaust
- Dry exhaust manifolds, insulated and shielded
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Cat-flanged face outlet on turbocharger
Fuel System
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Throttle plate, 24V DC actuator, controlled by GECM
- Gas pressure regulator
- 24V DC energized-to-run (ETR) gas shutoff valve
- Engine-installed electronic control valve
General
- Crankshaft vibration damper and guard
- Paint- Caterpillar Yellow with high gloss black rails and radiator
- RH Service
- Operation and maintenance manuals
- Parts book
Generator
- Permanent Magnet Excitiation
- Anti-condensation space heater
- Winding temperature detectors
- NEMA Class H insulation
- Integrated voltage regulator (IVR)
- SR5
Starting/Charging
- Electric Starter
- 24V starting motors
- Jacket water heater
- Battery with cables and rack (shipped loose)
Governing System
- ADEM A4
Ignition System
- Individual Cylinder Detonation Sensitive Timing (DST)
- Electronic Ignition System (controlled by ADEM A4)

Optional Equipment

Air Inlet
- Air cleaner with precleaner
Control Panel
- Remote annunciator
- Local alarm module
- Remote PC monitoring
- Engine failure relay
- Local PC monitoring
- EMCP 4.4
Circuit Breakers
- S LSI, G LSIG, P LSIG-P, 4th Digit Type
- 100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
- 3-pole (IEC 947-2 rated)
- 2000A, 2500A, 3000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers
- 1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
- Frame mounting
Cooling
- Coolant level drain line with valves, fan with guard
- Package mounted radiator
Exhaust
- 305 mm (12 in.) muffler
- 305 mm (12 in.) flange
- 305mm (12 in) spark arresting muffler
- 305 mm (12in.) elbow
- 18, 25 dBA Attenuation
Fuel System
- 3, 0-100 kPag, 4-20mA gas train pressure sensors
General
- Digital diagnostic tool
Generator
- European bus bars
- Bearing temperature detectors
- Low voltage extension box
- Generator air filter
- Cable access box
Starting/Charging
- 45A, 24V charging alternator (requires engine driven pumps)
- 20A, 24VDC battery charger
Grid Code Compliance
- 60 Hz: USA
