DE1000S GC

Bore
5.71 in / 145 mm
Stroke
6.38 in / 162 mm
Displacement
1958.86 in³ / 32.1 l

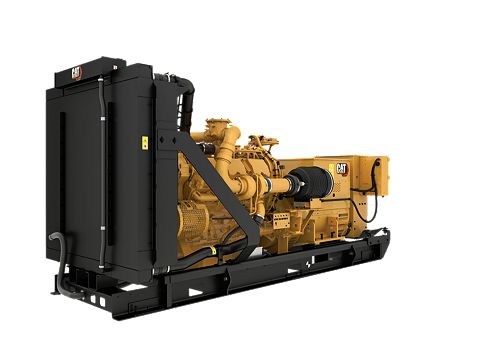

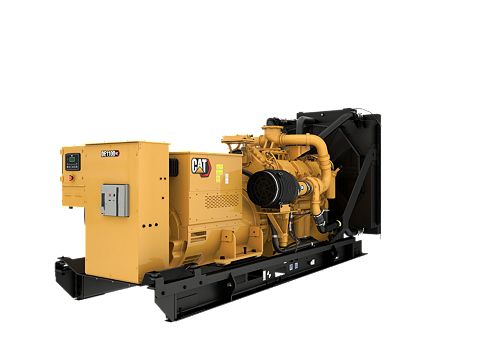

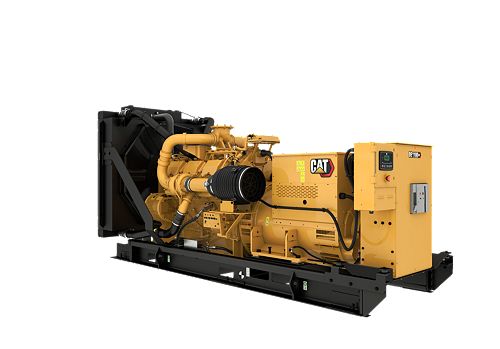

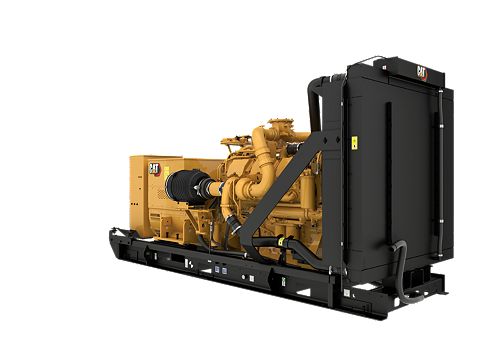

Producing reliable power at 1000 ekW, 60 Hz, our DE1000S GC diesel generator set is made to meet your needs in standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. This generator set offers a low fuel consumption system.

Generator Set Specifications
Maximum Rating 1000 eKW
Minimum Rating 1000 eKW
Emissions/Fuel Strategy Low Fuel Consumption
Voltage 380 - 480 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore 5.71 in / 145 mm
Stroke 6.38 in / 162 mm
Displacement 1958.86 in³ / 32.1 l
Compression Ratio 15.0:1
Aspiration TA
Fuel System EUI
Governor Type Adem™A4
Generator Set Dimensions
Length - Minimum 164.3 in / 4175 mm
Length - Maximum 164.3 in / 4175 mm
Width - Minimum 73.1 in / 1856 mm
Width - Maximum 73.1 in / 1856 mm
Height - Minimum 87.3 in / 2217.5 mm
Height - Maximum 87.3 in / 2217.5 mm
Dry Weight - Genset (minimum) 14669 lb / 6654 kg
Dry Weight - Genset (maximum) 14669 lb / 6654 kg

Standard Equipment

  • Control Panel
    • GCCP1.3
  • Cooling System
    • Radiator

Optional Equipment

  • Control Panels
    • Remote monitoring software
  • Starting/Charging
    • Jacket water heater
  • General
    • Single element or dual element air cleaner
    • Circuit breaker panel, based on regional and product configuration
