DE800S GC
- Bore
- 5.4 in / 137.2 mm
- Stroke
- 6 in / 152.4 mm
- Displacement
- 1649.47 in³ / 27.03 l

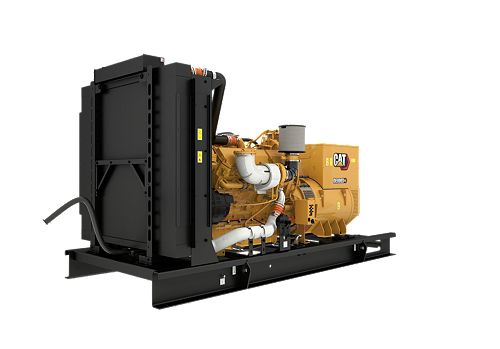

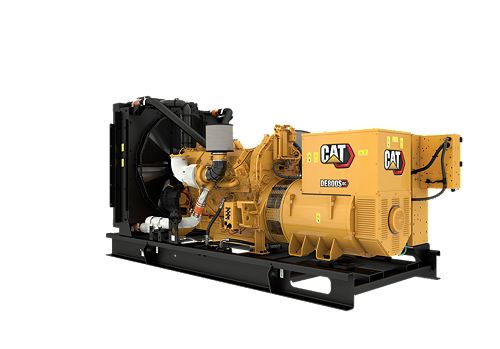

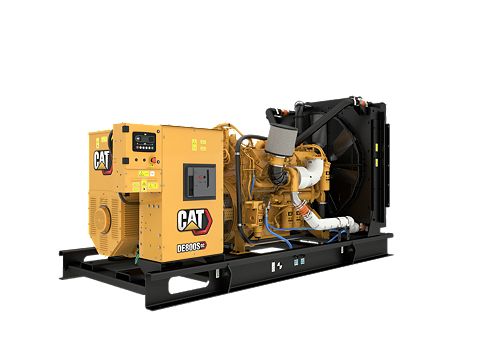

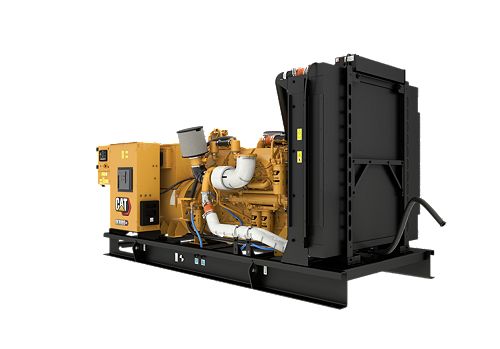

Producing reliable power at 800 ekW, 60 Hz, our DE800S GC diesel generator set is made to meet your needs in standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100 per cent rated load in one step. This generator set is a low fuel consumption system.
| Generator Set Specifications | |
|---|---|
| Minimum Rating | 800 eKW |
| Maximum Rating | 800 eKW |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | 380 - 480 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | C27 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 5.4 in / 137.2 mm |
| Stroke | 6 in / 152.4 mm |
| Displacement | 1649.47 in³ / 27.03 l |
| Compression Ratio | 16.5:1 |
| Aspiration | TA |
| Fuel System | MEUI |
| Governor Type | Adem™A4 |
| Generator Set Dimensions | |
|---|---|
| Length - Minimum | 164.3 in / 4175 mm |
| Length - Maximum | 164.3 in / 4175 mm |
| Width - Minimum | 73.1 in / 1856 mm |
| Width - Maximum | 73.1 in / 1856 mm |
| Height - Minimum | 87.3 in / 2217.5 mm |
| Height - Maximum | 87.3 in / 2217.5 mm |
| Dry Weight - Genset (minimum) | 13695 lb / 6212 kg |
| Dry Weight - Genset (maximum) | 13695 lb / 6212 kg |
