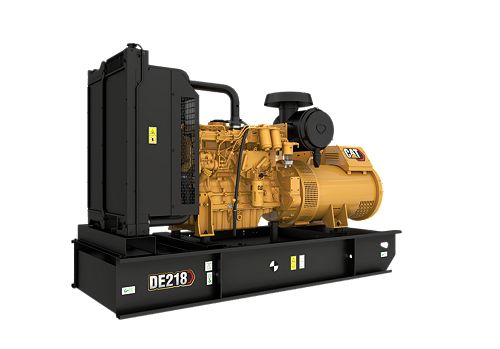

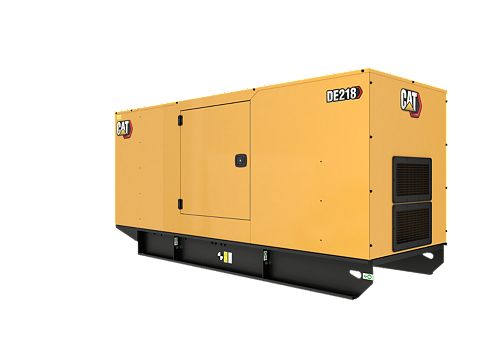

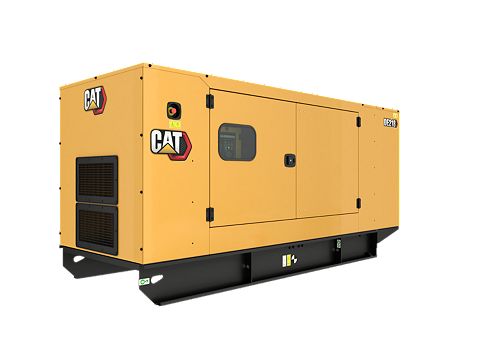

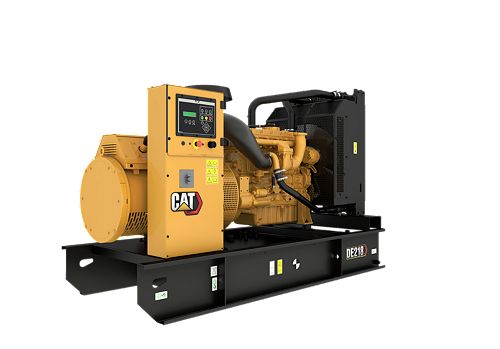

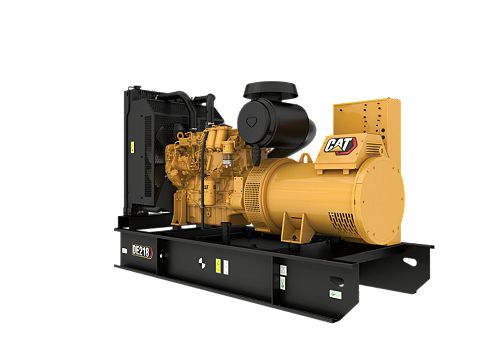

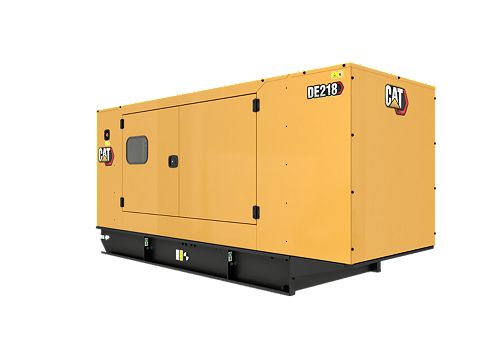

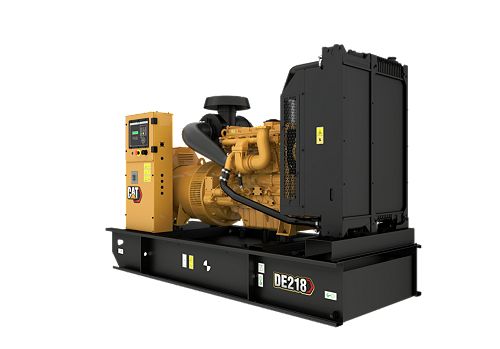

C7.1 | DE218AE0 (60 Hz)
- Bore
- 4.1 in / 105 mm
- Stroke
- 5.3 in / 135 mm
- Displacement
- 427.8 in³ / 7 l
Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 174.0 ekW |
| Minimum Rating | 157.0 ekW |
| Emissions/Fuel Strategy | Non-Certified Emissions |
| Voltage | 220 to 380 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® C7.1 |
| Bore | 4.1 in / 105 mm |
| Stroke | 5.3 in / 135 mm |
| Displacement | 427.8 in³ / 7 l |
| Compression Ratio | 16.0:1 |
| Aspiration | Turbocharged |
| Fuel System | Direct Injection |
| Governor Type | Mechanical |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 98.8 in / 2510 mm |
| Width - Maximum | 1010 mm / 39.8 in |
| Height - Maximum | 64.6 in / 1640 mm |
| Dry Weight - Genset (maximum) | 3446 lb / 1563 kg |
