C4.4 | DE125AE0
- Bore
- 4.1 in / 105 mm
- Stroke
- 5 in / 127 mm
- Displacement
- 268.5 in³ / 4.4 l

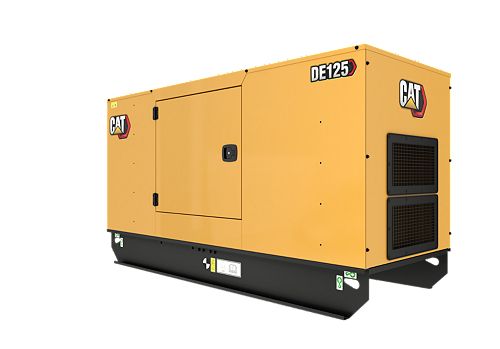

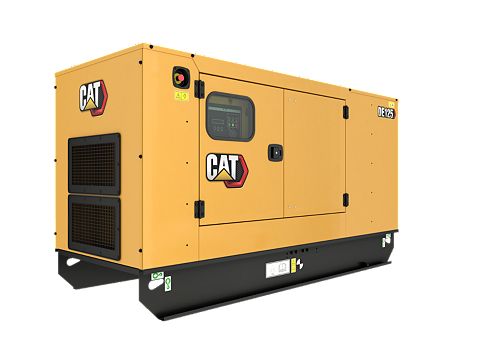

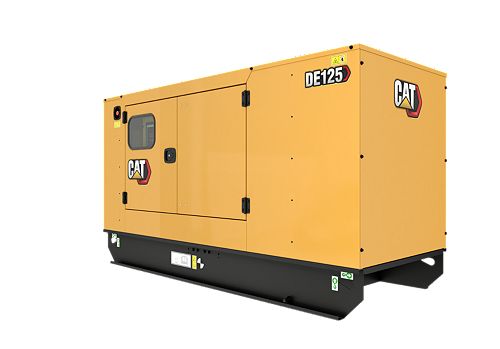

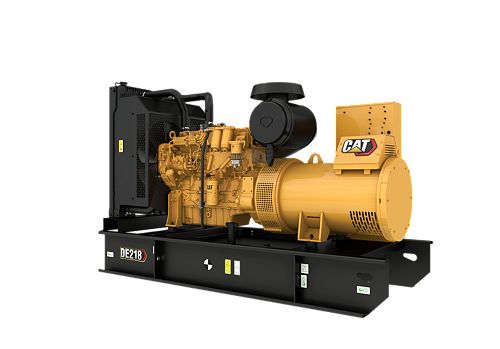

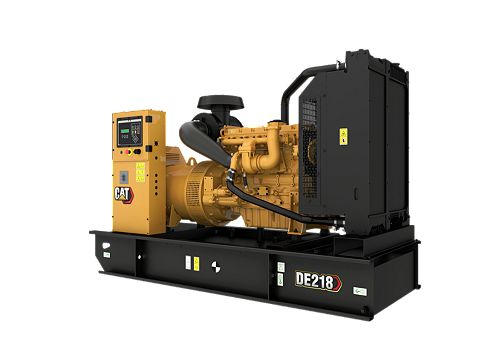

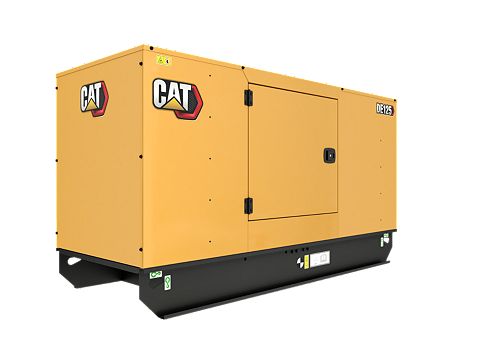

Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 100.0 ekW |
| Minimum Rating | 90.4 ekW |
| Emissions/Fuel Strategy | Non-Certified Emissions |
| Voltage | 220 to 380 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby, Prime |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® C4.4 |
| Bore | 4.1 in / 105 mm |
| Stroke | 5 in / 127 mm |
| Displacement | 268.5 in³ / 4.4 l |
| Compression Ratio | 18.23:1 |
| Aspiration | Turbocharged |
| Fuel System | Direct Injection |
| Governor Type | Electronic |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 78 in / 1980 mm |
| Width - Maximum | 35 in / 890 mm |
| Height - Maximum | 54.2 in / 1376 mm |
| Dry Weight - Genset (maximum) | 2348 lb / 1065 kg |
