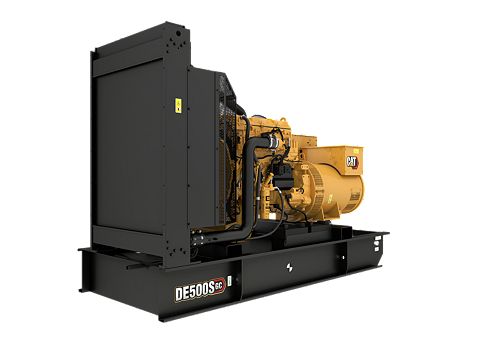

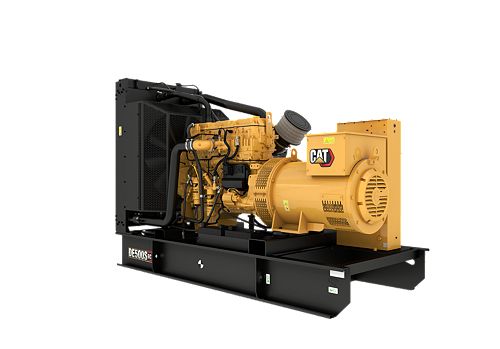

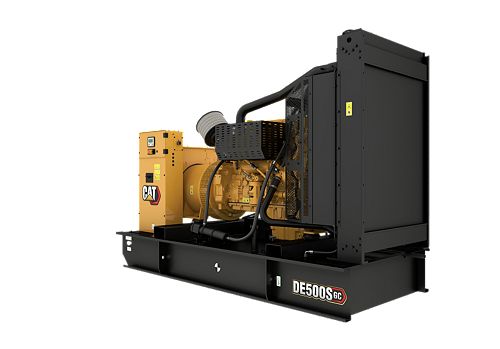

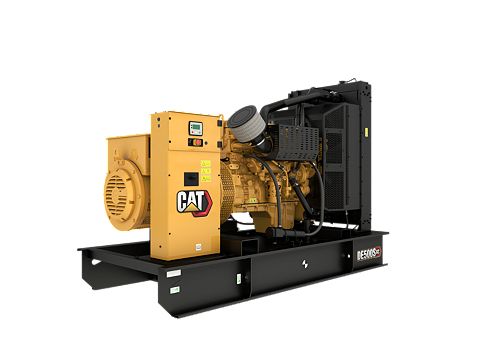

DE500S GC (60 Hz)

Bore: 5.1 in / 130 mm
Stroke: 6.2 in / 157 mm
Displacement: 763 in³ / 12.5 l

Producing reliable power 500 ekW at 60 Hz, our DE500S GC generator set powerd by C13 diesel engine designed to ISO 8528-5 transient response requirements.

Loan Calculator Credit Application

Build & Quote

DE500S GC, 60 Hz, 500 kW, Spec Sheet Electric Power Ratings Guide

Specifications
Equipment

Generator Set Specifications
Maximum Rating	500 ekW
Minimum Rating	500 ekW
Emissions/Fuel Strategy	Non Regulated
Voltage	220 to 480 Volts
Frequency	60 Hz
Speed	1800 RPM
Duty Cycle	Standby

Engine Specifications
Engine Model	C13 In-line 6, 4-cycle diesel
Bore	5.1 in / 130 mm
Stroke	6.2 in / 157 mm
Displacement	763 in³ / 12.5 l
Compression Ratio	15.8:1
Aspiration	Turbocharged Air-to-Air Aftercooled
Fuel System	EUI
Governor Type	Adem™A4

Generator Set Dimensions
Length - Maximum	122 in / 3100 mm
Width - Maximum	52.7 in / 1338 mm
Height - Maximum	85.4 in / 2168 mm
Dry Weight - Genset (maximum)	6693 lb / 3036 kg

Standard Equipment

Engine
- Cat® C13 Inline 6 cylinder, 4 stroke diesel
Control Panels
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
Electrical Options
- 3 Pole Circuit breaker
- Neutral earth link
- 24 Volt battery with rack and cables
Air inlet system
- Air cleaner; light duty with disposable element
Lube system
- Lubricating oil
- Oil drain line with valve
Mounting system
- Captive linear vibration isolators
- Lifting provision and drag points
General
- Engine and alternator pre paint, Caterpillar yellow
- Engine and alternator pre-paint, Caterpillar yellow
Generator and Attachments
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
Packaged Generator Set
- Service indicator
- Radiator package mounted
- Disposable air filter
- Coolant level sight gauge
- Coolant drain line with valve
- Low coolant level sensor
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Lubricating oil
- Oil cooler
- Oil drain valves
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Starting / Charging System
- 24V battery with rack and cables

Optional Equipment

Control panel
- Speed and Voltage adjust potentiometers
- PLG 4G/3G/Ethernet
- Annunciator
- Emergency E-Stop
Enclosure

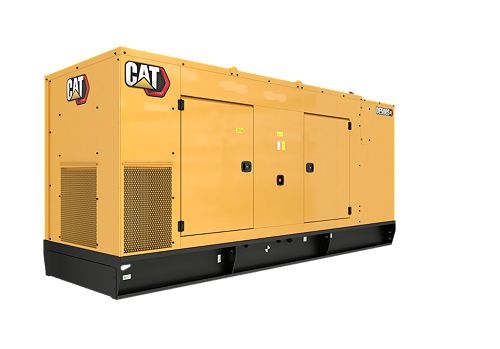

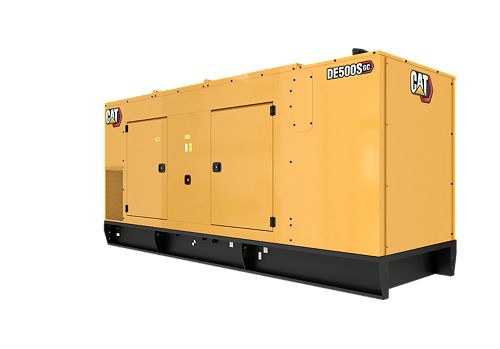

- Cat GC enclosure
Electrical Options
- 4 Pole Circuit breaker
- Auxiliary contacts
- Padlockable circuit breaker
- Battery charger
- Wet battery
Circuit breakers
- Shunt trip for IEC circuit breaker
- 4 Pole (IEC-100% rated) Circuit breaker - Motorised
- Circuit breaker (IEC) Auxiliary contacts
Alternator
- Space heater
- AVR
Exhaust System
- Industrial silencer
- 10 dBA Attenuation silencer
- 6 and 8 inch flange GP
- Flexible 8 inch exhaust fittings
- 6 and 8 inch elbow kit
- 10, 25 and 35 dBA attenuation
Air inlet system
- Single stage air filter
- Dual element air filter
Certifications
- EU Certificate of Conformance (CE)
- EAC Certification
Extended service coverage
- 3, 4, 5 and 10 Years
Fuel System
- Dual wall 8 hour fuel tank
- Single wall 8 hour fuel tank with spill containment
- Low fuel level shutdown
- Low and high fuel level alarms
- Fuel transfer system controls
- Manual fuel transfer pump
- Integral dual wall fuel tank base
Generator and Attachments
- LC frame generator
- Ingress protection
- LC CIP generator
- A Frame CIP generator
- Permanent magnet excitation (PMG) generator
- A Frame oversize generator
- Space heaters
Lube System
- Manual sump pump
Mounting System
- Narrow skid base
starting / Charging System
- Jacket water heater
- Battery disconnect switch
- 5 Amp single Battery charger
