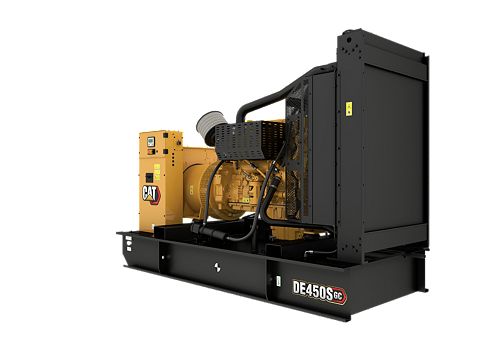

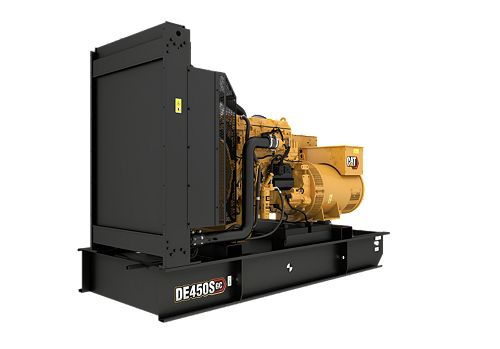

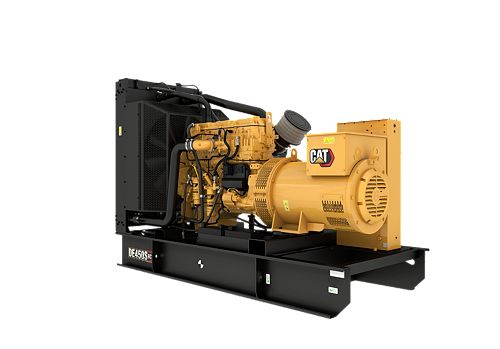

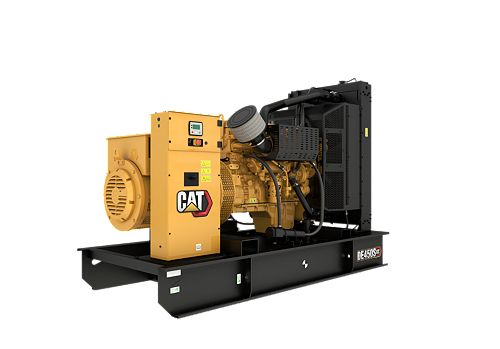

DE450S GC (60 Hz)

Bore
5.1 in / 130 mm
Stroke
6.2 in / 157 mm
Displacement
763 in³ / 12.5 l

Producing reliable power 450 ekW at 60 Hz, our DE450S GC generator set powerd by C13 diesel engine designed to ISO 8528-5 transient response requirements.

Generator Set Specifications
Maximum Rating 450 ekW
Minimum Rating 450 ekW
Emissions/Fuel Strategy Non Regulated
Voltage 220 to 480 Volts
Frequency 60 Hz
Speed 1800 RPM
Duty Cycle Standby
Engine Specifications
Engine Model C13 In-line 6, 4-cycle diesel
Bore 5.1 in / 130 mm
Stroke 6.2 in / 157 mm
Displacement 763 in³ / 12.5 l
Compression Ratio 15.8:1
Aspiration Turbocharged Air-to-Air Aftercooled
Fuel System EUI
Governor Type Adem™A4
Generator Set Dimensions
Length - Maximum 122 in / 3100 mm
Width - Maximum 52.7 in / 1338 mm
Height - Maximum 85.4 in / 2168 mm
Dry Weight - Genset (maximum) 6446 lb / 2924 kg

Standard Equipment

  • Engine
    • Cat® C13 Inline 6 cylinder, 4 stroke diesel
  • Control Panels
    • GCCP 1.1
  • Governor
    • Mechanical governor
  • Alternator
    • A Frame standard alternator
  • Fuel Storage
    • Single wall 8 hour fuel tank
  • Cooling System
    • Radiator and cooling fan with guards
    • Fan drive, battery charging alternator drive
  • Electrical Options
    • 3 Pole Circuit breaker
    • Neutral earth link
    • 24 Volt battery with rack and cables
  • Air inlet system
    • Air cleaner; light duty with disposable element
  • Lube system
    • Lubricating oil
    • Oil drain line with valve
  • Mounting system
    • Captive linear vibration isolators
    • Lifting provision and drag points
  • General
    • Engine and alternator pre paint, Caterpillar yellow
    • Engine and alternator pre-paint, Caterpillar yellow
  • Lube System
    • Oil drain valves
  • Mounting System
    • Includes lifting provisions and termination points for coolant and lube oil drain lines
    • Captive linear vibration isolators between base and engine-generator
  • Starting / Charging System
    • 24V battery with rack and cables

Optional Equipment

  • Control panel
    • Speed and Voltage adjust potentiometers
    • PLG 4G/3G/Ethernet
    • Annunciator
    • Emergency E-Stop
  • Enclosure

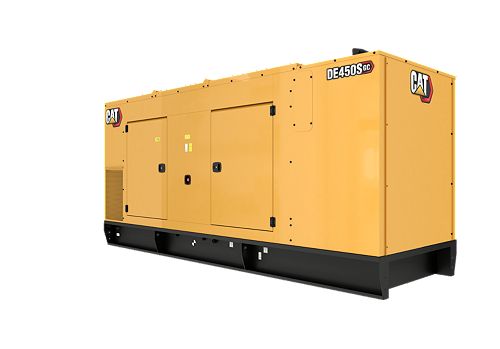

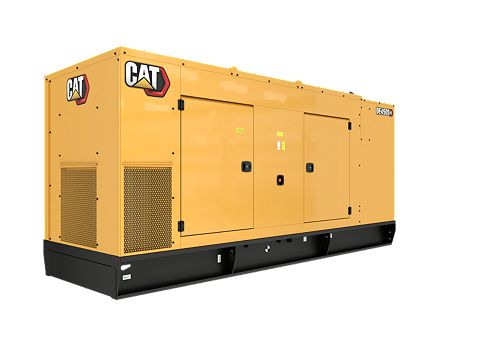

    • Cat GC enclosure
  • Electrical Options
    • 4 Pole Circuit breaker
    • Auxiliary contacts
    • Padlockable circuit breaker
    • Battery charger
    • Wet battery
  • Alternator
    • Space heater
    • AVR
  • Fuel System
    • Dual wall 8 hour fuel tank
    • Single wall 8 hour fuel tank with spill containment
    • Low fuel level shutdown
    • Low and high fuel level alarms
  • Exhaust System
    • Industrial silencer
    • 10 dBA Attenuation silencer
  • Air inlet system
    • Single stage air filter
    • Dual element air filter
  • Certifications
    • EU Certificate of Conformance (CE)
    • EAC Certification
  • Extended service coverage
    • 3, 4, 5 and 10 Years
