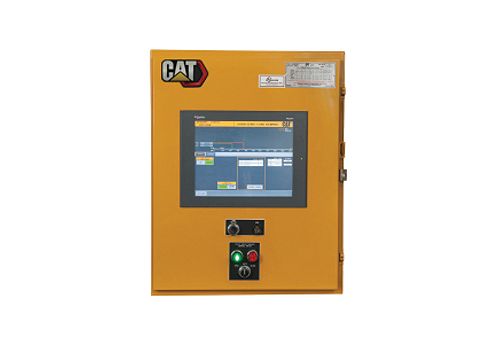

EMCP 4.4 Master Control Panel
The EMCP 4.4 Master Control Panel is a wall mounted system that monitors and controls up to eight engine generators for operation in parallel with or without a single utility source.
| Technical Summary | |
|---|---|
| Configuration | Remote monitoring and control for up to 8 generator sets via high-speed network. Enables paralleling a group of EMCP 4.4 equipped generator sets to a single utility source. |
| Modes of Operation | Emergency standby, island, utility paralleling |
| Application | LV and MV (208V - 38 kV) |
| Generator Protective Devices | |
|---|---|
| ANSI Protective Devices | 15/25, 27/59, 81 O/U, 32, 40, 50, 51 |
| Utility Protective Devices | |
|---|---|
| ANSI Protective Devices | 15/25. 27/59, 81 O/U, 32,47 (Industrial Grade) |
| Environmental Parameters | |
|---|---|
| Certifications | IBC, CBC, UBC & OSHPD Certified |
| Control Panel Enclosure | NEMA 1 wall-mounted construction |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to +60°C |
| Low Voltage Standards | NEMA SG-5, CSA, ANSI C37.51, ANSI C37.20.1, UL 1558 or UL 891, NFPA 110, NFPA 99 and NFPA 70 |
| Medium Voltage Standards | NEMA SG-5, ANSI / IEEE C37.20.2, CSA-C22.2 No. 31-M89, EEMAC G8-3.2, NFPA 70, NFPA 99 and NFPA 1110 |
