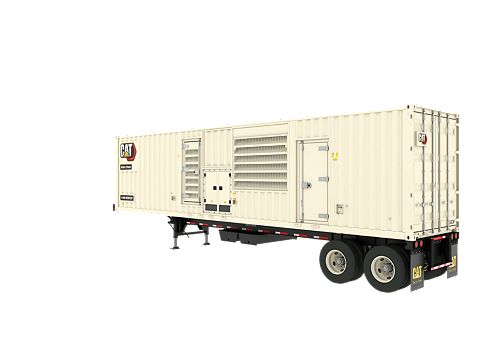

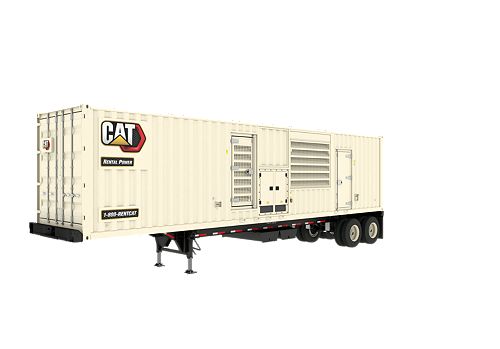

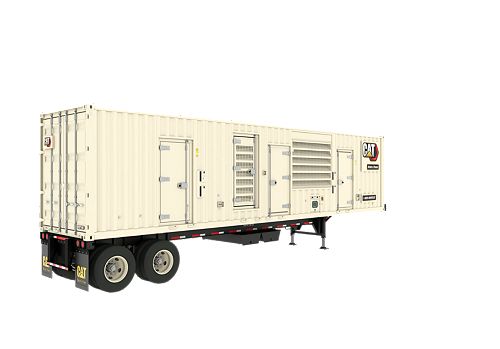

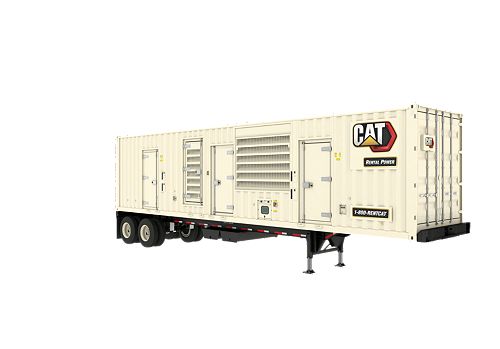

XQ1140 Tier 4 Final

Height - Without Trailer
114 in / 2896 mm
Length - Without Trailer
480 in / 12192 mm
Width - Without Trailer
96 in / 2438 mm

The XQ1140 offers multiple modes of operation to meet your unique needs – even as they change. By incorporating two C18, EPA Tier 4 Final compliant diesel generator sets, this package can provide power output from the generator sets in parallel, N+1 power or independent power from each generator set. That versatility minimizes your operating costs always with the XQ1140 reliability and durability.

Generator Set
Rating Prime 910 ekW (1136 kVA)
Frequency 60 Hz
Voltage 120 - 600V
Rating Standby 1000 ekW (1250 kVA)
Engine
Engine Cat C18
Fuel Diesel
Dimensions
Height - Without Trailer 114 in / 2896 mm
Length - Without Trailer 480 in / 12192 mm
Width - Without Trailer 96 in / 2438 mm
Weight with Lube Oil and Coolant, Without Trailer 50107 lb / 22728 kg
Fuel Consumption
100% Load 60Hz 66.4 gal/hr / 252 l/hr
75% Load 60Hz 52.4 gal/hr / 198 l/hr
50% Load 60Hz 38 gal/hr / 144 l/hr
100% Load 60Hz 71.8 gal/hr / 272 l/hr
75% Load 60Hz 56.6 gal/hr / 214 l/hr
50% Load 60Hz 41 gal/hr / 156 l/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ All Ratings 76 dB(A)

Standard Equipment

  • Cat C18 Diesel Engines
    • Two Cat C18 Diesel Engines
    • Reliable, rugged, durable design
    • EPA Tier 4 Final and CARB Emissions Certified
    • Turbocharged Aftercooled
    • Aftertreatment module.
      DEF System
  • Alternator and Alternator attachments
    • 3 Phase, brushless, 12 lead, Permanent Magnet Excited
    • LC6134G Frame
    • Anti-condensation space heaters
    • Integrated voltage regulator (IVR) with VAR/PF control
    • Sized for 105°C temperature rise at 40°C ambient
  • Control Panels
    • Dual EMCP 4.4 Generator-Set Mounted Digital Controllers
    • Externally accessible Color Touch-Screen HMI Control Center
    • Manual and automatic paralleling capability
  • Governing system
    • Electrical governing system ADEM™ A4
  • Cat Connect remote monitoring
    • Provides package monitoring and management
  • Cooling System
    • Vertically mounted radiator with vertical airdischarge from the container
    • Provides 47°C ambient capability at Prime rating
  • Charging / Starting System
    • UL Listed and CSA Certified 240V, 20 Amp battery charger
    • Charging alternator; 24V-80A, heavy duty withintegral regulator and belt guards
    • Solar maintainer for batteries
    • Single electric starting motor, 24V per engine
  • Fuel System
    • 630-gal (2385 L) double-wall fuel tank, UL 142and ULC 601 Listed and complies with TransportCanada requirements, internal and external fuel fill
    • Fuel tanks connected by fuel transfer system withfilter to allow both engines access to all fuel on-board
    • Primary and secondary fuel filters
    • Fuel cooler
  • Air inlet system
    • Heavy-duty air element, canister type
  • Distribution
    • Externally-accessible, Vibration Isolated, 3600A Frame, 1000 Ka, IC, 3-pole electrically operated breaker with lock out tag out provision.
    • Busbar connections
    • Dual customer connections
  • Sound Attenuated Container
    • 40' ISO high cube container
    • Sound level is 76 dB(A) at 7 meters per SAEJ1074 measured at 75% prime load
    • Sound attenuated air intake louvers and fivelockable personnel doors with panic release
  • Lube System
    • Pump, integral oil cooler, lube oil, filter, filler anddipstick, and oil sampling valve
    • Oil drain line with internal brass ball valve routedto connection point accessible from exterior
  • General
    • Factory tested and inspected
    • Full manufacturer’s warranty
    • UL, NEMA, ISO, and IEEE standards

Optional Equipment

  • Trailer
    • Two-axle, air-ride chassis with anti-lock brake system
