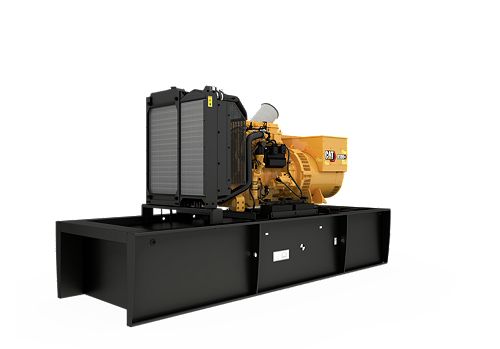

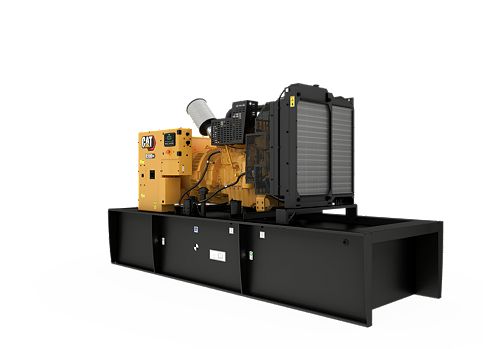

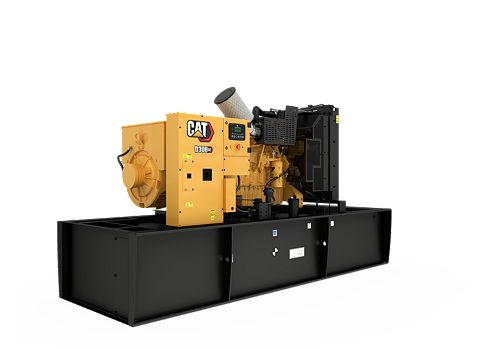

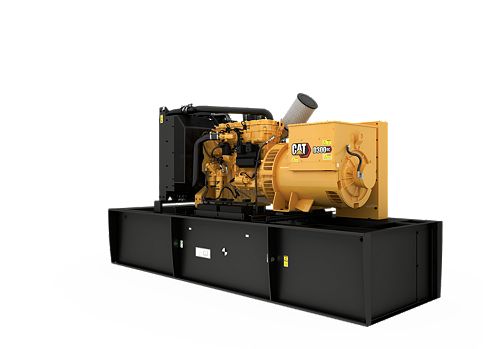

D300 GC

Specifications
Equipment

Generator Set Specifications
Maximum Rating	300 ekW
Minimum Rating	300 ekW
Emissions/Fuel Strategy	EPA Stationary Emergency
Voltage	208 to 600 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby

Engine Specifications
Engine Model	Cat® C9 In-line 6, 4-cycle diesel
Bore	4.4 in / 112 mm
Stroke	5.9 in / 149 mm
Displacement	538 in³ / 8.8 l
Compression Ratio	16.3:1
Aspiration	Turbocharged Air-to-Air Aftercooled
Fuel System	HEUI
Governor Type	Adem™A4

Generator Set Dimensions
Length - Maximum	155.5 in / 3950 mm
Width - Minimum	56.3 in / 1430 mm
Width - Maximum	56.7 in / 1440 mm
Height - Minimum	67.2 in / 1706 mm
Height - Maximum	86.7 in / 2202 mm
Dry Weight - Genset (minimum)	5518.2 lb / 2503 kg
Dry Weight - Genset (maximum)	6929.1 lb / 3143 kg

Standard Equipment

Air Inlet System
- Aftercooler core
- Turbocharger
- Air cleaner - Non canister, disposable
Control Panel
- GCCP 1.2
Cooling System
- Jacket water pump, gear driven, centrifugal
- Thermostats and housing
- Coolant drain valve
- Radiator sight gauge
- Blower fan and fan drive with guards
- Radiator, package mounted
Exhaust System
- Exhaust manifold - dry
Fuel System
- Integral tank base, 24 hours, UL142
- Fuel priming pump
- Engine fuel transfer pump
- Primary fuel filter w/integral water separator and secondary filter, spin on
Generator Set
- Complete system designed & built at ISO 9001:2000 certified facilities
- All protective devices and control functions simulated and checked
- Factory tested to design specifications at full load conditions
Generators and Generator Attachments
- IP23 Protection
- 12 Leads
- Insulation system, Class H
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- Voltage regulator (single phase sensing)
- Easy access to AVR and terminals
- Terminal box, IP22 RHS facing, bottom cable entry
- Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Shallow oil pan
- Oil cooler
- Fumes disposal to front of radiator
- Oil drain with valve
- Oil filler and dipstick
- Oil filter, spin on
- Lubricating oil, CK-4 (10W-30)
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Protection
- Safety shutoff - High water temperature
- Safety shutoff - Low oil pressure
- Safety shutoff - Overspeed
Starting/Charging System
- 24-volt electric starting motor
- 24V, 45 Amp Charging alternator
General
- Lifting eyes
- Vibration damper
- Parts book

Optional Equipment

Air Inlet System
- Air cleaner (Non canister disposable)
Bases, Mounting & Fuel Tanks
- Integral tank base, 24 hours, UL142
- Audio & visual fuel alarm (@90% fuel level)
- Wide Base - Skid
- Fuel tank pill pipe & lockable cap
Circuit breaker
- 400A LSI
- 600A LSI
- 1200A LSI
- 800A LS/I
- Auxiliary contacts
- 600A LS/I
- 1200A LS/I
- 400A LS/I
- 800A LSI
Control System
- Audible alarm Gp
- 16 -light NFPA 99/110 Annunciator
- Twist release, Red button emergency stop
- Ground fault relay
- 100A Load center
- Product link remote monitoring hardware
- 20A GFCI (Ground Fault Circuit Interrupter)
- Volt free contacts
Enclosures
- Sound attenuated Level 2 enclosure (White)
- AC & DC Source lights
- E-Stop
Exhaust System
- 6" Muffler - 25 dBA attenuation
- Manifold and turbocharger guards
- Flexible exhaust connection
Generator
- Space heater
- Permanent magnet excitation (PMG) generator
Starting System
- Battery charger (UL Certified)
- Jacket water heater
- Standard battery set: 1000 CCA, 90 amp/hr.
General
- CSA Certification
- Extended Service Coverage
- UL2200 Certification
- Generator test report

Standard Equipment

Optional Equipment
