D550 GC
- Bore
- 5.7 in / 145 mm
- Stroke
- 7.2 in / 183 mm
- Displacement
- 1106 in³ / 18.1 l

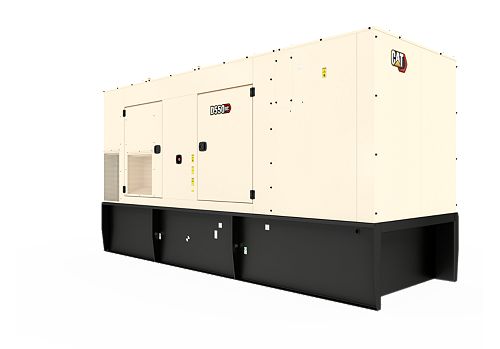

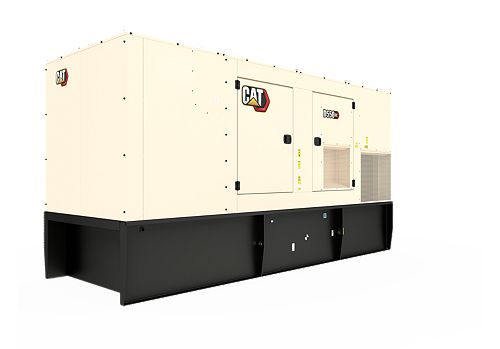

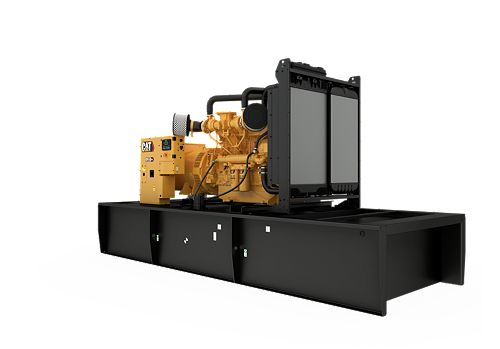

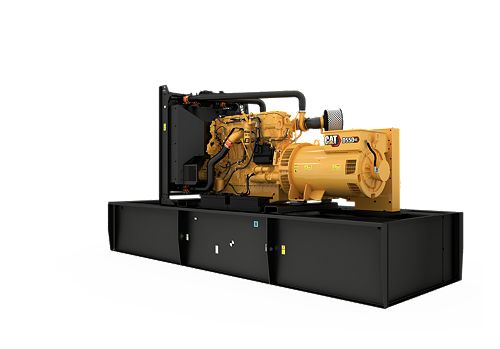

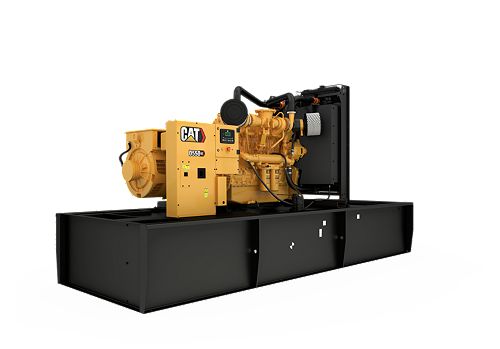

The D550 GC diesel generator sets were developed to meet your needs in a standby application. Producing reliable power of 550 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D550 GC generator sets meet EPA Stationary Emergency (Tier 2) certified emissions requirements.
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 550 ekW |
| Minimum Rating | 550 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency |
| Voltage | 480 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® C18 In-line 6, 4-cycle diesel |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Displacement | 1106 in³ / 18.1 l |
| Compression Ratio | 14.5:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | ADEM™A4 |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 196.1 in / 4980 mm |
| Width - Maximum | 73.4 in / 1865 mm |
| Height - Minimum | 79.1 in / 2009 mm |
| Height - Maximum | 100.9 in / 2563 mm |
| Dry Weight - Genset (minimum) | 8776.6 lb / 3981 kg |
| Dry Weight - Genset (maximum) | 11464 lb / 5200 kg |
