D350 GC
- Bore
- 5.1 in / 130 mm
- Stroke
- 6.2 in / 157 mm
- Displacement
- 763 in³ / 12.5 B

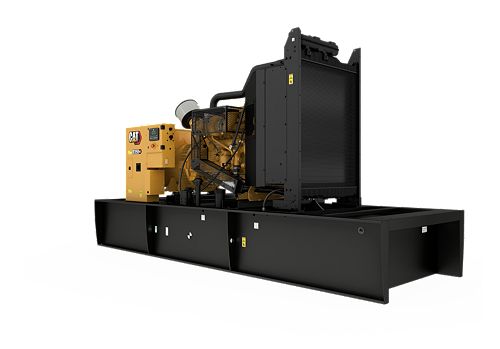

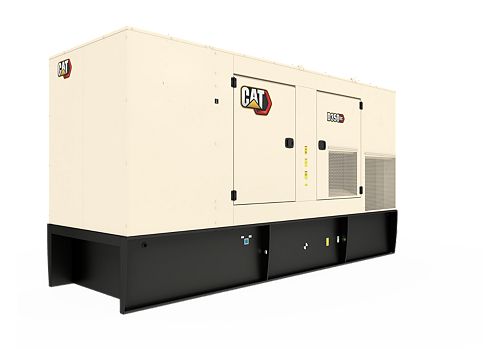

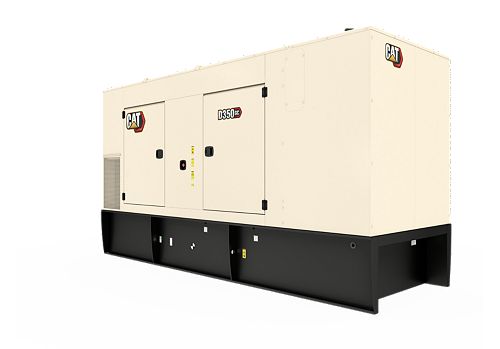

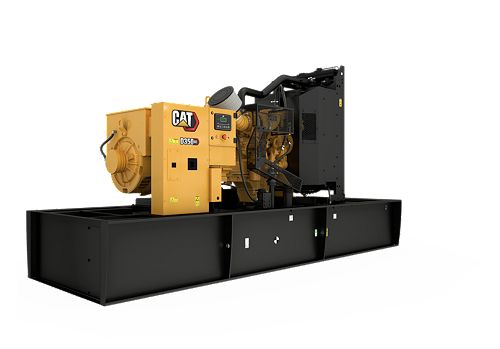

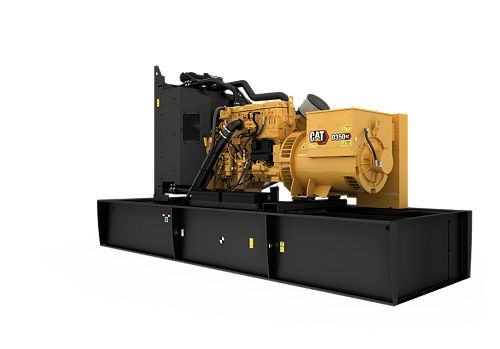

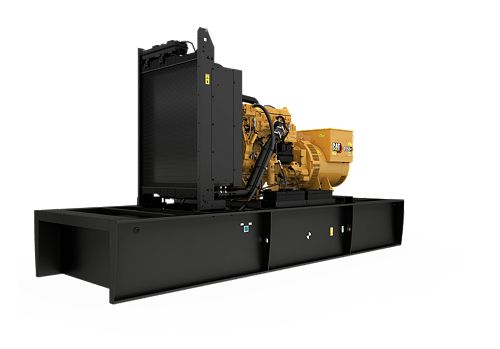

The D350 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 350 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D350 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 350 ekW |
| Minimum Rating | 350 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency |
| Voltage | 480 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® C13 In-line 6, 4-cycle diesel |
| Bore | 5.1 in / 130 mm |
| Stroke | 6.2 in / 157 mm |
| Displacement | 763 in³ / 12.5 B |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | ADEM™A4 |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 182.8 in / 4625 mm |
| Width - Maximum | 64.2 in / 1630 mm |
| Height - Minimum | 80.3 in / 2039 mm |
| Height - Maximum | 96.7 in / 2456 mm |
| Dry Weight - Genset (minimum) | 6929.1 lb / 3143 kg |
| Dry Weight - Genset (maximum) | 7255.4 lb / 3291 kg |
