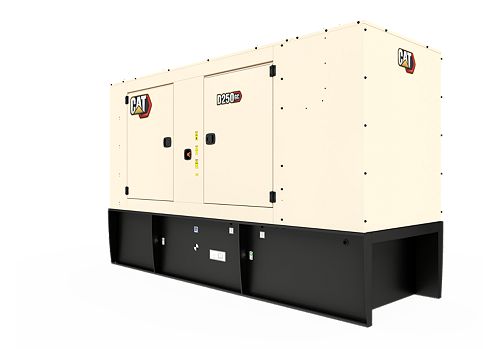

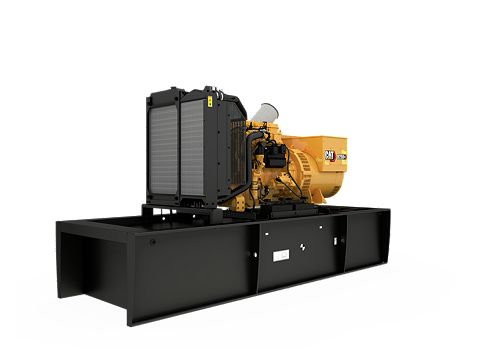

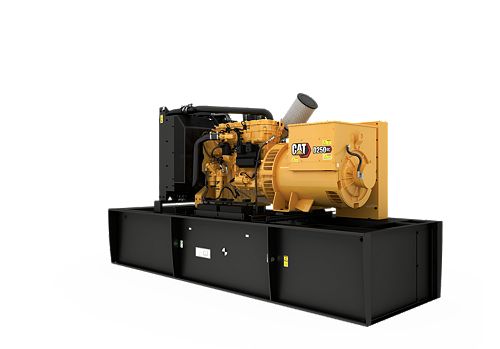

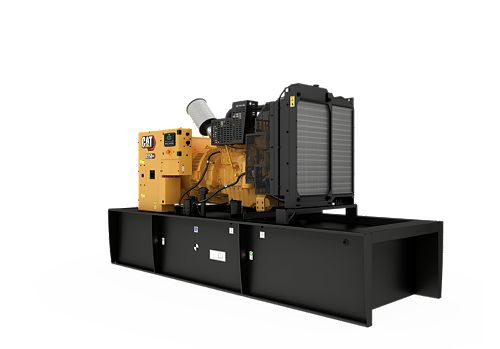

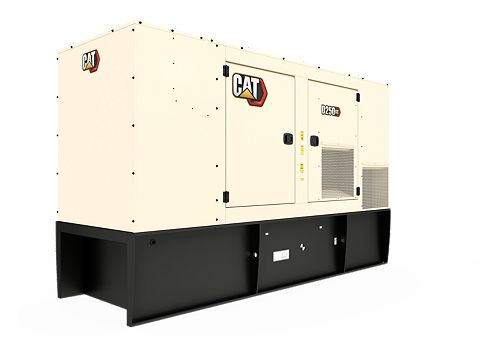

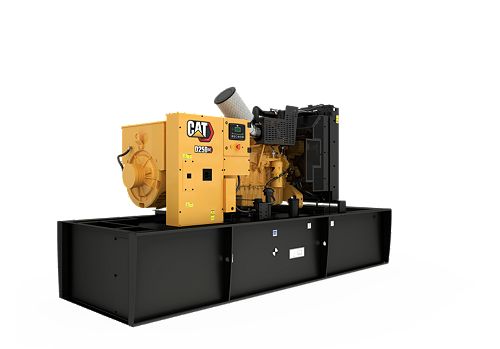

D250 GC
- Bore
- 4.4 in / 112 mm
- Stroke
- 5.9 in / 149 mm
- Displacement
- 538 in³ / 8.8 l
Producing reliable power of 250 ekW at 60 Hz, our D250 GC diesel generator set are designed to ISO 8528-5 transient response requirements. The D250 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 250 ekW |
| Minimum Rating | 250 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® C9 In-line 6, 4-cycle Diesel |
| Bore | 4.4 in / 112 mm |
| Stroke | 5.9 in / 149 mm |
| Displacement | 538 in³ / 8.8 l |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | HEUI |
| Governor Type | Adem™A4 |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 155.5 in / 3950 mm |
| Width - Minimum | 56.3 in / 1430 mm |
| Width - Maximum | 56.7 in / 1440 mm |
| Height - Minimum | 67.2 in / 1706 mm |
| Height - Maximum | 86.7 in / 2202 mm |
| Dry Weight - Genset (minimum) | 5324.2 lb / 2415 kg |
| Dry Weight - Genset (maximum) | 6735.1 lb / 3055 kg |
