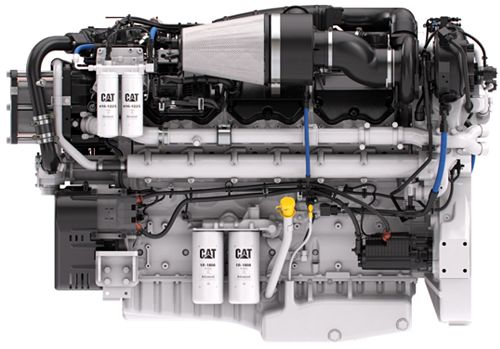

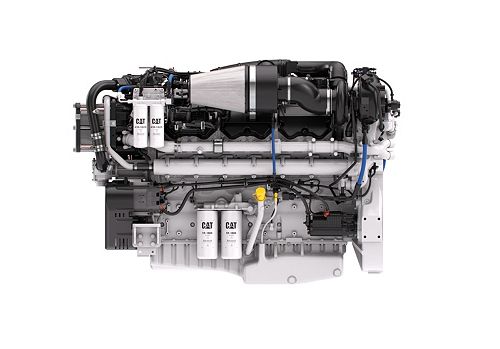

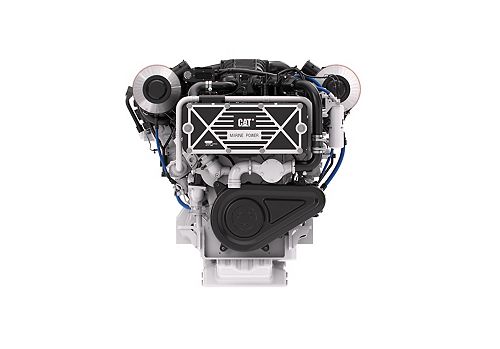

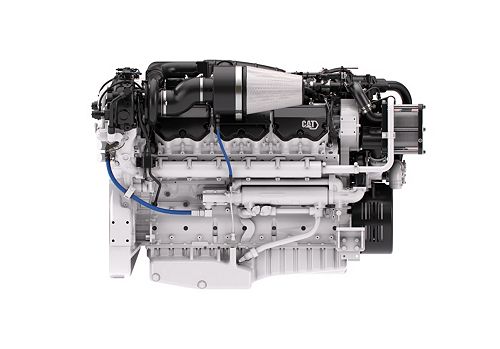

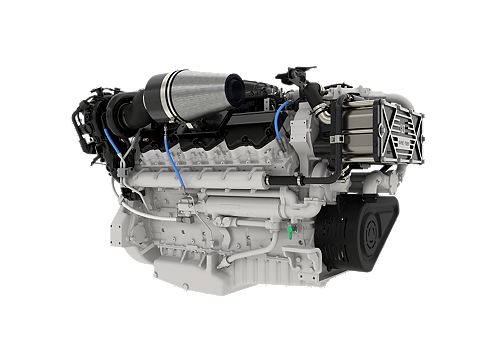

C32B Twin Turbo
- Bore
- 5.71 in / 145 mm
- Stroke
- 6.38 in / 162 mm
- Displacement
- 1959 in³ / 32.1 l
The Cat® C32B High Performance (HP) twin turbo engine is a powerful and versatile solution for commercial and high performance applications, offering a rated power range of 2000 bhp. It meets stringent emissions standards, including Tier 3 Recreational, EU RCD, and China Stage II. The Cat C32B engine has an optimized design to enhance power density, deliver more power without significantly increasing size or weight. Additionally, its improved durability* reduces maintenance needs and extends operational life, thereby lowering the total cost of ownership. This combination of high-power output, strict emissions compliance, and cost-effective durability makes the Cat C32B engine an excellent choice.
* Compared to previous C32 engines
| Ratings | |
|---|---|
| Power Range | 2000 bhp (1491 bkW) |
| Engine | |
|---|---|
| Speed Range | 2300 rpm |
| Emissions | IMO II, U.S. EPA Tier 3 Recreational, RCD, China Stage II |
| Aspiration | TTA |
| Bore | 5.71 in / 145 mm |
| Stroke | 6.38 in / 162 mm |
| Displacement | 1959 in³ / 32.1 l |
| Rotation from Flywheel End | Counterclockwise |
| Configuration | Vee 12, 4-Stroke-Cycle Diesel |
| Dimensions & Weights | |
|---|---|
| Width | 57.8 in / 1469 mm |
| Dry Weight | 6934 lb / 3145 kg |
| Length | 82.9 in / 2106 mm |
| Height | 56.9 in / 1445 mm |
| Engine Specifications | |
|---|---|
| Stroke | 6.38 in / 162 mm |
