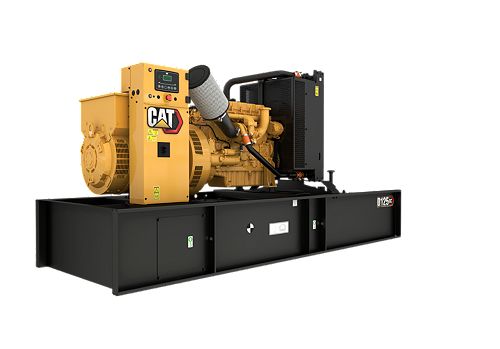

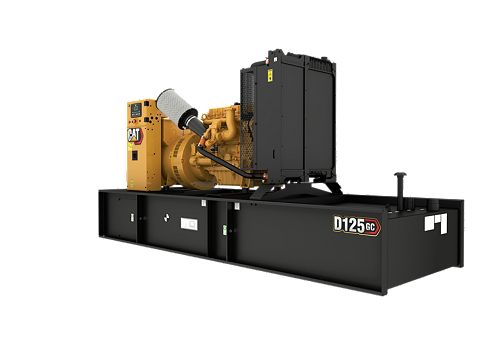

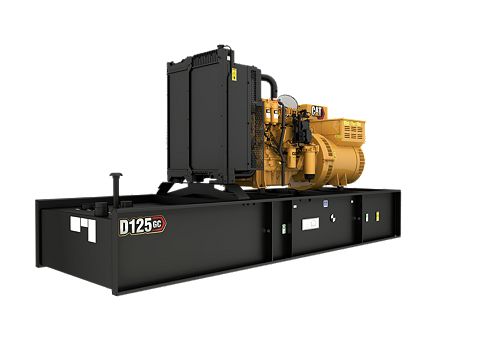

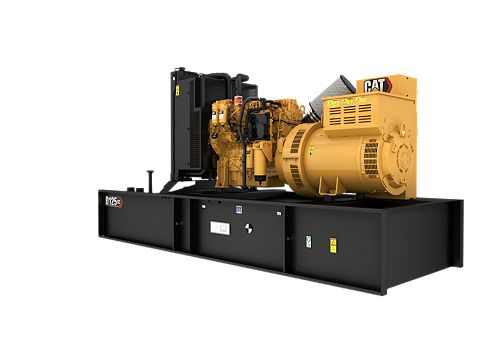

D125 GC

Bore
4.1 in / 105 mm
Stroke
5.3 in / 135 mm
Displacement
428 in³ / 7.01 l

Producing reliable power of 125 ekW at 60 Hz, our D125 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D125 GC generator sets are available with a choice of emissions levels.

Generator Set Specifications
Maximum Rating 125 ekW
Minimum Rating 125 ekW
Emissions/Fuel Strategy U.S. EPA Cert., Tier 3
Voltage 208 to 600 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C7.1 I-6, 4-Cycle Diesel
Bore 4.1 in / 105 mm
Stroke 5.3 in / 135 mm
Displacement 428 in³ / 7.01 l
Compression Ratio 16.7:1
Aspiration Turbocharged, Air to Air Aftercooled
Fuel System Electronic, Common Rail
Governor Type ADEM™A4
Generator Set Dimensions
Length - Maximum 103.7 in / 2634 mm
Width - Maximum 51.2 in / 1300 mm
Height - Maximum 52.2 in / 1402 mm
Dry Weight - Genset (maximum) 3099 lb / 1406 kg

Standard Equipment

  • Air Inlet System
    • Air cleaner; light duty with disposable element
  • Control Panels
    • GCCP 1.2 Control panel
  • Cooling System
    • Fan drive, battery charging alternator drive
    • Coolant drain line with valves
    • Caterpillar extended life coolant
    • Radiator and cooling fan with guards
  • Generator and Generator Attachments
    • Segregated low voltage (AC/DC) wiring panel
    • IP23 Protection
    • Circuit breaker, IEC, 3 pole, mounted in tower panel
    • Voltage regulator (single phase sensing)
    • Tower panel, IP22, bottom cable entry
    • 12 Leads
  • Exhaust System
    • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
  • Fuel System
    • Base, formed steel with single wall integral 24-hour fuel tank
    • Standard open set fuel tank/base supplied
  • Lube System
    • Oil drain line with valve
    • Lubricating oil
  • Mounting System
    • Termination points for coolant and lube oil drain lines
    • Includes lifting provision and drag points
    • Captive linear vibration isolators between base and engine-generator
  • Starting / Charging System
    • 24V battery with rack and cables
  • Governing System
    • Mechanical and electrical governing system - model dependent
  • General
    • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

  • Alternator System
    • Alternator removal
    • Optional LC Frame alternator
    • R Frame auxiliary winding: R2273L4 SE aux alt 07, aux alt 08 and aux alt 10
    • Permanent magnet excitation (PMG)
    • Anti-condensation heater
    • 3 Phase sensing
    • Quatrature droop king
  • Circuit breakers
    • Padlockable breaker device
    • 4 Pole 250A, 400A and 630A Circuit breakers
  • Control Panel Options
    • Battery charger
    • Control panel heater
    • Earth fault (2 wire only)
    • Volt free contacts
    • Emergency stop with key
    • Speed adjust potentiometer
    • Earth leakage (2 wire only)
    • Overload shutdown via breaker
    • Speed adjust contacts
    • Panel mounted audible alarm
  • Control System
    • Volt free contacts for generator set running
    • Volt free contacts for common alarm
    • Static battery charger
    • GCCP 1.2
  • Cooling System
    • Coolant heater
    • Low coolant temperature
    • Low coolant level shutdown
  • Enclosures

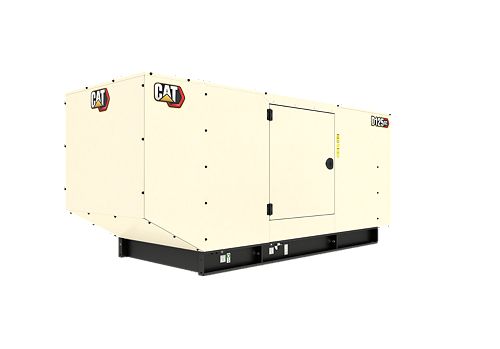

    • Sound attenuated level 2 enclosure
  • Mounting Options
    • Silencer installation kit
    • Residential silencer
    • Battery removal
    • Industrial silencer removal
    • Electronic governor
  • Fuel Systems
    • Low fuel level shutdown
    • Open set narrow tankbase
    • Skidbase for CALG enclosure sets
    • DEFRA bunded fuel tank
    • Low fuel level alarm
    • Compact skidbase for open sets
    • High fuel level alarm
  • Test Reports
    • PGS Test report @ 0.8 power factor
    • PGS Test report @ 1.0 power factor
  • General
    • Stone guards/radiator trans flange
  • Global Certifications
    • Certification for CIS
  • Power Termination
    • Circuit breaker, IEC, 4 pole
  • Accessories / Miscellaneous
    • Packing case - compact set
    • Packing case - canopied set
