D60 GC
- Bore
- 4.1 in / 105 mm
- Stroke
- 5 in / 127 mm
- Displacement
- 269 in / 4.4 l

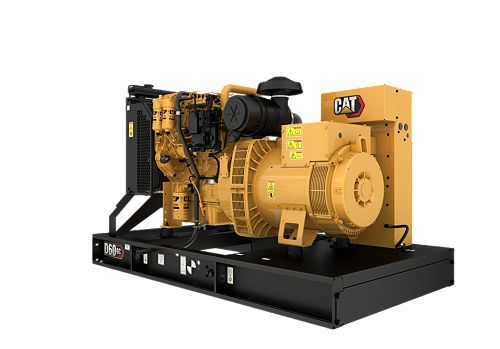

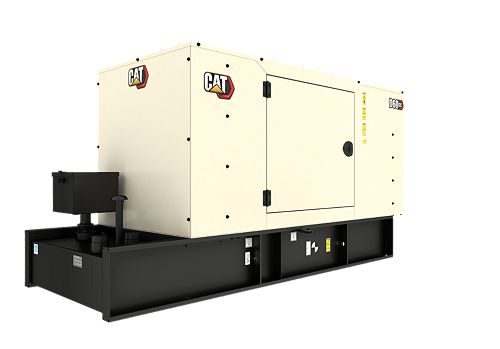

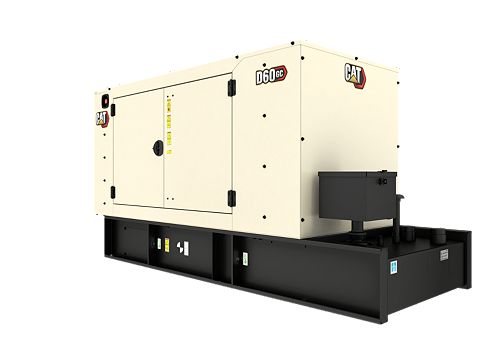

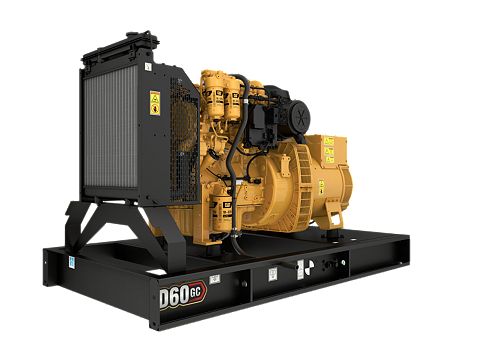

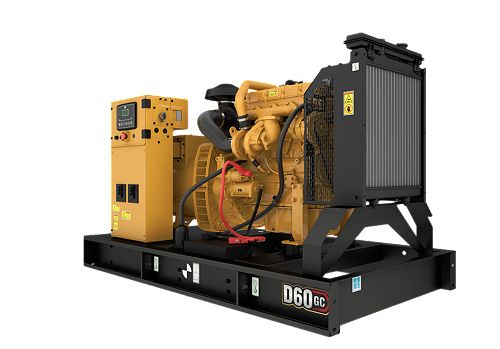

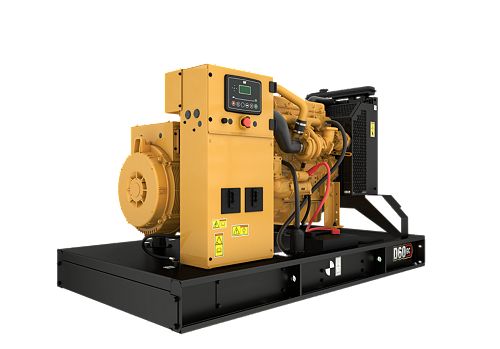

Producing reliable power of 60 ekW at 60 Hz, our D60 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D60 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 60 ekW |
| Minimum Rating | 60 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | C4.4, In-line 4, 4-cycle diesel |
| Bore | 4.1 in / 105 mm |
| Stroke | 5 in / 127 mm |
| Displacement | 269 in / 4.4 l |
| Compression Ratio | 16.7:1 |
| Aspiration | Turbocharged |
| Fuel System | Electronic (adjustable) |
| Governor Type | Mechanical, ADEM™A4 |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 77.2 in / 1962 mm |
| Width - Maximum | 43.3 in / 1100 mm |
| Height - Maximum | 48 in / 1220 mm |
| Dry Weight - Genset (maximum) | 2054 lb / 932 kg |
