D500 GC (60 Hz)
- Bore
- 5.4 in / 137 mm
- Stroke
- 6.8 in / 171 mm
- Displacement
- 928 in³ / 15.2 l

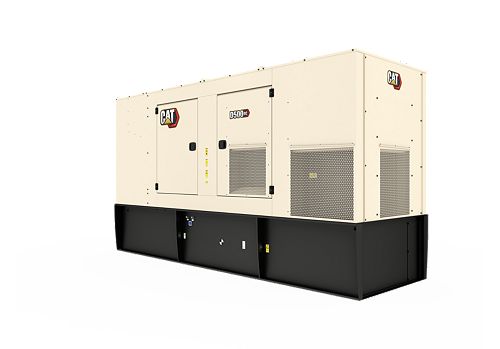

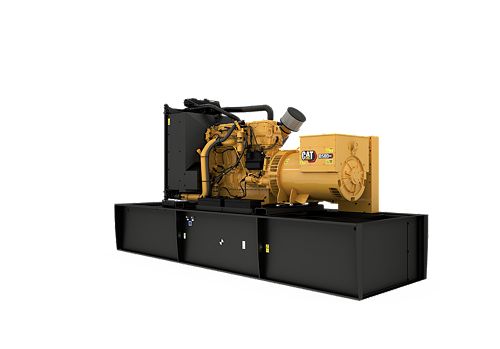

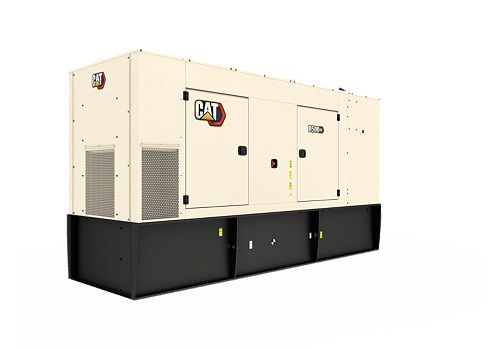

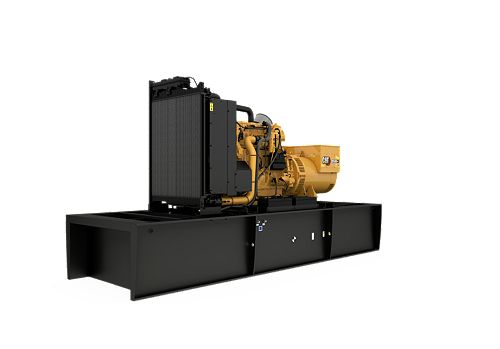

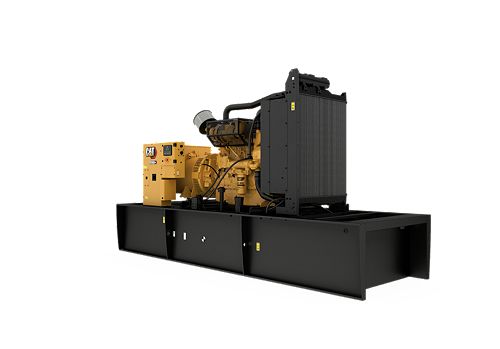

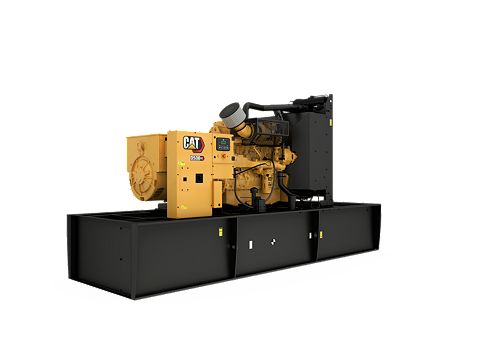

The D500 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 500 ekW at 60 Hz, meeting ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. The engines are certified for U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards).
| Generator Set Specifications | |
|---|---|
| Maximum Rating | 500 ekW |
| Minimum Rating | 500 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency |
| Voltage | 480 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 RPM |
| Duty Cycle | Standby |
| Engine Specifications | |
|---|---|
| Engine Model | Cat® C15 In-line 6, 4-cycle diesel |
| Bore | 5.4 in / 137 mm |
| Stroke | 6.8 in / 171 mm |
| Displacement | 928 in³ / 15.2 l |
| Compression Ratio | 16.1:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | ADEM™A4 |
| Generator Set Dimensions | |
|---|---|
| Length - Maximum | 189.6 in / 4815 mm |
| Width - Maximum | 64.2 in / 1630 mm |
| Height - Minimum | 2034 in / 80.1 mm |
| Height - Maximum | 101.7 in / 2584 mm |
| Dry Weight - Genset (minimum) | 8280.6 lb / 3756 kg |
| Dry Weight - Genset (maximum) | 10346.3 lb / 4693 kg |
