XQ2280 Tier 4 Final
- Width - Without Chassis
- 96 in / 2438 mm
- Height - Without Chassis
- 2896 mm / 114 in
- Length - Without Chassis
- 576 in / 14630 mm

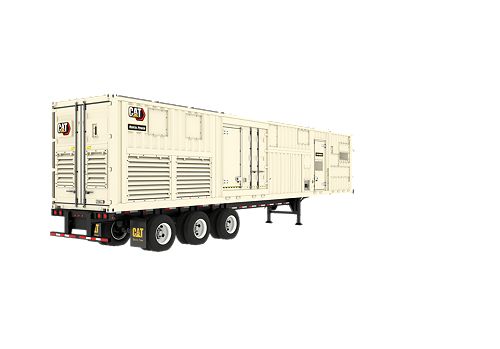

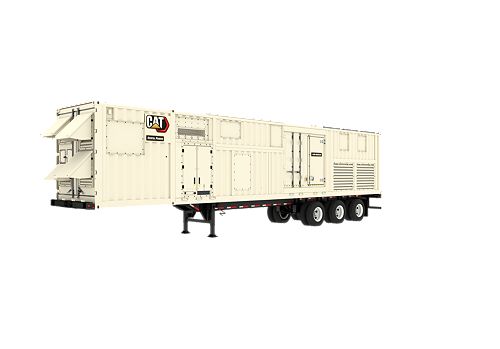

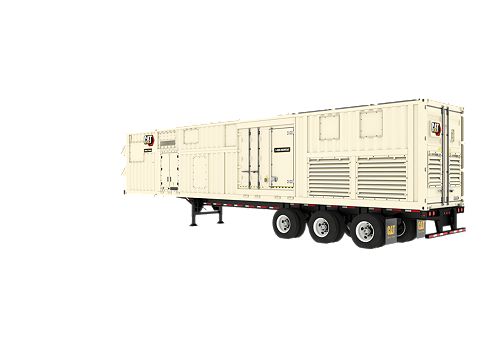

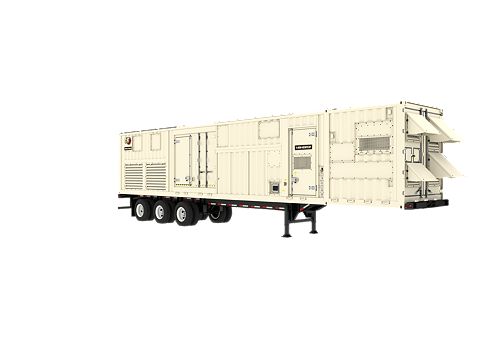

The Cat® XQ2280 rental power module extends the line of Cat Rental Power offerings that meet U.S. EPA Tier 4 Final emission standards.
Driven by the Cat 3516C engine, the Cat XQ2280 power module provides up to 2 MW of standby power or 1825 kW of prime power.
The XQ2280 is equipped with an enhanced control system, designed to reduce installation and startup time.
Advanced product autonomy and monitoring capabilities reduce on-site manpower support requirements, minimize operator exposure to hazards, and permit site performance and maintenance data to be conveniently viewed, archived, and analyzed.
This module is ideal in a stand-alone environment, combined with dozens of units in a power plant solution, or supporting utility systems worldwide.
The Cat XQ2280 is suited for data centers, healthcare facilities, municipal infrastructure, wastewater treatment plants and other utilities, mining and quarry sites, and other large-scale applications.
| Generator Set | |
|---|---|
| Rating Prime | 1825 ekW (2280 kVA) |
| Frequency | 60 Hz |
| Voltage | 480/277 V |
| Fuel/Emissions Strategy | U.S. EPA Tier 4 Final |
| Rating Standby | 2000 ekW (2500 kVA) |
| Engine | |
|---|---|
| Engine | Cat® 3516C |
| Fuel | Diesel |
| Dimensions | |
|---|---|
| Width - Without Chassis | 96 in / 2438 mm |
| Height - Without Chassis | 2896 mm / 114 in |
| Length - Without Chassis | 576 in / 14630 mm |
| Weight - Without Chassis, With Lube Oil and Coolant | 82000 lb / 37195 kg |
