3516E
- Maximum Power
- 2100 hp / 1566 kW
- Maximum Torque
- 8275 lb-ft @ 1200 rpm / 11220 Nm @ 1200 rpm
- Minimum Power
- 2100 hp / 1566 kW

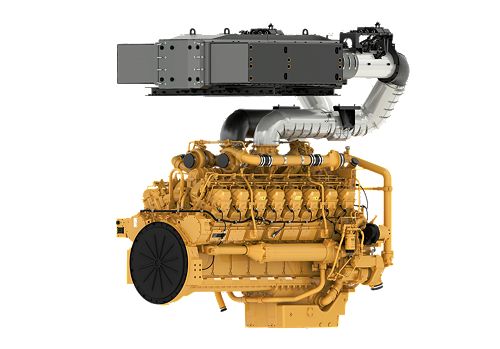

The Cat?? 3516E industrial diesel engine is offered at a continuous rating of 1566 kW (2100 hp) @ 1650 rpm and is designed for applications that require continuous heavy-duty service. These engines are capable of being operated at maximum power and speed up to 100% of the time without interuption or load cycling.
| Power Rating | |
|---|---|
| Maximum Power | 2100 hp / 1566 kW |
| Maximum Torque | 8275 lb-ft @ 1200 rpm / 11220 Nm @ 1200 rpm |
| Rated Speed | 1650 rpm |
| Minimum Power | 2100 hp / 1566 kW |
| Emission Standards | |
|---|---|
| Emissions | U.S. EPA Tier 4 Final, EU Stage V |
| General | |
|---|---|
| Engine Configuration | V-16 |
| Bore | 6.7 in / 170 mm |
| Stroke | 8.5 in / 215 mm |
| Displacement | 4760 in³ / 78 l |
| Compression Ratio | 16.5:1 |
| Aspiration | Turbocharged Aftercooled (TTA) |
| Combustion System | MEUI |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | SCR |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 122.2 in / 3105 mm |
| Width | 63.6 in / 1616 mm |
| Height | 83 in / 2108 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 18025 lb / 8176 kg |
| Aftertreatment Dimensions | |
|---|---|
| Length | 92.5 in / 2350 mm |
| Width | 79.1 in / 2008 mm |
| Height | 31.9 in / 809 mm |
| Weight | 2378 lb / 1079 kg |
