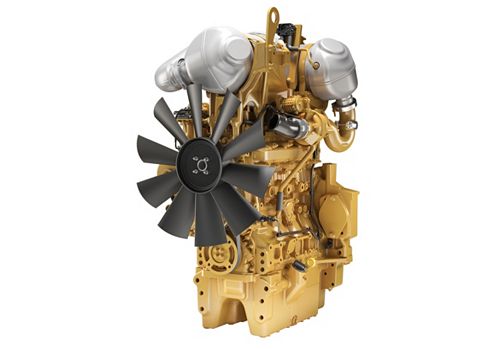

C3.6 for Tractors

Emission Standards
Emissions	U.S. EPA & CARB Tier 4 Final, EU Stage V

General
Engine Configuration	In-Line 4
Bore	3.9 in / 98 mm
Stroke	4.7 in / 120 mm
Displacement	220 in³ / 3.6 l
Compression Ratio	17.0:1
Aspiration	Turbocharged-Aftercooled (TA)
Combustion System	Direct Injection
Rotation from Flywheel End	Counterclockwise
Aftertreatment	DOC+DPF or DOC+DPF+SCR

Engine Dimensions - Approximate
Length	26.8 in / 667 mm
Width	22.2 in / 564 mm
Height	33.7 in / 855 mm
Weight - Net Dry - Basic Operating Engine Without Optional Attachments	840 lb / 381 kg

Control System
- Starter motor (12V)
- Alternator (12V)
- Electronic Control Unit (chassis mounted)
- Engine control sensors and robust wiring harness
- Data interface via CANbus SAE J1939
Flywheels and Flywheel Housing
- Agricultural back plate for transmission mounting
- Choice of flywheel to match industry common hydraulic pumps and transmissions
- Side PTO with SAE A or SAE B interface
Fuel System
- Fuel filter – chassis mounted
- With water sensor
Lube System
- Lubricating oil filters
- High incline oil pan – 25° continuous in all directions
General
- Cold start capability to -25° C (-13° F) with standard equipment
- Paint: Caterpillar yellow, with optional colors available at request
U.S. EPA Tier 4 Final, EU Stage V Aftertreatment/ Clean Emissions Control Equipment
- Diesel Oxidation Catalyst (DOC) and Diesel Particulate Filter (DPF)
- Selective Catalytic Reduction (SCR) (not required <56 kW)
