C27

Maximum Power
950 HP / 709 kW
Maximum Torque
3211 lb-ft @ 1200 rpm / 4354 Nm @ 1200 rpm
Minimum Power
800 HP / 597 kW

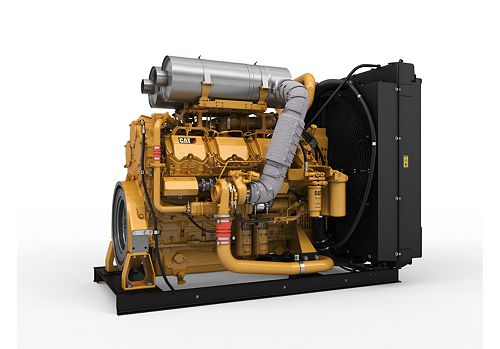

The Cat® C27 Industrial Power Unit is offered in ratings ranging from 597-783 bkW (800-1050 bhp)@ 1800 rpm. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Loan Calculator Credit Application
Build & Quote
alt 1
Power Rating
Maximum Power 950 HP / 709 kW
Maximum Torque 3211 lb-ft @ 1200 rpm / 4354 Nm @ 1200 rpm
Rated Speed 1800 rpm
Minimum Power 800 HP / 597 kW
Emission Standards
Emissions U.S. EPA Tier 4 Final, EU Stage V
General
Engine Configuration V-12, 4-Stroke-Cycle Diesel
Bore 5.7 in / 137.2 mm
Stroke 6 in / 152.4 mm
Displacement 1649.5 in³ / 27 l
Compression Ratio 16.0:1
Aspiration Twin Turbocharged-Aftercooled (TTA)
Rotation from Flywheel End Counterclockwise
Aftertreatment DOC

Standard Equipment

  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
    • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)
  • Control System
    • Electronic control system
    • Over-foam wiring harness
    • Automatic altitude compensation
    • Power compensated for fuel temperature
    • Remote fan control
    • Configurable software features
    • Engine monitoring system SAE J1939 broadcast and control
    • Integrated Electronic Control Unit (ECU)
  • Cooling System
    • Thermostats and housing, vertical outlet
    • Centrifugal water pump
    • Guidance on cooling system design available through your dealer to ensure equipment reliability
  • Flywheels and Flywheel Housing
    • Choice of SAE No. 0 or SAE No. 1 flywheel housing
    • Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).
  • Fuel System
    • MEUI injection
    • Primary fuel filter
    • Secondary fuel filters
    • Fuel transfer pump
    • Electronic fuel priming
  • Lube System
    • Open crankcase ventilation system
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Oil dipstick
    • Gear driven oil pump
    • Choice of front, rear or center sumps
    • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)
  • Power Take Off (PTO)
    • SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
  • General
    • Paint: Caterpillar yellow, with optional colors available at request
  • U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/ Clean Emissions Control Equipment
    • Cat Regeneration System
    • Aftertreatment information applies to ratings from 429-522 bkW (575-700 bhp)
    • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
    • Aftertreatment Electronic Control Unit (ECU)
    • NOx Reduction System (NRS)
    • Pump Electronic Control Unit (PETU)
    • Selective Catalytic Reduction (SCR)
    • Available in 12V or 24V systems
