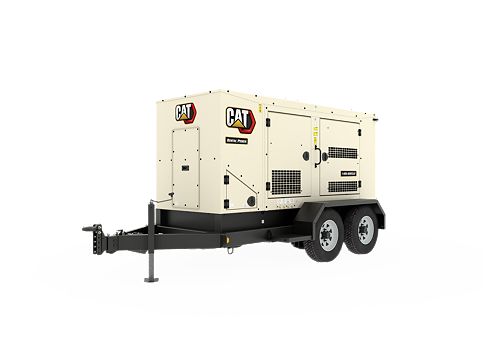

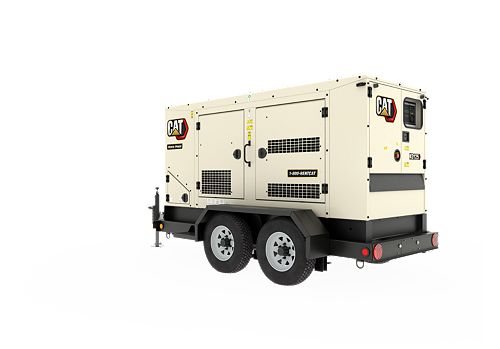

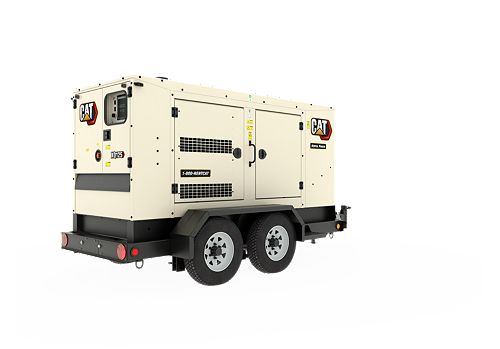

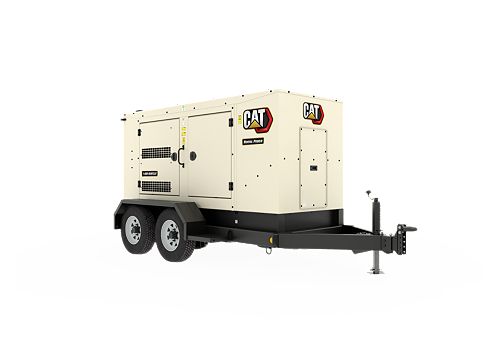

XQ125 Tier 4 Final

Height - Without Trailer
73 in / 1858 mm
Length - Without Trailer
127 in / 3222 mm
Width - Without Trailer
49 in / 1244 mm

The Cat XQ125 is powered by a C 4.4 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.

Generator Set
Rating Prime 100 ekW (125 kVA)
Frequency 60 Hz
Voltage 120 - 600V
Rating Standby 110 ekW (137 kVA)
Engine
Engine Cat C4.4
Fuel Diesel
Dimensions
Height - Without Trailer 73 in / 1858 mm
Length - Without Trailer 127 in / 3222 mm
Width - Without Trailer 49 in / 1244 mm
Weight with Lube Oil and Coolant, Without Trailer 5230 lb / 2372 kg
Fuel Consumption
100% Load 60Hz 7.5 gal/hr / 28.4 l/hr
75% Load 60Hz 5.51 gal/hr / 20.9 l/hr
50% Load 60Hz 3.8 gal/hr / 14.4 l/hr
100% Load 60Hz 8.3 gal/hr / 31.3 l/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ Prime Rating 65 dB(A)
Sound Power @ 7 meters (23 feet) @ Standby Rating 66 dB(A)

Standard Equipment

  • CAT C4.4 Diesel Engine
    • Heavy-duty.
      Turbocharged.
      After treatment.
  • Generator
    • LC3114F frame.
  • Control Panel
    • XQCP dgital set mounted controller.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge.
      Filled from factory.
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • 24hr dual wall fuel tank with 3 way directional valve for external supply.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank.
      Lifting frame and 4 point lift.
      Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
