C13 (60 Hz)

Bore
5.12 in / 130 mm
Stroke
6.18 in / 157 mm
Displacement
762.8 in³ / 12.5 l

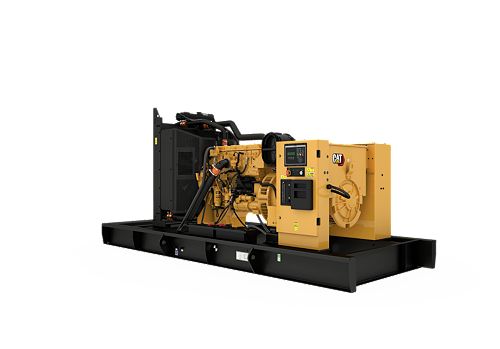

The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 320 to 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption Emissions / Fuel Strategy.

Loan Calculator Credit Application
Build & Quote
alt 1
Electric Power Ratings Guide DE350SE0 60 Hz 438 kVA, Non Certified Emissions Spec Sheet DE400SE0 60 Hz 500 kVA, Non Certified Emissions Spec Sheet C13, 350 - 400 ekW Spec Sheet
Generator Set Specifications
Maximum Rating 400 ekW
Minimum Rating 320 ekW
Emissions/Fuel Strategy Low Fuel Consumption
Voltage 380 to 415 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby, Prime
Engine Specifications
Engine Model C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Bore 5.12 in / 130 mm
Stroke 6.18 in / 157 mm
Displacement 762.8 in³ / 12.5 l
Compression Ratio 16.3:1
Aspiration Air to Air Aftercooled
Fuel System MEUI
Governor Type Adem™A4
Generator Set Dimensions
Length - Maximum 186.7 in / 4743 mm
Width - Maximum 79.3 in / 2014 mm
Height - Maximum 84 in / 2133 mm

Standard Equipment

  • Air Inlet System
    • Aftercooler core
    • Air cleaner; light duty with disposable paper filter
    • Turbocharger
  • Control Panel
    • GCCP 1.3
  • Cooling System
    • Caterpillar extended life coolant
    • Coolant drain line with valve
    • Fan drive, battery charging alternator drive
    • Radiator and cooling fan with guard
  • Exhaust System
    • Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
  • Fuel System
    • Base, formed steel with single wall integral 8-hour fuel tank
    • Standard open set fuel tank/base supplied
  • Generator and Attachments
    • Segregated low voltage (AC/DC) wiring panel
    • Power center, IP22
    • Integrated voltage regulator (IVR)
    • Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
    • A Frame generator - IP21 Protection
    • Optional LC Frame generator - IP23 Protection
  • Governing System
    • Cat electronic governor (ADEM A4)
  • Packaged Generator Set
    • Service indicator
    • Radiator package mounted
    • Low coolant level sensor
    • Coolant drain line with valve
    • Coolant level sight gauge
    • Disposable air filter
  • Lube System
    • Lubricating oil
    • Oil drain valves
    • Oil cooler
  • Mounting System
    • Captive linear vibration isolators between base and engine-generator
    • Includes lifting provisions and termination points for coolant and lube oil drain lines
  • Starting / Charging System
    • 24V battery with rack and cables
  • General
    • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

  • European Certificates
    • EU Certificate of Conformance (CE)
    • Global Certification for CIS
  • Air Inlet System
    • Single element air cleaner
    • Dual element air cleaner
  • Circuit breakers
    • 4 Pole (IEC-100% rated) Circuit breaker
    • Circuit breaker (IEC) Auxiliary contacts
    • 4 Pole (IEC-100% rated) Circuit breaker - Motorised
    • Padlockable circuit breaker device
    • Power terminal strip
    • Shunt trip for IEC circuit breaker
    • 3 Pole (IEC-100% rated) Circuit breaker
    • 3 Pole (IEC-100% rated) Circuit breakers - Motorised
  • Control Panels
    • GCCP 1.4
    • Local alarm modules: Local annunciator
    • Volt free contacts
    • Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
    • Remote annunciator module
  • Cooling System
    • Stone guards
    • Radiator duct flange
    • Low coolant temperature alarm
  • Enclosures
    • Sound attenuated enclosures
    • High ambient sound attenuated enclosures
  • Exhaust System
    • 6 and 8 inch elbow kit
    • Flexible 8 inch exhaust fittings
    • 6 and 8 inch flange GP
    • Mufflers - End in/end out
    • 10, 25 and 35 dBA attenuation
  • Fuel System
    • Manual fuel transfer pump
    • Integral dual wall fuel tank base
    • Fuel transfer system controls
  • Generator and Attachments
    • Permanent magnet excitation (PMG) generator
    • LC frame generator
    • LC CIP generator
    • A Frame CIP generator
    • A Frame oversize generator
    • Ingress protection
    • Space heaters
  • Lube System
    • Manual sump pump
  • Mounting System
    • Narrow skid base
  • starting / Charging System
    • 5 Amp single Battery charger
    • Jacket water heater
    • Battery disconnect switch

Switchgear and Paralleling Controls

Generator switchgear controls, protects and isolates electrical equipment. Our paralleling switchgear is available in low-voltage, medium-voltage, and high-voltage configurations to automatically start, synchronize and parallel generators with the load.

Model Configuration Modes of Operation Application
Emergency Transfer Load Manager (EXL) Wall mounted paralleling control system that monitors and controls a single generator and a single utility. Utility Import, Export, and base load operations, Peak shaving, and Emergency Standby. Closed Transition to/from Generator Power LV and MV (208V-32kV)

Enclosures

Model Length Height Width
C13 Sound Attenuated Enclosure 50 and 60 Hz 4930 mm 2221 mm 1620 mm
C13, C15, C18 WP Enclosure. 350-600 kW 60 Hz 2320 - 3209 mm 4948 - 7271 mm 2014 - 2056 mm
C13, C15, C18 SA enclosure. 350-600 kW 60 Hz C13 - 5461 mm, C15 - 4948 mm, C18 - 5187 mm C13, C15 & C18 - 2014 mm C13 - 2743 mm, C15 - 2619 mm, C18 - 2561 mm
