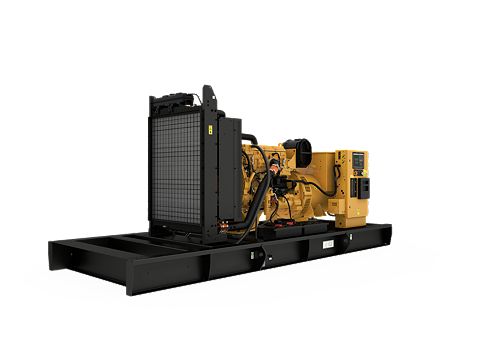

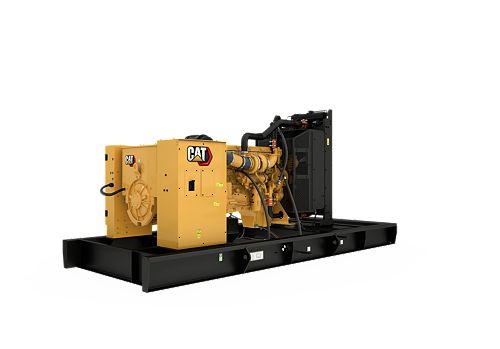

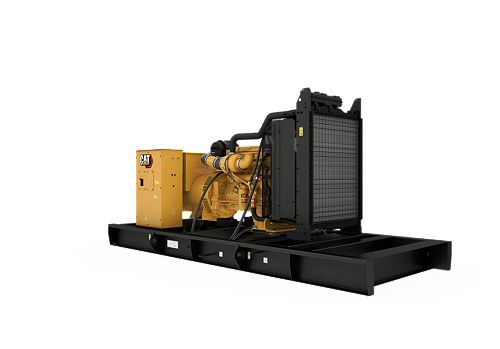

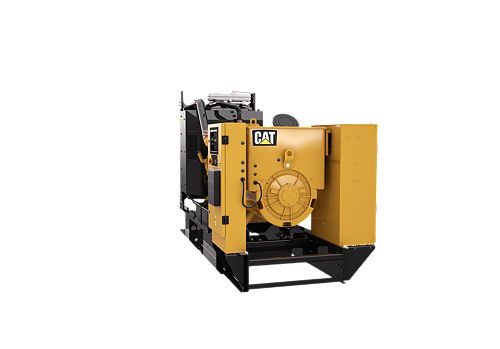

C13 (60 Hz)

Bore: 5.12 in / 130 mm
Stroke: 6.2 in / 157 mm
Displacement: 763 in³ / 12.5 B

The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 320 to 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption Emissions / Fuel Strategy.

Loan Calculator Credit Application

Build & Quote

Electric Power Ratings Guide C13 60 Hz 350 ekW, Tier III Non-Road Emissions Spec Sheet C13 60 Hz 400 ekW, Tier III Non-Road Emissions Spec Sheet 350 - 400 ekW Spec Sheet

Specifications
Equipment
Related Products

Generator Set Specifications
Maximum Rating	400 ekW
Minimum Rating	320 ekW
Emissions/Fuel Strategy	EPA Stationary Emerg Use
Voltage	208 to 600 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby, Prime

Engine Specifications
Engine Model	C13 ACERT In-line 6, 4-cycle diesel
Bore	5.12 in / 130 mm
Stroke	6.2 in / 157 mm
Displacement	763 in³ / 12.5 B
Compression Ratio	16.3:1
Aspiration	Turbocharged Air to Air Aftercooled
Fuel System	MEUI
Governor Type	Adem™A4

Generator Set Dimensions
Length - Maximum	186.7 in / 4743 mm
Width - Maximum	79.3 in / 2014 mm
Height - Maximum	84 in / 2133 mm

Standard Equipment

Air Inlet System
- Turbocharger
- Aftercooler core
- Air cleaner; light duty with disposable paper filter
Starting / Charging
- Charging alternator
- 24 Volt electric starting motor
Control Panel
- GCCP 1.3
Control System Controller
- GCCP 1.3
Cooling System
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Coolant drain line with valve
- Radiator and cooling fan with guard
Certification
- EPA stationary emergency use
Exhaust System
- Stainless steel exhaust flex, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Base / Fuel Tank
- Audio and visual fuel alarm
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Protection
- Safety shutoff - Overspeed
- Safety shutoff - Low oil pressure
- Safety shutoff - High water temperature
Generator and Attachments
- Segregated low voltage (AC/DC) wiring panel
- Power center, IP22
- A Frame generator - IP21 Protection
- Integrated voltage regulator (IVR)
- Optional LC Frame generator - IP23 Protection
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Oil cooler
- Oil drain valves
- Lubricating oil
Mounting System
- Includes lifting provisions and termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

European Certificates
- Global Certification for CIS
- EU Certificate of Conformance (CE)
Air Inlet System
- Single element air cleaner
- Dual element air cleaner
Circuit breakers
- Padlockable circuit breaker device
- 3 Pole (IEC-100% rated) Circuit breaker
- Shunt trip for IEC circuit breaker
- 4 Pole (IEC-100% rated) Circuit breaker - Motorised
- Circuit breaker (IEC) Auxiliary contacts
- 4 Pole (IEC-100% rated) Circuit breaker
- Power terminal strip
- 3 Pole (IEC-100% rated) Circuit breakers - Motorised
Control Panels
- Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; Overload shutdown via breaker ; Low fuel level alarm ; Low fuel level shutdown ; High fuel level alarm ; Fuel level sensor
- GCCP 1.4
- Volt free contacts
- Local alarm modules: Local annunciator
- Remote annunciator module
Cooling System
- Radiator duct flange
- Stone guards
- Low coolant temperature alarm
Enclosures
- Sound attenuated enclosures
- High ambient sound attenuated enclosures
Exhaust System
- Flexible 8 inch exhaust fittings
- Mufflers - End in/end out
- 10, 25 and 35 dBA attenuation
- 6 and 8 inch elbow kit
- 6 and 8 inch flange GP
Fuel System
- Fuel transfer system controls
- Manual fuel transfer pump
- Integral dual wall fuel tank base
Generator and Attachments
- LC frame generator
- LC CIP generator
- Space heaters
- Ingress protection
- A Frame oversize generator
- Permanent magnet excitation (PMG) generator
- A Frame CIP generator
Lube System
- Manual sump pump
Mounting System
- Narrow skid base
starting / Charging System
- Battery disconnect switch
- Jacket water heater
- 5 Amp single Battery charger

Switchgear and Paralleling Controls

Generator switchgear controls, protects and isolates electrical equipment. Our paralleling switchgear is available in low-voltage, medium-voltage, and high-voltage configurations to automatically start, synchronize and parallel generators with the load.

Model	Configuration	Modes of Operation	Application
Emergency Transfer Load Manager (EXL)	Wall mounted paralleling control system that monitors and controls a single generator and a single utility.	Utility Import, Export, and base load operations, Peak shaving, and Emergency Standby. Closed Transition to/from Generator Power	LV and MV (208V-32kV)

Enclosures

Model	Length	Height	Width

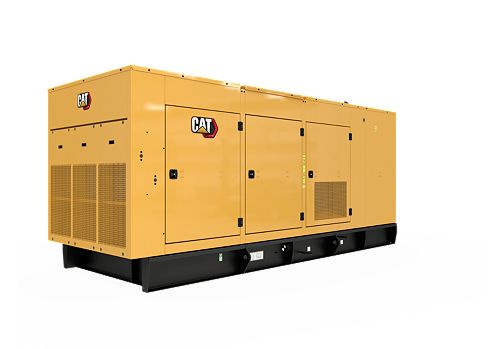

C13 Sound Attenuated Enclosure 50 and 60 Hz	4930 mm	2221 mm	1620 mm
C13, C15, C18 WP Enclosure. 350-600 kW 60 Hz	2320 - 3209 mm	4948 - 7271 mm	2014 - 2056 mm

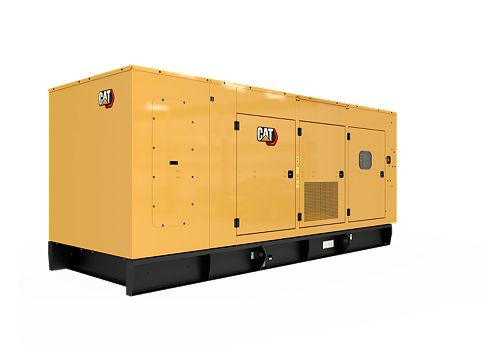

C13, C15, C18 SA enclosure. 350-600 kW 60 Hz	C13 - 5461 mm, C15 - 4948 mm, C18 - 5187 mm	C13, C15 & C18 - 2014 mm	C13 - 2743 mm, C15 - 2619 mm, C18 - 2561 mm
