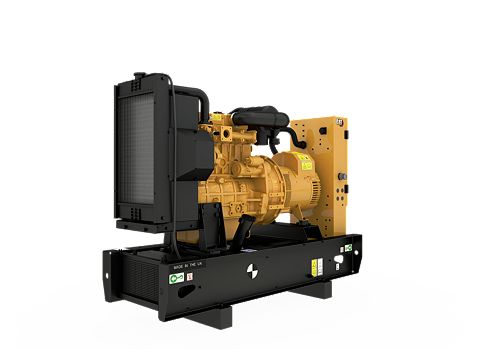

C1.5 (60 Hz)

Bore: 3.3 in / 84 mm
Stroke: 3.5 in / 90 mm
Displacement: 91.3 in³ / 1.5 l

Producing reliable power from 12 to 13.2 ekW at 60 Hz, our C1.5 diesel generator sets designed to ISO 8528-5 transient response requirements. All C1.5 generator sets are R96/EUIIIa equivalent emissions compliant.

Loan Calculator Credit Application

Build & Quote

Electric Power Ratings Guide DE11E3S 50 Hz 11.0 kVA, 60 Hz 13.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet DE13.5E3 50 Hz 13,5 kVA, 60 Hz 16.5 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet DE11E3S 50 Hz 11.0 kVA, 60 Hz 13.0 kVA, LC Frame, EU IIIA Compliant Emissions Spec Sheet DE13.5E3 50 Hz 13.5 kVA, 60 Hz 16.5 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet

Specifications
Equipment
Related Products

Generator Set Specifications
Maximum Rating	13.2 ekW
Minimum Rating	12.0 ekW
Emissions/Fuel Strategy	R96/EUIIIa Equivalent
Voltage	110 to 415 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby, Prime

Engine Specifications
Engine Model	Cat® C1.5
Bore	3.3 in / 84 mm
Stroke	3.5 in / 90 mm
Displacement	91.3 in³ / 1.5 l
Compression Ratio	22.5:1
Aspiration	Naturally Aspirated
Fuel System	Indirect Injection
Governor Type	Mechanical

Generator Set Dimensions
Length - Maximum	55.1 in / 1400 mm
Width - Maximum	24.4 in / 90 mm
Height - Maximum	41.5 in / 1054 mm

Standard Equipment

Air Inlet System
- Air cleaner; light duty with disposable element
Control Panel
- GCCP 1.3
Cooling System
- Radiator and cooling fan with guards
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
Exhaust System
- Stub pipe, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Generators and Generator Attachments
- Voltage regulator (single phase sensing)
- IP23 Protection
- Segregated low voltage (AC/DC) wiring panel
- Tower panel, IP22, bottom cable entry
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- 12 Leads
Governing System
- Mechanical governing system
Lube System
- Oil drain line with valve
- Lubricating oil
Mounting System
- Captive linear vibration isolators between base and engine-generator
- includes lifting provisions and termination points for coolant
Starting / Charging System
- 12 Volt battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Alternator Options
- Coastal insulation protection
Certificates
- Global certification for CIS
- European upgrade to STD set for CE certificate
Circuit breakers
- Padlockable breaker device
- 4 Pole Circuit breaker
Control Panel Options
- Emergency stop with key
- Volt free contacts for genset running
- Battery charger
- Volt free contacts for common alarm
- GCCP 1.3
Cooling System
- Coolant heater
Enclosures

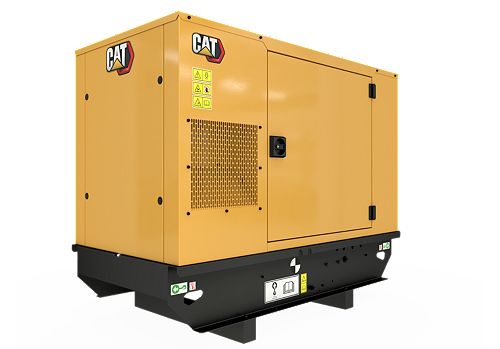

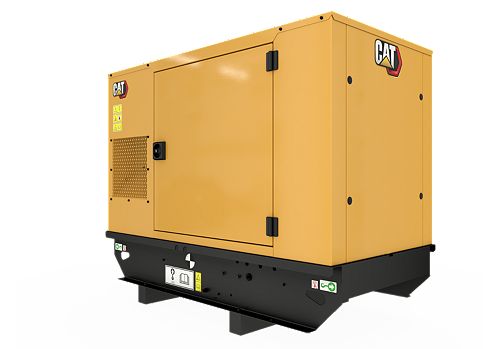

- Sound attenuated enclosure (GALV)
- Single point lift for enclosure
Fuel System
- Low fuel level alarm
- DEFRA bunded fuel tank
- 1000 Hr extended service interval
- Fuel transfer control
- Skidbase for open sets
- Base feet
- Skidbase for enclosures
Mounting Options
- Silencer installation kit
- Industrial silencer removal
- Battery removal
Special Test and Inspection
- PGS Test report @ 1.0 power factor
General
- Packing case - canopied set
- Packing Case - compact set
- Radiator stone guard

Enclosures

Model	Width	Length	Height
6.8-22 kVA SA Enclosure	876 mm	1704 mm	1268 mm
