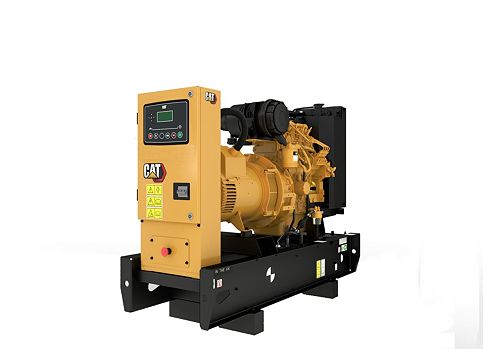

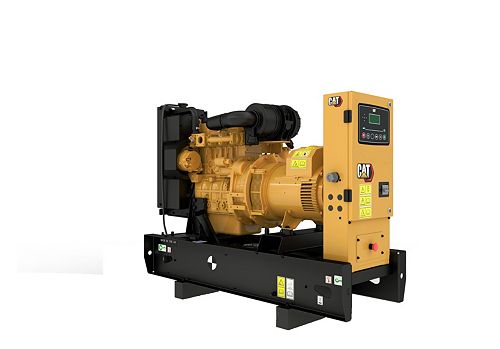

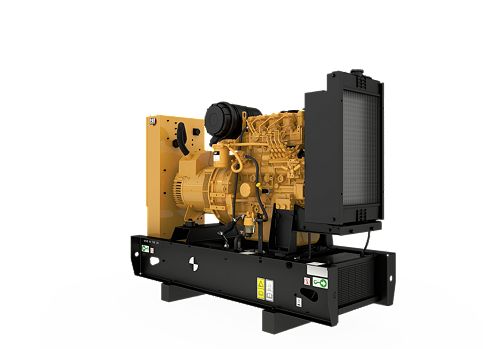

C2.2 (60 Hz)

Bore: 3.3 in / 84 mm
Stroke: 3.9 in / 100 mm
Displacement: 135.2 in³ / 2.2 l

Producing reliable power from 15.5 to 20.0 ekW at 60 Hz, our C2.2 diesel generator sets designed to ISO 8528-5 transient response requirements. All C2.2 generator sets are R96/EUIIIa equivalent emissions compliant.

Loan Calculator Credit Application

Build & Quote

Electric Power Ratings Guide DE14E3S 50 Hz 14.0 kVA, 60 Hz 17.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet DE13.5E3 50 Hz 18.0 kVA, 60 Hz 22.0 kVA, M Frame, EU IIIA Compliant Emissions Spec Sheet DE22E3 50 Hz 22.0 kVA, 60 Hz 25.0 kVA, M Frame, EU IIIA Emissions Compliant Spec Sheet DE14E3S 50 Hz 14.0 kVA, 60 Hz 17.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet DE16E3S 50 Hz 16.5 kVA, 60 Hz 19.4 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet DE18E3 50 Hz 18.0 kVA, 60 Hz 22.0 kVA, LC Frame, EU IIIA Emissions Compliant Spec Sheet DE22E3 50 Hz 22.0 kVA, 60 Hz 25.0 kVA, M Frame, EU IIIA Emissions Compliant Spec Sheet C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet C1C2 Diesel Generator Set, 6.8 - 22 kVA, 50/60 Hz Spec Sheet

Specifications
Equipment
Related Products

Generator Set Specifications
Maximum Rating	20.0 ekW
Minimum Rating	15.5 ekW
Emissions/Fuel Strategy	R96/EUIIIa Equivalent
Voltage	110 to 415 Volts
Frequency	60 Hz
Speed	1800 rpm
Duty Cycle	Standby, Prime

Engine Specifications
Engine Model	Cat® C2.2, In-line 4, 4-cycle diesel
Bore	3.3 in / 84 mm
Stroke	3.9 in / 100 mm
Displacement	135.2 in³ / 2.2 l
Compression Ratio	22.5:1
Aspiration	Naturally Aspirated
Fuel System	Indirect Injection
Governor Type	Mechanical

Generator Set Dimensions
Length - Maximum	59.1 in / 1500 mm
Width - Maximum	24.4 in / 620 mm
Height - Maximum	43.9 in / 1115 mm

Standard Equipment

Air Inlet System
- Air cleaner; light duty with disposable element
Control Panel
- GCCP 1.3
Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Coolant drain line with valve
Exhaust System
- Stub pipe, gaskets, raincap & SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 8-hour fuel tank
Generators and Generator Attachments
- IP23 Protection
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- 12 Leads
- Segregated low voltage (AC/DC) wiring panel
- Voltage regulator (single phase sensing)
- Tower panel, IP22, bottom cable entry
Governing System
- Mechanical governing system
Lube System
- Oil drain line with valve
- Lubricating oil
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant
Starting / Charging System
- 12 Volt battery with rack and cables
General
- Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Alternator Options
- Coastal insulation protection
Certificates
- Global certification for CIS
- European upgrade to STD set for CE certificate
Circuit breakers
- 4 Pole Circuit breaker
- Padlockable breaker device
Control Panel Options
- Volt free contacts for common alarm
- Battery charger
- Volt free contacts for genset running
- Emergency stop with key
- GCCP 1.3
Cooling System
- Coolant heater
Enclosures
- Single point lift for enclosure
- Sound attenuated enclosure (GALV)
Fuel System
- Skidbase for enclosures
- Skidbase for open sets
- 1000 Hr extended service interval
- DEFRA bunded fuel tank
- Fuel transfer control
- Base feet
- Low fuel level alarm
Mounting Options
- Silencer installation kit
- Industrial silencer removal
- Battery removal
Special Test and Inspection
- PGS Test report @ 1.0 power factor
General
- Packing case - compact set
- Radiator stone guard
- Packing case - canopied set

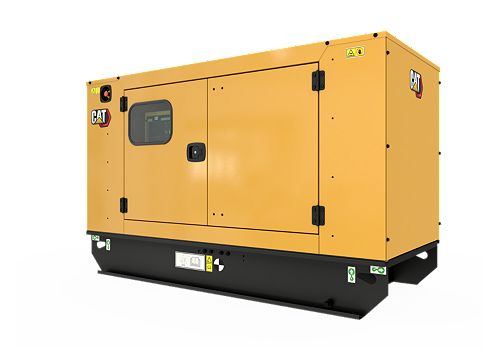

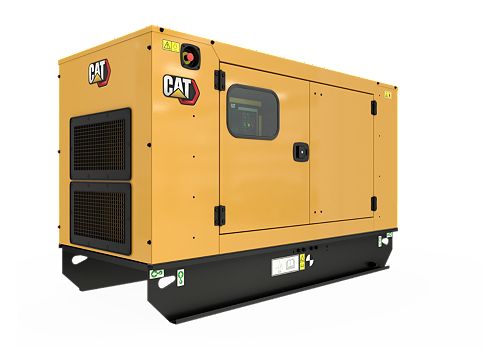

Enclosures

Model	Width	Length	Height
6.8-22 kVA SA Enclosure	876 mm	1704 mm	1268 mm
