C18
- Bore
- 5.7 in / 145 mm
- Stroke
- 7.2 in / 183 mm
- Height
- 94.8 in / 2408 mm

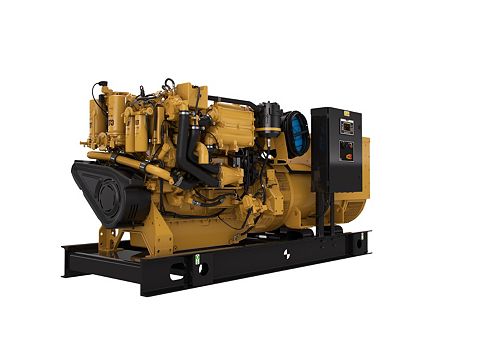

The C18 is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings.
| Power Rating | |
|---|---|
| Power Range | 260 - 565 ekW |
| Generator Set Specifications | |
|---|---|
| Frequency | 50 / 60 |
| Minimum Rating | 260 ekW (325 kVA) |
| Maximum Rating | 565 ekW (706 kVA) |
| Engine Specifications | |
|---|---|
| Configuration | In-line 6, 4-Stroke-Cycle Diesel |
| Aspiration | Turbocharged - Aftercooled |
| Bore | 5.7 in / 145 mm |
| Stroke | 7.2 in / 183 mm |
| Fuel System | MEUI |
| Oil Change Interval | 250 / 500 hours |
| Governor | Electronic |
| Refill Capacity | 68 |
| Cooling | Heat Exchanger, Keel, Radiator Cooled |
| Rotation from Flywheel End | SAE No. (136 teeth) |
| Generator Set Configurations | |
|---|---|
| Emissions | EPA Tier 3, IMO II, EU IWW, EU Stage V, China II |
| Generator Set Dimensions - Radiator Cooled | |
|---|---|
| Height | 94.8 in / 2408 mm |
| Length | 55.6 in / 4741 mm |
| Width | 66.9 in / 1699 mm |
| Weight - Approximate | 13396 lb / 6076 kg |
| Generator Set Dimensions - Keel and Hex Cooled | |
|---|---|
| Length | 119.6 in / 3038 mm |
| Height | 64.9 in / 1648 mm |
| Width | 55.6 in / 1411 mm |
| Weight - Approximate | 9747 lb / 4221 kg |
| Generator Specifications | |
|---|---|
| Excitation | SRMP |
| Insulation | Class H |
| IP Rating | IP23 (standard), IP 44 (optional) |
| Voltage Regulator | CDVR (Digital Voltage) |
