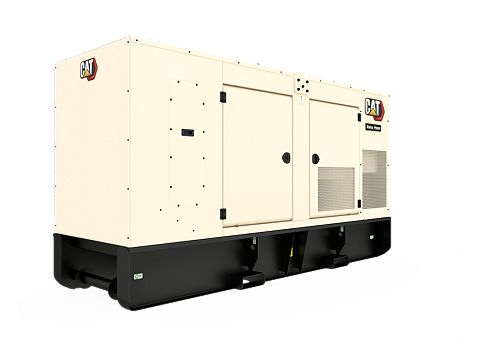

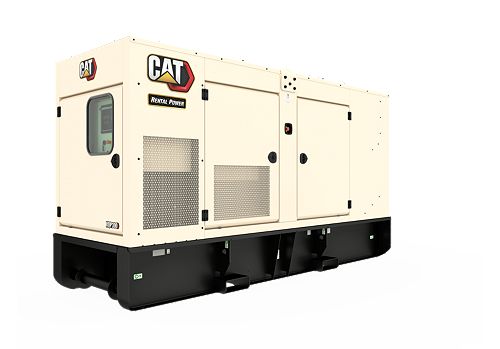

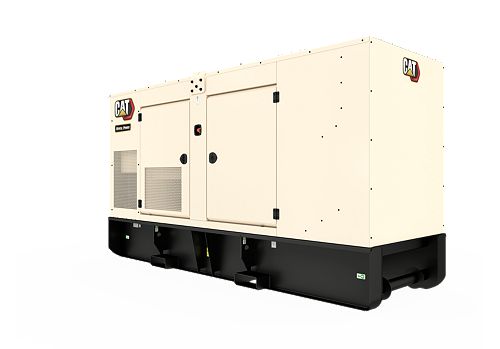

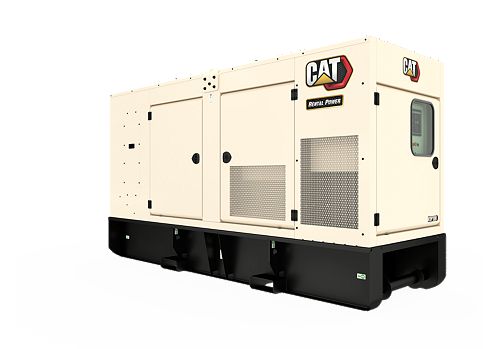

XQP300

Width
55 in / 1400 mm
Height
84 in / 2124 mm
Length
160 in / 4065 mm

This fuel-optimized rental power product is ideal for customers interested in consuming the least amount of fuel. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Generator Set
Rating Prime 300 kVA
Frequency 50/60 Hz
Voltage 127 - 480 V
Engine
Engine Cat C9
Fuel Diesel
Dimensions
Width 55 in / 1400 mm
Height 84 in / 2124 mm
Length 160 in / 4065 mm
Weight - With Lube Oil and Coolant 8553 lb / 3880 kg
Fuel consumption Best Fuel Efficiency
100% Load 50Hz 16.5 gal/hr / 62.5 l/hr
100% Load 60Hz 19.4 gal/hr / 73.5 l/hr
75% Load 50Hz 12.5 gal/hr / 47.3 l/hr
75% Load 60Hz 14.7 gal/hr / 55.8 l/hr
50% Load 50Hz 8.9 gal/hr / 33.8 l/hr
50% Load 60Hz 10.6 gal/hr / 40.1 l/hr

Standard Equipment

  • CAT C9 Diesel Engine
    • Turbo charged.
  • Generator
    • LC5114N frame.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory.
  • Charging / Starting System
    • 24V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • Dual wall fuel tank with 3 way directional valve for external supply.
  • Control Panel
    • Digital EMCP4.2B set mounted controller.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
