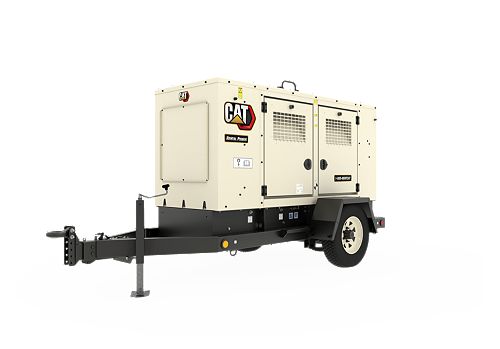

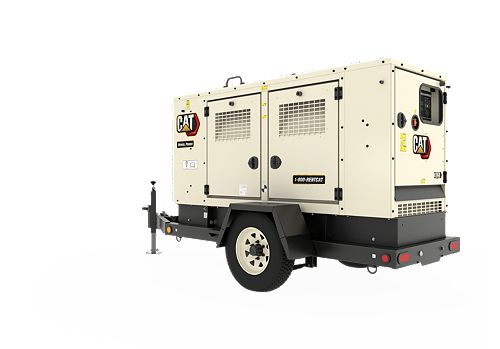

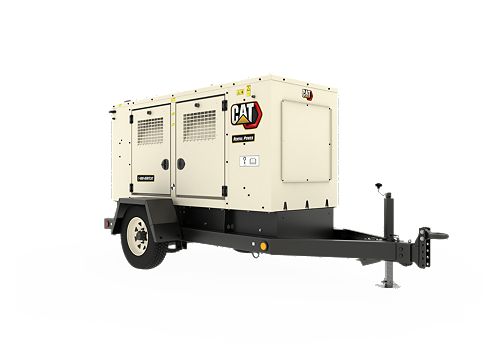

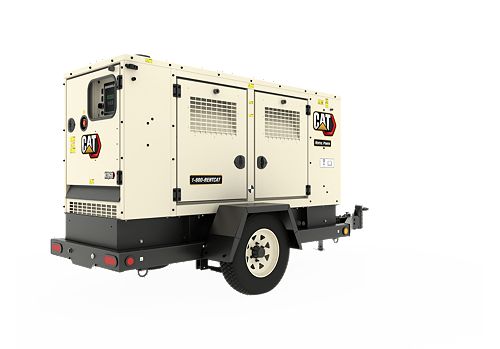

XQ60 Tier 4 Final

Height - Without Trailer
65.3 in / 1658 mm
Length - Without Trailer
106.5 in / 2705 mm
Width - Without Trailer
41.3 in / 1049 mm

With a robust, rental-ready construction, the XQ60 is designed to be easily transported around project sites safely and efficiently. A smaller footprint saves space and provides installation versatility on worksites. The XQ60 is capable of 500-hour oil change intervals, which likewise increases uptime, lowers maintenance costs and consumes fewer parts and oil making it friendlier for the environment.

Generator Set
Rating Prime 47.5 ekW (60 kVA)
Frequency 60 Hz
Voltage 120 - 600V
Engine
Engine Cat C3.4
Fuel Diesel
Dimensions
Height - Without Trailer 65.3 in / 1658 mm
Length - Without Trailer 106.5 in / 2705 mm
Width - Without Trailer 41.3 in / 1049 mm
Weight with Lube Oil and Coolant, Without Trailer 1305 kg / 2877 lb
Fuel Consumption
100% Load 60Hz 3.7 gal/hr / 13.9 l/hr
75% Load 60Hz 2.8 gal/hr / 10.5 l/hr
50% Load 60Hz 1.9 gal/hr / 7.1 l/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ All Ratings 63 dB(A)

Standard Equipment

  • CAT C3.4B Diesel Engine
    • Heavy-duty.
      After treatment.
  • Generator
    • 1514P frame.
  • Control Panel
    • XQCP dgital set mounted controller.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge.
      Filled from factory.
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • 24hr dual wall fuel tank with 3 way directional valve for external supply.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank.
      Lifting frame and 4 point lift.
      Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
