C3.6
- Maximum Power
- 121 hp / 90 kW
- Maximum Torque
- 369 lb-ft @ 1500 rpm / 500 Nm @ 1500 rpm
- Minimum Power
- 74 hp / 55 kW

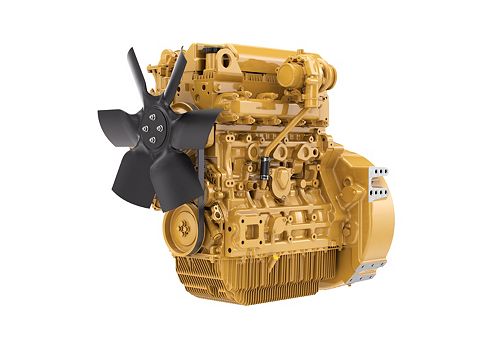

The Cat?? C3.6 Industrial Diesel Engines offer the perfect balance of compact size, reliability, and performance. This engine is offered in ratings ranging up to 90 bkW (121 bhp) @ 2400 rpm. The C3.6 is designed to meet the needs of many industries and applications, including agricultural tractors, aircraft ground support, bore/drill rigs, chippers/grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.
| Power Rating | |
|---|---|
| Maximum Power | 121 hp / 90 kW |
| Maximum Torque | 369 lb-ft @ 1500 rpm / 500 Nm @ 1500 rpm |
| Rated Speed | 2200-2400 rpm |
| Minimum Power | 74 hp / 55 kW |
| Emission Standards | |
|---|---|
| Emissions | UN ECE R96 Stage IIIA, Brazil MAR-1 |
| General | |
|---|---|
| Engine Configuration | Inline 4, 4-Stroke-Cycle Diesel |
| Bore | 3.9 in / 98 mm |
| Stroke | 4.7 in / 120 mm |
| Displacement | 220 in³ / 3.6 l |
| Compression Ratio | 17.0:1 |
| Aspiration | Turbocharged Aftercooled (TA) |
| Combustion System | Direct Injection |
| Rotation from Flywheel End | Counterclockwise |
| Aftertreatment | - |
| Engine Dimensions - Approximate | |
|---|---|
| Length | 26.3 in / 667 mm |
| Width | 22.2 in / 564 mm |
| Height | 31 in / 787 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 840 lb / 381 kg |
