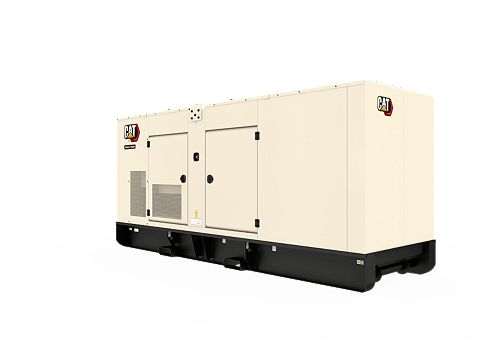

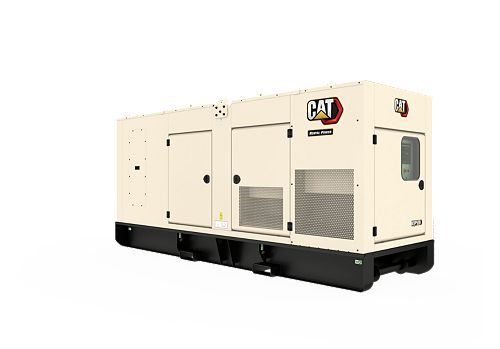

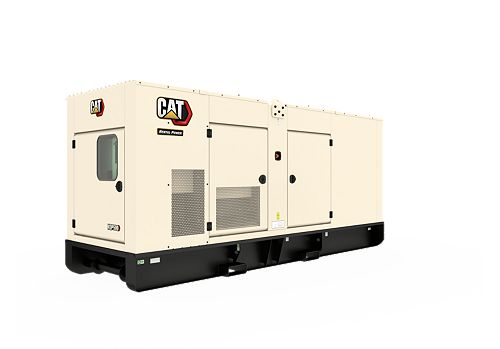

XQP500

Width
77 in / 1954 mm
Height
90 in / 2292 mm
Length
200.9 in / 5103 mm

This XQP500 generator set is fuel consumption optimized. A unique feature is the introduction of clutch fan drive technology, where the fan no longer needs to runs continuously at full speed and power. This saves additional fuel, while also lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures, or most importantly, in evenings when noise levels are most noticeable.

Generator Set
Rating Prime 500 kVA
Frequency 50/60 Hz
Voltage 127 - 480 V
Engine
Engine Cat C15
Fuel Diesel
Dimensions
Width 77 in / 1954 mm
Height 90 in / 2292 mm
Length 200.9 in / 5103 mm
Weight - With Lube Oil and Coolant 13176 lb / 5977 kg
Fuel Consumption EU Stage IIIA
100% Load 50Hz 29.1 gal/hr / 110.2 l/hr
100% Load 60Hz 32 gal/hr / 121 l/hr
75% Load 50Hz 23 gal/hr / 86.8 l/hr
75% Load 60Hz 26.3 gal/hr / 99.7 l/hr
50% Load 50Hz 16.4 gal/hr / 62 l/hr
50% Load 60Hz 18.3 gal/hr / 69.2 l/hr
Fuel consumption Best Fuel Efficiency
100% Load 50Hz 29 gal/hr / 102 l/hr
100% Load 60Hz 28.3 gal/hr / 107 l/hr
75% Load 50Hz 20.1 gal/hr / 76.2 l/hr
75% Load 60Hz 22 gal/hr / 83 l/hr
50% Load 50Hz 14.3 gal/hr / 54 l/hr
50% Load 60Hz 15.7 gal/hr / 59.3 l/hr
Noise rating (with enclosure) EU Stage IIIA
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 77.5 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 79.8 dB(A)
Noise rating (with enclosure) Best Fuel Efficiency
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 80.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 80 dB(A)

Standard Equipment

  • CAT C15 Diesel Engine
    • Turbo charged.
  • Generator
    • LC6114F frame.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory.
  • Charging / Starting System
    • 24V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • Dual wall fuel tank with 3 way directional valve for external supply.
  • Control Panel
    • Digital EMCP4.2B set mounted controller.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
