C9.3B

Maximum Power
456 HP / 340 kW
Maximum Torque
1540 lb-ft @ 1400 rpm / 2088 Nm @ 1400 rpm
Minimum Power
335 HP / 250 kW

The Cat® C9.3B Industrial Diesel Power Unit is offered in ratings ranging from 250-340 kW (335-456 hp) @ 1800-2200 rpm and meet U.S. EPA Tier 4 Final, EU Stage V emission, China Nonroad Stage IV, Japan 2014 (Tier 4 Final) and Korea Stage V standards. Conveniently pre-configured for a wide range of applications, the Cat® Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

Loan Calculator Credit Application
Build & Quote
alt 1

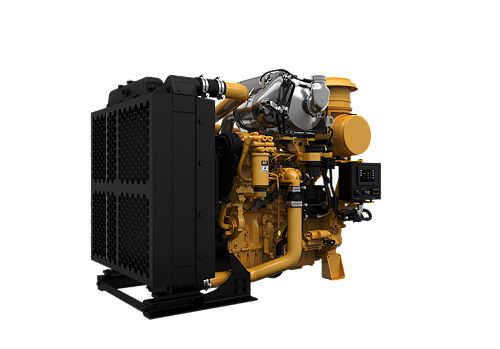

C9.3B industrial power unit
Power Rating
Maximum Power 456 HP / 340 kW
Maximum Torque 1540 lb-ft @ 1400 rpm / 2088 Nm @ 1400 rpm
Rated Speed 1800-2200 rpm
Minimum Power 335 HP / 250 kW
Emission Standards
Emissions EU Stage V, U.S. EPA Tier 4 Final, Korea Stage V, Japan 2014 (Tier 4 Final) and China Nonroad IV
General
Engine Configuration Inline 6, 4-Stroke-Cycle-Diesel
Bore 4.5 in / 115 mm
Stroke 5.9 in / 149 mm
Displacement 567.5 in³ / 9.3 l
Compression Ratio 17.0:1
Aspiration Turbocharged Aftercooled (TA)
Rotation from Flywheel End Counterclockwise
Aftertreatment DOC+DPF+SCR
Power Unit Dimensions
Length 83 in / 2110 mm
Width 43 in / 1100 mm
Height 68.5 in / 1741 mm
Weight 3563 lb / 1616 kg
Aftertreatment Dimensions
Width 34.3 in / 870 mm
Height 22.4 in / 570 mm
Weight 468 lb / 212 kg
Aftertreatment Dimensions*
Diameter 13 in / 330 mm

Standard Equipment

  • Air Inlet System
    • Turbocharged
    • Air-to-Air Aftercooled
    • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), China Nonroad Stage IV and Korea Stage V)
  • Control System
    • Electronic control system
    • Over-foam wiring harness
    • Automatic altitude compensation
    • Power compensated for fuel temperature
    • Configurable software features
    • Engine monitoring system SAE J1939 broadcast and control
    • Integrated Electronic Control Unit (ECU)
    • Remote fan control
  • Cooling System
    • Vertical or RH thermostat outlet
    • Centrifugal water pump
    • Guidance on cooling system design available through your dealer to ensure equipment reliability
  • Flywheels and Flywheel Housing
    • Dual rear PTO configuration
    • Available SAE No. 1 power take off with optional SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) China Nonroad Stage IV and Korea Stage V
  • Fuel System
    • Electronic high pressure common rail
    • Primary fuel filter
    • Secondary fuel filters
    • Fuel transfer pump
    • Electronic fuel priming
  • Lube System
    • Open crankcase ventilation system
    • Oil cooler
    • Oil filler
    • Lube oil filter
    • Oil dipstick
    • Gear driven oil pump
    • Choice of front, rear or center sumps
    • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), China Nonroad IV, Korea Stage V)
  • Power Take Off (PTO)
    • SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
  • General
    • Vibration damper
    • Lifting eyes
  • U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/ Clean Emissions Control Equipment
    • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
    • Pump Electronic Control Unit (PETU)
    • Available in 12V or 24V systems
    • Selective Catalytic Reduction (SCR)
