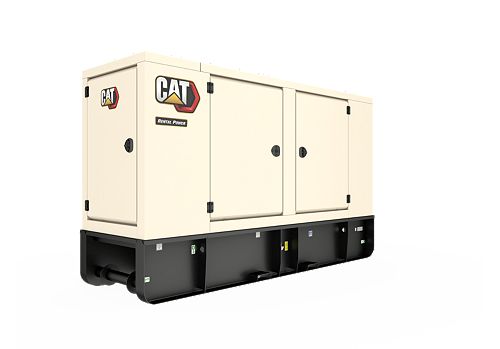

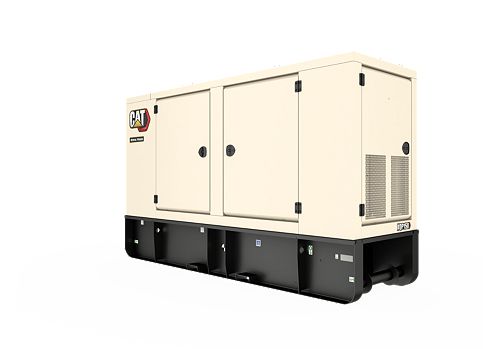

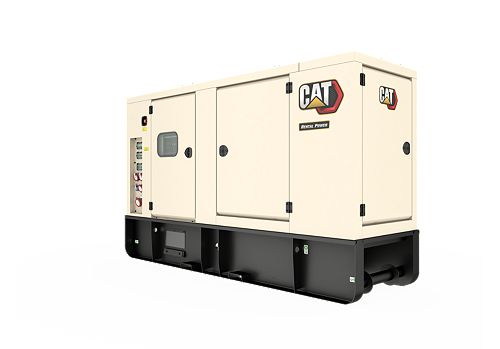

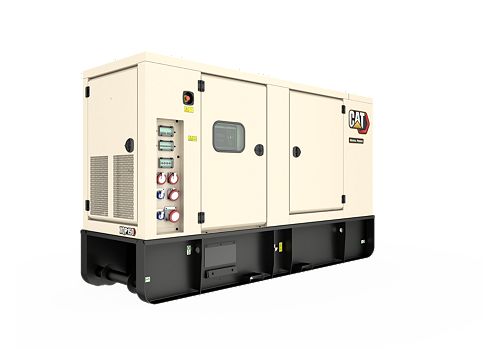

XQP150

Width
44.1 in / 1120 mm
Height
87.6 in / 2226 mm
Length
138.6 in / 3520 mm

This XQP150 generator set is fuel consumption optimized . Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Generator Set
Rating Prime 150 kVA
Frequency 50/60 Hz
Voltage 127 - 480 V
Engine
Engine Cat C7.1
Fuel Diesel
Dimensions
Width 44.1 in / 1120 mm
Height 87.6 in / 2226 mm
Length 138.6 in / 3520 mm
Weight - With Lube Oil and Coolant 5615 lb / 2547 kg
Fuel Consumption EU Stage IIIA
100% Load 50Hz 9.9 gal/hr / 37.5 l/hr
100% Load 60Hz 11.2 gal/hr / 42.3 l/hr
75% Load 50Hz 7.8 gal/hr / 29.6 l/hr
75% Load 60Hz 9.2 gal/hr / 34.7 l/hr
50% Load 50Hz 5.4 gal/hr / 20.3 l/hr
50% Load 60Hz 6.3 gal/hr / 23.8 l/hr
Fuel consumption Best Fuel Efficiency
100% Load 50Hz 8.8 gal/hr / 33.3 l/hr
100% Load 60Hz 10.5 gal/hr / 38.2 l/hr
75% Load 50Hz 6.5 gal/hr / 24.7 l/hr
75% Load 60Hz 7.7 gal/hr / 29.1 l/hr
50% Load 50Hz 4.3 gal/hr / 16.4 l/hr
50% Load 60Hz 5 gal/hr / 19.1 l/hr
Noise rating (with enclosure) EU Stage IIIA
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 73.1 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 76.4 dB(A)
Noise rating (with enclosure) Best Fuel Efficiency
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 74.7 dB(A)
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) 78.3 dB(A)

Standard Equipment

  • CAT C7.1 Diesel Engine
    • Turbo charged.
  • Generator
    • LC3114J frame.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge. Filled from factory.
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • 24hr dual wall fuel tank with 3 way directional valve for external supply.
  • Control Panel
    • Digital XQCP set mounted controller.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
