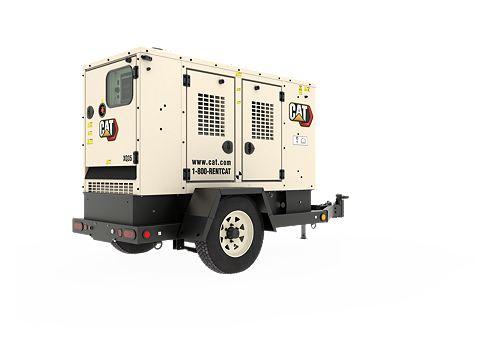

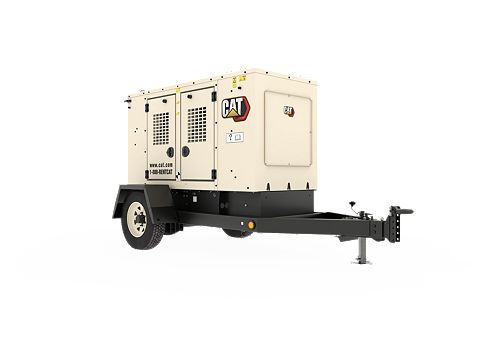

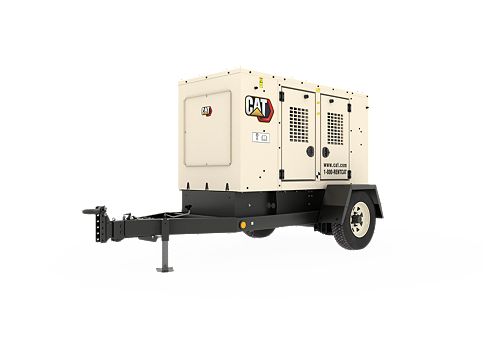

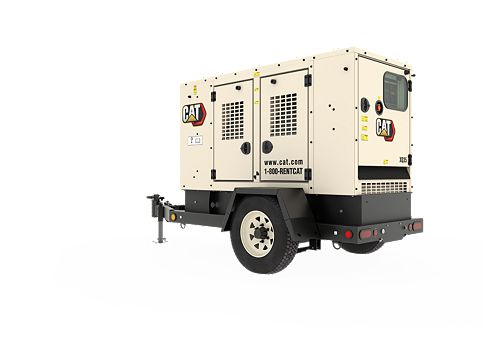

XQ35 Tier 4 Final

Height - Without Trailer
63.7 in / 1617 mm
Length - Without Trailer
91.3 in / 2318 mm
Width - Without Trailer
41.4 in / 1050 mm

With a robust, rental-ready construction, the XQ35 is designed to be easily transported around project sites safely and efficiently. A smaller footprint saves space and provides installation versatility on worksites, while a galvanized enclosure is resilient to potentially harsh environments.

Generator Set
Rating Prime 27 ekW (35 kVA)
Frequency 60 Hz
Voltage 120 - 600V
Rating Standby 30 ekW (38 kVA)
Engine
Engine Cat C2.2
Fuel Diesel
Dimensions
Height - Without Trailer 63.7 in / 1617 mm
Length - Without Trailer 91.3 in / 2318 mm
Width - Without Trailer 41.4 in / 1050 mm
Weight with Lube Oil and Coolant, Without Trailer 2215 lb / 1003 kg
Fuel Consumption
100% Load 60Hz 2.3 gal/hr / 8.8 l/hr
75% Load 60Hz 1.8 gal/hr / 6.7 l/hr
50% Load 60Hz 1.2 gal/hr / 4.4 l/hr
100% Load 60Hz 2.6 gal/hr / 9.8 l/hr
75% Load 60Hz 2 gal/hr / 7.4 l/hr
50% Load 60Hz 1.3 gal/hr / 4.9 l/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ All Ratings 63 dB(A)

Standard Equipment

  • CAT C2.2T Diesel Engine
    • Heavy-duty.
      After treatment.
  • Generator
    • 1514J frame.
  • Control Panel
    • XQCP dgital set mounted controller.
  • Cat Connect remote monitoring
    • Provides package monitoring and management.
  • Cooling System
    • Package mounted radiator with vertical air discharge.
      Filled from factory.
  • Charging / Starting System
    • 12V heavy duty starting motor and charging alternator c/w battery isolator.
  • Fuel System
    • 24hr dual wall fuel tank with 3 way directional valve for external supply.
  • Air Filter
    • Cyclonic/paper with dust cup and service indicator.
  • Distribution
    • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off.
  • Structure
    • Heavy Duty steel base frame with integral fuel tank.
      Lifting frame and 4 point lift.
      Base frame is wider than enclosure to protect generator set during transportation.
  • Enclosure
    • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance.
  • Exhaust
    • Integrated spark arresting silencer.
  • Lube Oil
    • On engine primary and secondary oil filters. Filled from factory.
  • General
    • Factory tested and inspected.
